62GB-56T-12-10SN |10 Pin Bayonet Straight Plug, Socket Contacts
Buy 62GB-56T-12-10SN: 10-pin miniature bayonet straight plug with socket contacts. MIL-DTL-26482 compliant. View specs, datasheet & stock online now.
999999 in stock
Share:
Product Categories
Request a Quote
Product Overview

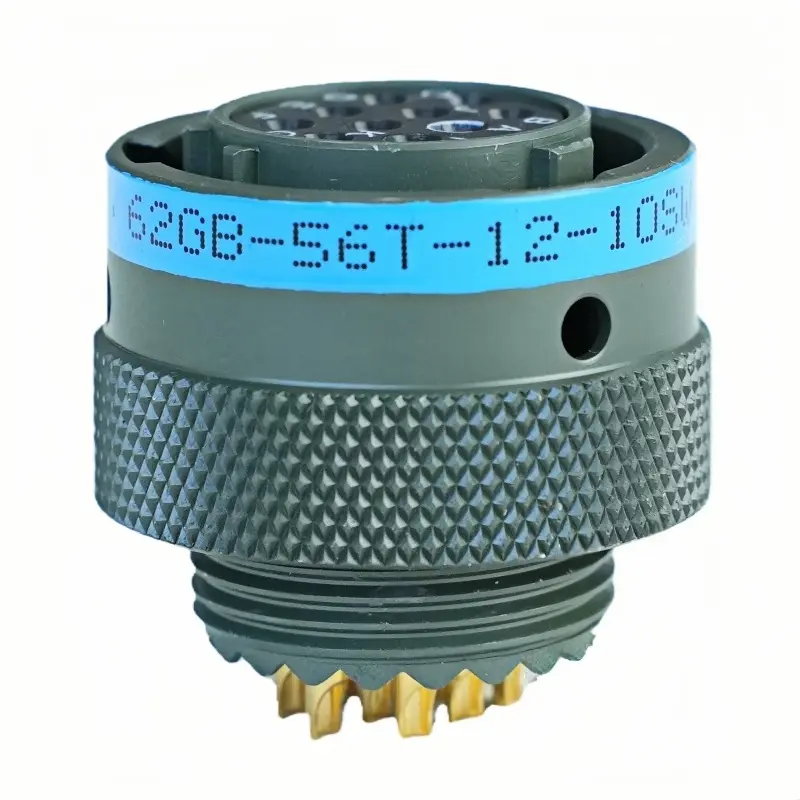

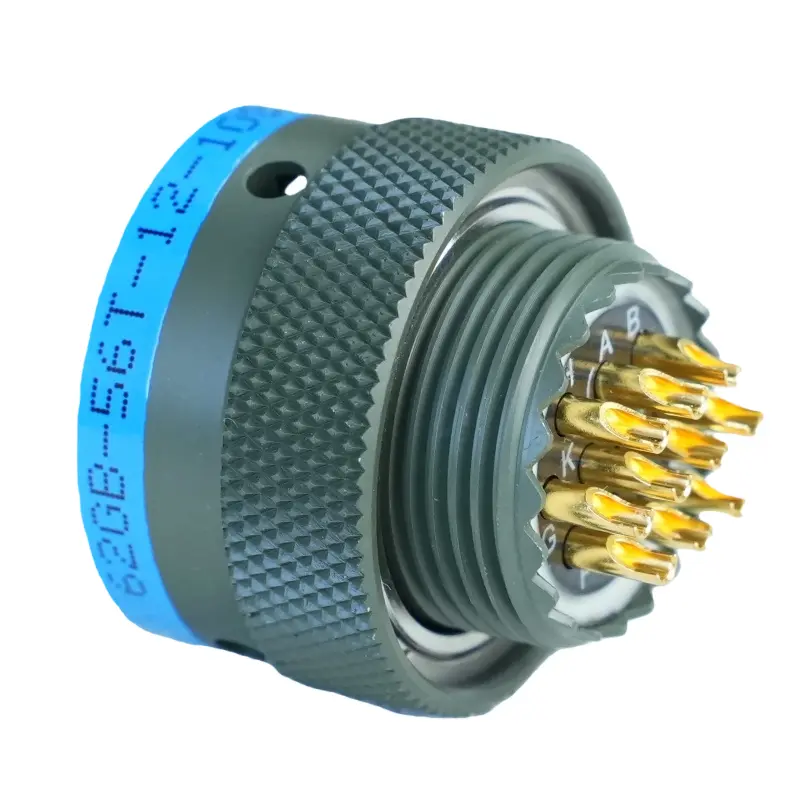

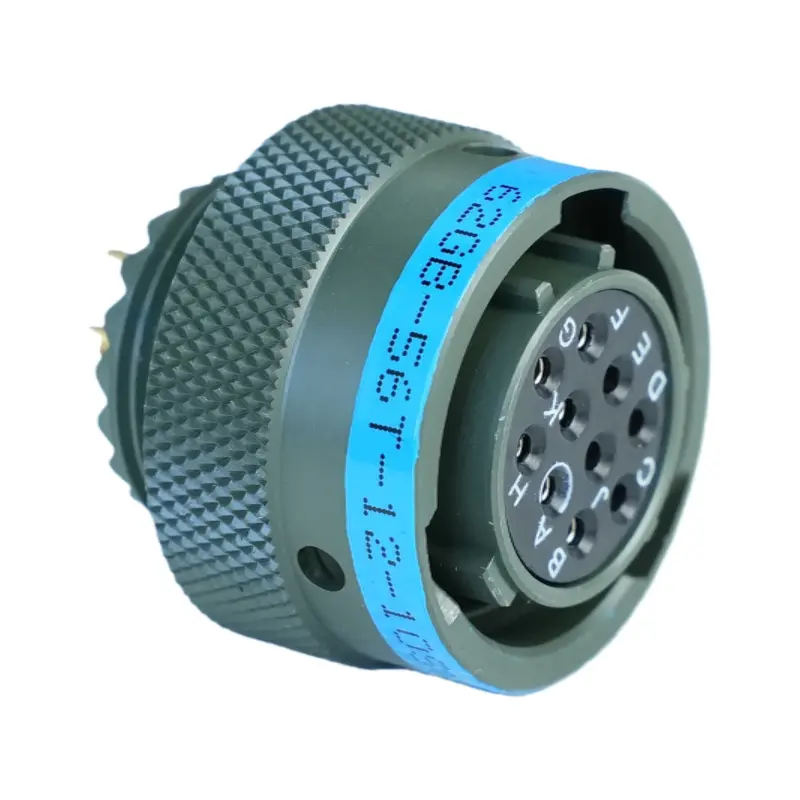

The 62GB-56T12-10SN is a circular connector from the 62GB Series, engineered as a high-reliability alternative to MIL-DTL-26482 Series I connectors. Designed for demanding military, aerospace, industrial, and transportation applications, this connector provides reliable performance in environments where resistance to vibration, moisture, dust, and temperature variations is essential.

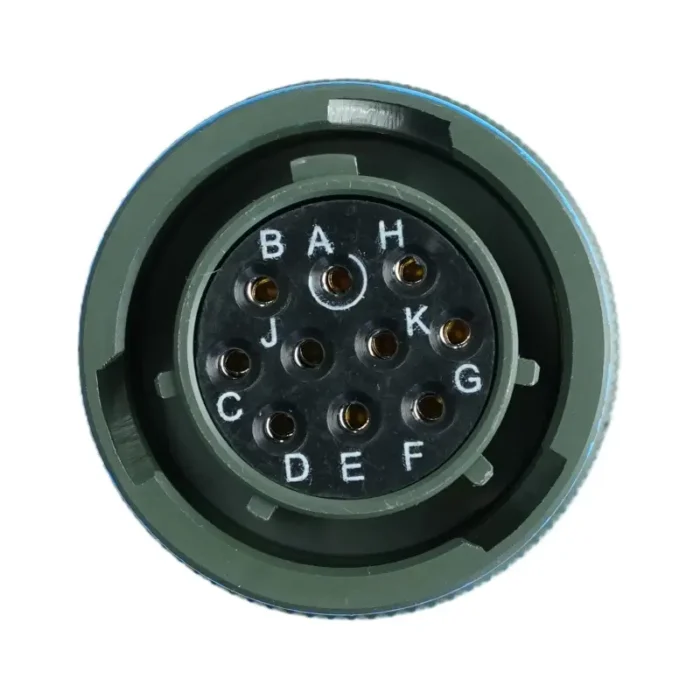

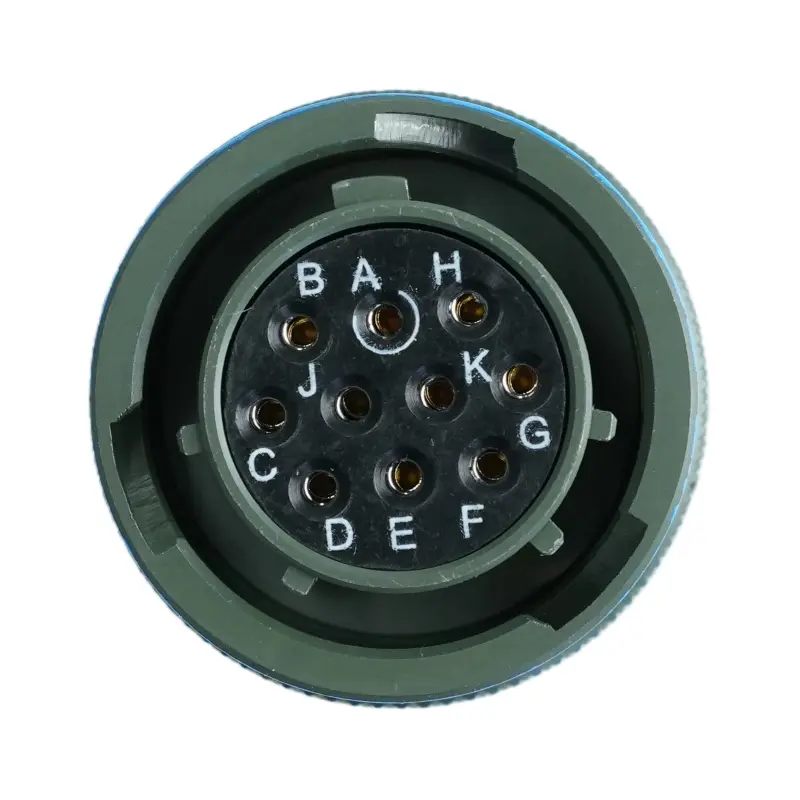

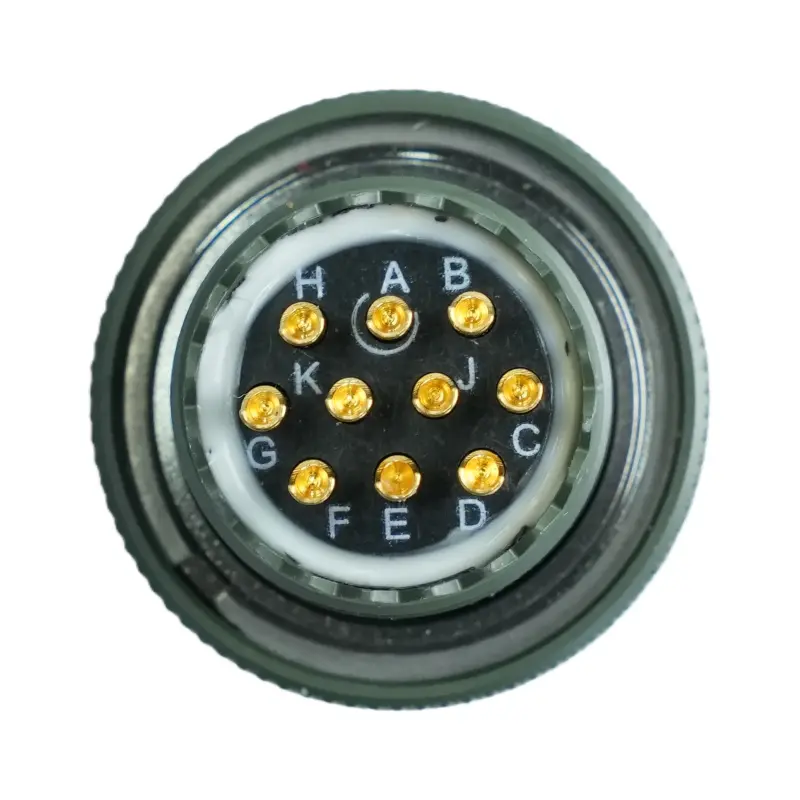

This part number designates a shell size 12 connector with a 10-contact insert arrangement in a socket (S) configuration. The 62GB Series features a bayonet coupling mechanism for fast and secure mating, environmental sealing to protect against harsh operating conditions, and durable shell finish options for enhanced corrosion resistance and long-term reliability. Its rugged construction makes it suitable for applications requiring dependable signal and power transmission under severe environmental stresses.
Part Number Breakdown
Stock & Availability
In Stock / Factory Lead Time
At AVIA Electronics, we understand that your project timelines depend on component reliability. To support your mission-critical operations, we maintain a proactive inventory strategy specifically optimized for the 62GB-56T12-10SN and our broader line of high-reliability connectors.
In-Stock (Ready to Ship): The 62GB-56T12-10SN is currently verified in our central facility. Orders placed for these items are processed and dispatched within 24–48 business hours, ensuring minimal downtime for your production or maintenance schedules.
Factory Lead Time: For large-volume requirements of the 62GB-56T12-10SN or items currently undergoing replenishment, we provide precise, project-specific lead times. We leverage our direct manufacturing partnerships to secure your allocation, offering transparent tracking from the production line to your facility.
Supply Assurance: We prioritize long-term supply stability for our clients. If you require scheduled deliveries, bulk kitting, or buffer stock of the 62GB-56T12-10SN for multi-phase projects, our logistics team is ready to coordinate a personalized supply plan aligned with your specific project milestones.
Multiple shell sizes available
The 62GB-56T12-10SN is part of the extensive 62GB Series platform, which is engineered for reliable performance across demanding military, aerospace, industrial, and transportation applications. We understand that your designs require consistency; therefore, our connector solutions are available in a comprehensive range of shell sizes and insert arrangements to ensure an exact mechanical fit for every application.
Full Spectrum of Configurations: While the 62GB-56T12-10SN represents a specific configuration, the wider 62GB Series product line is available in multiple shell sizes and contact arrangements. This allows engineers to scale their designs—from compact control interfaces to higher-density signal and power connection systems—without compromising on reliability.
Universal Interface Standards: The 62GB Series utilizes a standardized bayonet coupling mechanism, ensuring fast and secure mating across compatible configurations. This provides consistent installation procedures, reliable anti-decoupling performance, and simplified maintenance throughout your equipment architecture.
Precision Engineering: Regardless of the selected shell size or insert arrangement, each unit is manufactured to stringent quality standards. Our connectors undergo rigorous testing for environmental stress, including vibration exposure, temperature cycling, and moisture resistance, ensuring stable electrical performance and long-term reliability in demanding operating conditions.
Custom configurations supported
At AVIA Electronics, we recognize that off-the-shelf components may not always meet the unique demands of your high-performance systems. While the 62GB-56T12-10SN represents our standard high-reliability configuration, we offer extensive support for custom engineering to ensure our products integrate perfectly into your specific design architecture.
Bespoke Pin & Insert Arrangements: If your project requires a non-standard contact layout or a specific mix of power and signal contacts, we can facilitate customized insert arrangements while maintaining the reliable performance standards of the 62GB Series and meeting your exact electrical requirements.
Specialized Plating & Material Options: Beyond standard shell finishes, we support customized material selections and plating options—including enhanced corrosion-resistant treatments, EMI shielding solutions, and lightweight configurations—to meet the requirements of harsh operating environments.
Modified Shell Geometries: For space-constrained installations, we assist in sourcing or coordinating modified shell configurations, including custom mounting options, extended backshell solutions, and application-specific mechanical adaptations that help reduce assembly complexity.
Turnkey Kitting & Integration: We offer custom kitting services where we package the 62GB-56T12-10SN with application-specific accessories—such as protective covers, backshells, cable assemblies, or other connector accessories—ready for direct integration into your production line.
Sample Policy & Flexible Order Support
At AVIA Electronics, we provide premium, high-reliability interconnect solutions. To ensure the performance of the 62GB-56T12-10SN meets your precise engineering requirements, we offer a professional sampling service. We are committed to supporting innovation at every stage of your product lifecycle.
Sample Availability: We provide samples of the 62GB-56T12-10SN for engineering qualification and prototype testing. As these are high-performance military-grade components, a nominal sample fee applies to cover the material cost and individual handling. This ensures that you receive verified, defect-free parts that are representative of your final production batch.
No Minimum Order Quantity (No MOQ): We believe in supporting innovation regardless of scale. Whether you need a single unit for a critical repair or a small pilot batch for system integration, we operate with no minimum order quantity. You have the flexibility to procure exactly what your current phase requires without the burden of overstocking.
Streamlined Fulfillment: Our logistics team treats every sample order with the same rigor as bulk shipments. From the moment your sample request is processed, we ensure secure, industrial-grade packaging and rapid dispatch, helping you maintain your project momentum.
Logistics & Distribution Services
AVIA Electronics utilizes a reliable distribution framework to ensure the secure and accurate delivery of components to global destinations. Shipping options available for your order are calculated and displayed during the checkout process based on your specific requirements.
Supported Carriers & Services
We partner with established logistics providers to offer a range of delivery solutions:
Express Carriers: DHL, UPS, FedEx, SF Express
Postal & Standard Services: Belgium Post, Global Direct Standard Line, Registered Mail
Shipping Cost Calculation
Shipping charges are dynamically calculated at checkout to ensure accuracy. The final cost is determined by the following variables:
Package Weight: The total combined weight of the products and necessary protective packaging.
Service Selection: Costs vary depending on the chosen carrier and the selected service level (e.g., expedited express vs. standard delivery).
Destination: Rates are adjusted based on the specific country or region of delivery.
Technical Specifications
Basic Info.
|
Model NO. |
62GB-56T-12-10SN |
|---|---|
|
Application |
Industrial Automation |
|
Contact Material |
Copper |
|
Shell Material |
Aluminum alloy |
|
Shell Size |
12 |
|
Termination Style |
Solder |
|
Contact Plating |
Gold |
|
Transport Package |
Standard Expect Package |
|
Origin |
China |
|
Production Capacity |
100000 |
|
Certification |
ISO 9001, ISO 14001, ISO 45001, CE, RoHS, REACH, IP68, 500-Hour Salt Spray Tested |
|---|---|
|
Contact Resistance |
≤ 12.0(mΩ) |
|
Surface Treatment |
Olive green cadmium plating |
|
Processing and Customization |
OEM/ODM |
|
Shell Style |
Plug |
|
Mounting Style |
Plug |
|
Mating Style |
Triple-Start Threaded Coupling |
|
Grommet and seal |
Silicon rubber |
|
Endurance |
500 cycles |
|
Trademark |
AVIA |
|
HS Code |
8536901100 |
Packaging & Weight
|
Package Size |
41.00cm * 31.00cm * 30.00cm |
|---|---|
|
Package Gross Weight |
100g |
Mechanical Specifications
Vibration
|
Sine |
60g, with temperature cycling and simulated accessory (36 hours) |
|---|---|
|
Random |
44.1 grms in high temperature 49.5 grms in ambient temperature |
|
Shock |
At 3 ms half sinusoid, peak value of acceleration: 300g |
Contact Retention
|
22D# |
45N |
|---|---|
|
20# |
67N |
|
16# |
111N |
|
12# |
111N |
|
10# |
111N |
|
8 # |
111N |
Electrical Performance
Voltage rating (V)
|
Package Size |
M |
N |
I |
II |
|---|---|---|---|---|
|
Sea level |
1300 |
1000 |
1800 |
2300 |
|
21000M |
800 |
600 |
1000 |
1000 |
Contact resistance and rated current
|
Contact Size |
Diameter (mm) |
Resistance (mΩ) |
Current (A) |
|---|---|---|---|
|
22D# |
Φ 0.76 |
≤ 12.0 |
5.0 |
|
20# |
Φ 1.00 |
≤ 5.0 |
7.5 |
|
16# |
Φ 1.60 |
≤ 2.5 |
13.0 |
|
12# |
Φ 2.40 |
≤ 1.5 |
23.0 |
|
10# |
Φ 3.15 |
≤ 1.0 |
40.0 |
Environmental Performance
Operating temperature
|
W class |
-65 oC ~ +175 oC |
|---|---|
|
K, F class |
-65 oC ~ +200 oC |
Salt spray
|
F class |
48h |
|---|---|
|
W class |
500h |
|
K class |
1000h |
Typical Applications
- Military Communication
- Aerospace Systems
- UAV & Defense Electronics
- Industrial Automation
Cross-Reference & Mating
Compatible Brands & Mating
|
Brands |
Equivalents |
Mates |
|---|---|---|
|
Amphenol |
62GB-56T-12-10SN |
62GB-51T-12-10PN |
|
Souriau |
- |
- |
|
ITT Cannon |
- |
- |
|
Aero/Conesys |
- |
- |
|
Deutsch |
- |
- |
Compatible Backshells & Caps
|
Type |
Backshells |
Dust Caps |
|---|---|---|
|
Straight, Grommet Nut |
M85049/14-19S |
D38999/33K19N |
|
45°Quick Clamp |
M85049/15-19S |
|
|
90°Quick Clamp |
M85049/16-19S |
|
|
Straight, Spin Coupling Environmental EMI/RFI Backshell |
M85049/18-19S |
|
|
Straight, Spin Coupling Non-Environmental EMI/RFI Backshell |
M85049/19-19S |
|
|
Straight Crimp Ring Adapter |
M85049/20-19S |
|
|
Straight, Spin Coupling Non-Environmental Backshell |
M85049/21-19S |
|
|
Straight Strain Relief Clamp |
M85049/38-19S |
|
|
90°Strain Relief Clamp |
M85049/39-19S |
|
|
45°, Spin Coupling Environmental EMI/RFI Backshell |
M85049/78-19S |
|
|
90°, Spin Coupling Environmental EMI/RFI Backshell |
M85049/79-19S |
|
|
Straight, Spin Coupling, cont. Shrink Boot Adapter |
M85049/69-19S |
|
|
Straight, Self-Lock Band Lock Adapter |
M85049/88-19S |
|
|
45°, Self-Lock Band Lock Adapter |
M85049/89-19S |
|
|
90°, Self-Lock Band Lock Adapter |
M85049/90-19S |
|
|
Straight Pre-Shield Adapter |
M85049/115-19S |
|
|
90°Pre-Shield Adapter |
M85049/117-19S |
|
|
Straight, Strain Relief Clamp |
M85049/124-19S |
|
|
90°Strain Relief Clamp |
M85049/126-19S |
Same Pin Count – Multiple Connector Options
Technical Assembly Kit Included
Protecting Your Connection Integrity
Improper tools often lead to damaged terminals and costly downtime. To ensure the performance of your MIL-DTL-38999 and MIL-DTL-26482 series assemblies, we include a Complimentary AVIA Precision Assembly Kit with every order.
By providing this kit at no additional cost, we ensure that every contact is handled with the correct tooling, maintaining the full electrical specifications and long-term reliability of your system.
The Complimentary AVIA Precision Assembly Kit
High-Reliability Terminal Contacts:
Engineered for optimal electrical and mechanical fit.
Dedicated Extraction Tooling:
Ensures safe, non-destructive handling of all contacts.
Compliance
Quality Management Certifications
Our quality management system, certified to ISO 9001, ensures consistent manufacturing processes and reliable product quality. AVIA Electronics follows internationally recognized quality standards — including ISO 9001 for quality management, ISO 14001 for environmental management, and ISO 45001 for occupational health and safety — to deliver dependable connector solutions.
-
- ISO9001 Certification
-
- ISO14001 Certification
-
- ISO45001 Certification
Product Compliance Certifications
Our connectors comply with international environmental and safety requirements, ensuring reliable and compliant solutions for global markets. AVIA Electronics products meet CE marking requirements, RoHS directive standards for restricted hazardous substances, and REACH regulation requirements for chemical safety, supporting seamless integration into global supply chains.
-
- CE Compliant
-
- RoHS Compliant
-
- REACH Compliant
Product Test Reports
Our products undergo rigorous testing to verify environmental protection, durability, and performance in demanding applications. Connectors are validated to IP68 waterproof and dust-proof ratings and undergo 500-hour salt spray testing to confirm corrosion resistance in harsh military, aerospace, and marine environments.
-
- IP68 Protected
-
- Salt Spray Test
Warranty
1-Year Quality Warranty
We provide a 1-year limited warranty on all products, covering defects in materials and workmanship. Please note that this warranty does not cover damages resulting from improper use, unauthorized modifications, or intentional misuse.
