CA3102A14S-2P | MIL-DTL-5015 Box Mounting Receptacle Connector

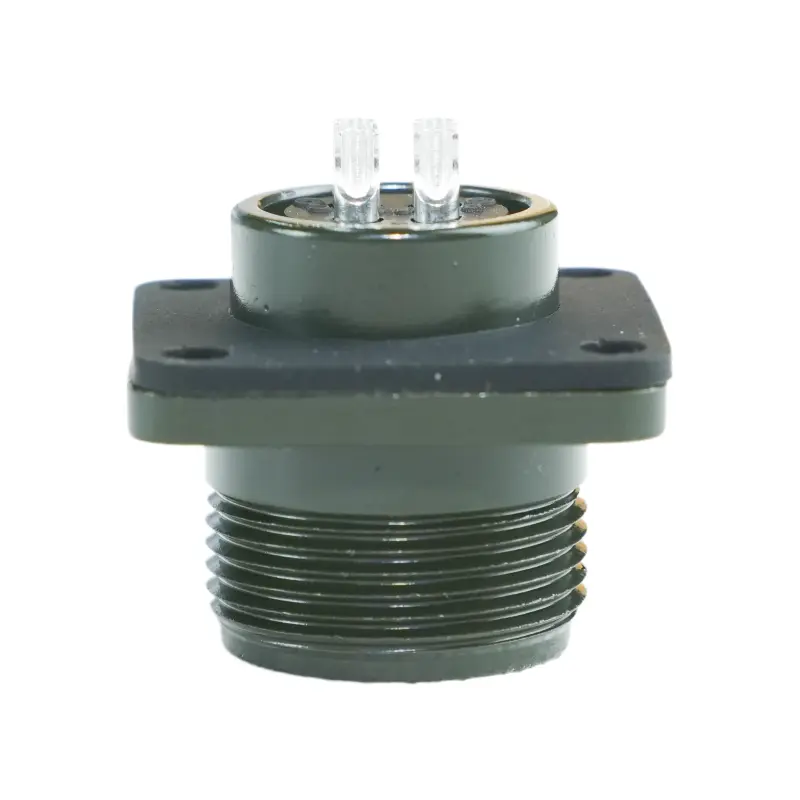

CA3102A14S-2P is a heavy-duty MIL-DTL-5015 circular connector. This box mounting receptacle features 2 pin contacts, 14S-2 insert arrangement, and threaded coupling. Reliable power and signal transmission for industrial and military equipment.
999999 in stock
Share:
Product Categories
Request a Quote
Technical Overview of CA3102A14S-2P Circular Connector

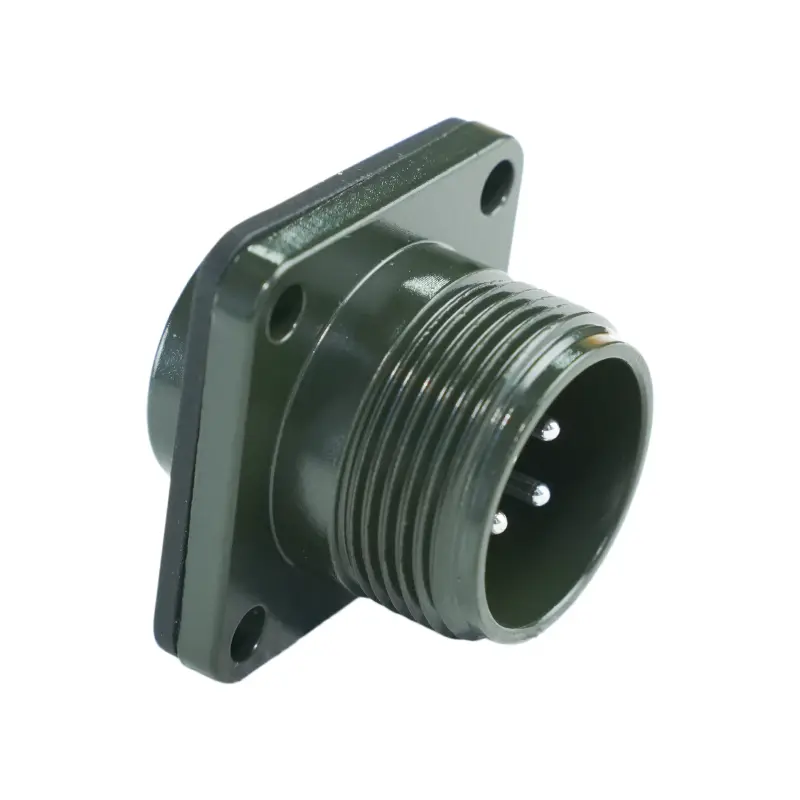

The CA3102A14S-2P is a high-performance circular connector designed to meet the rigorous requirements of the MIL-DTL-5015 standard. This specific model is a box mounting receptacle, commonly used in industrial and military environments where a permanent, fixed-mount connection is required. Its robust construction ensures reliable performance even under challenging conditions such as vibration, moisture, and extreme temperatures.

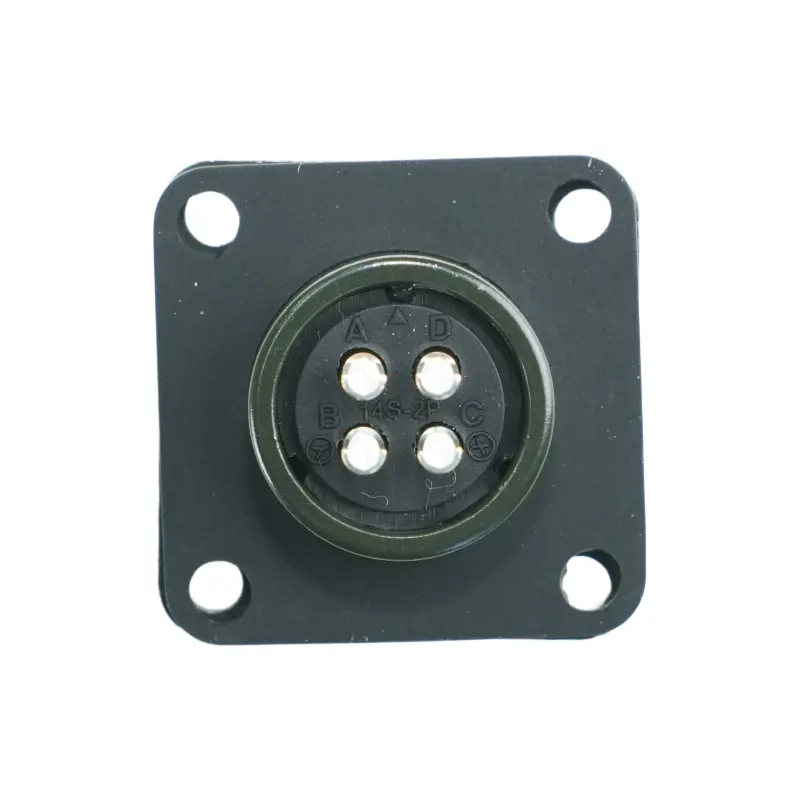

Equipped with a 14S-2 insert arrangement, this connector features a 2-pin configuration. The pins are precision-engineered to provide stable electrical conductivity for both power and signal transmission. The threaded coupling mechanism offers a secure fit, preventing accidental disconnection during operation. The shell is typically manufactured from high-grade aluminum alloy, providing a lightweight yet durable housing that resists corrosion and mechanical wear.
Key Specifications
Shell Material | Voltage Rating | Current Rating | Operating Temp | Ingress Protection | Mating Cycles | Keying & Polarization | Coupling |
|---|---|---|---|---|---|---|---|
Aluminum alloy | ~1000 VAC | ~40 A | -55 °C to +125 °C | IP67 | 500 | N | Threaded Coupling |
Technical Features and Design of CA3102A14S-2P
The CA3102A14S-2P is a precision-engineered circular connector that adheres to the MIL-DTL-5015 standard, a benchmark for reliability in industrial and military interconnect solutions. As a box mounting receptacle, this component is designed for permanent installation on panels or equipment chassis. The 14S-2 insert arrangement is specifically configured with 2 pin contacts, providing a streamlined solution for applications that require a simplified but secure two-wire interface.
The construction of this connector focuses on durability and environmental resistance. The shell is typically crafted from high-strength aluminum alloy, often finished with a protective plating to prevent oxidation and wear in harsh operating conditions. The threaded coupling mechanism ensures that once the mating plug is engaged, the connection remains stable even when subjected to mechanical vibration or movement, making it a trusted choice for heavy machinery and aerospace systems.
Performance Benefits in Industrial Applications

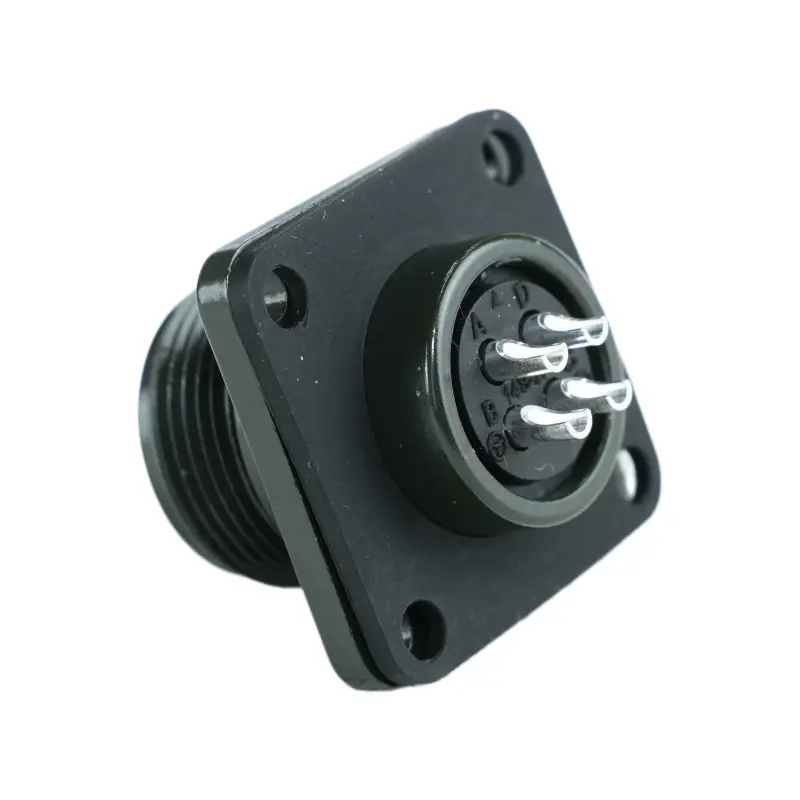

One of the primary advantages of the CA3102A14S-2P is its exceptional electrical stability. The 2-pin configuration within the compact 14S shell size allows for efficient power or signal distribution without the bulk of larger multi-pin connectors. This makes it particularly suitable for modern automation and robotics, where space on control panels is often limited. The box mounting design, characterized by its four-hole square flange, provides a low-profile and secure attachment point that integrates seamlessly into various enclosure types.
Furthermore, the versatility of the CA3102A14S-2P is enhanced by its standardized design. Being compliant with universal military specifications means this connector is intermateable with equivalent 5015 series components from other major manufacturers. This compatibility simplifies the procurement process for maintenance and repair operations, as it allows for easy replacement of existing parts without the need for extensive system re-engineering or specialized tooling.
Installation and Compatibility Guidelines
Correct installation is key to maintaining the integrity of the CA3102A14S-2P in the field. When mounting the receptacle, it is important to ensure that the panel cutout matches the 14S shell dimensions to provide a flush fit. Utilizing appropriate gaskets or sealing rings during the mounting process can further enhance the environmental protection of the connection, shielding internal electronics from dust and moisture ingress. The pin contacts are designed for standard soldering or crimping techniques, ensuring a robust bond with the internal wiring of the device.
For engineers and buyers looking for cross-reference options, the CA3102A14S-2P serves as a direct technical equivalent to the MS3102A14S-2P. Whether it is used in communication equipment, sensor arrays, or power supply units, this connector delivers consistent performance. Its ability to handle instantaneous service ratings while maintaining a compact physical footprint ensures that it remains a staple component in the toolkit of interconnect professionals worldwide.
FAQ
What is the contact arrangement for the CA3102A14S-2P?
What is the contact arrangement for the CA3102A14S-2P?
The CA3102A14S-2P utilizes a 14S-2 insert arrangement, which consists of 2 pin contacts. This layout is specifically designed for 2-wire circuits requiring a secure military-standard interface.
Can the CA3102A14S-2P be used in outdoor environments?
Can the CA3102A14S-2P be used in outdoor environments?
Yes, when properly mated with a compatible plug and the appropriate backshell or accessories, this connector provides excellent resistance to environmental factors such as dust and moisture, making it suitable for outdoor industrial use.
Is the CA3102A14S-2P compatible with Amphenol or ITT Cannon parts?
Is the CA3102A14S-2P compatible with Amphenol or ITT Cannon parts?
Yes, the CA3102A14S-2P is built to the MIL-DTL-5015 specification, which ensures intermateability and technical equivalence with MS3102A14S-2P models from other qualified manufacturers.
What is the mounting method for this specific connector?
What is the mounting method for this specific connector?

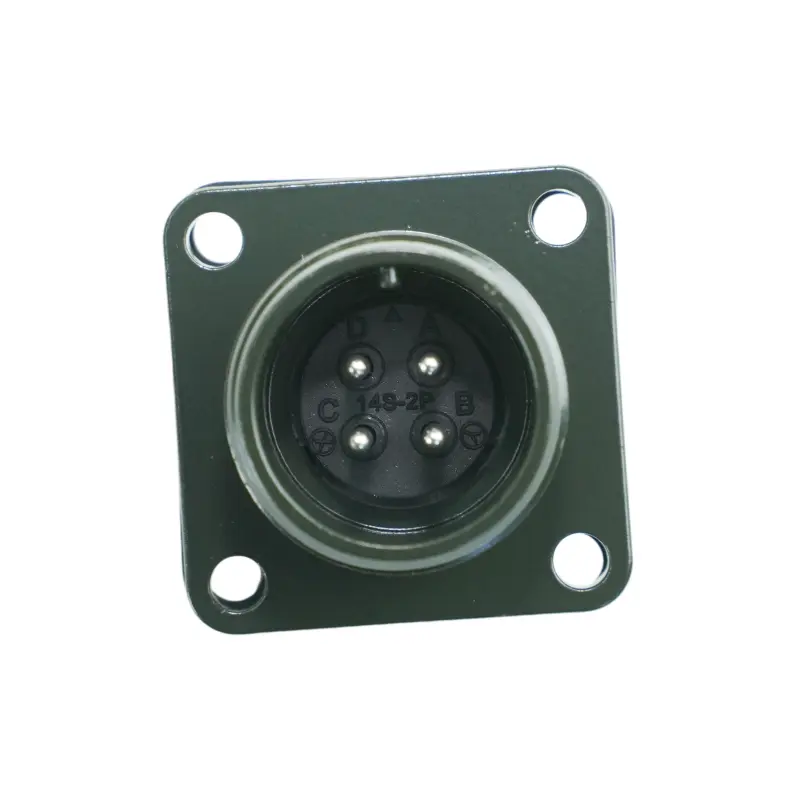

This model is a box mounting receptacle. It features a square flange with four mounting holes, designed to be fastened directly onto a flat surface or a panel.
What are the common applications for this 2-pin connector?
What are the common applications for this 2-pin connector?
Common applications include power supply connections for industrial machinery, sensor interfaces in automation, and signal transmission in military communication devices where a rugged and reliable 2-pin connection is mandatory.
