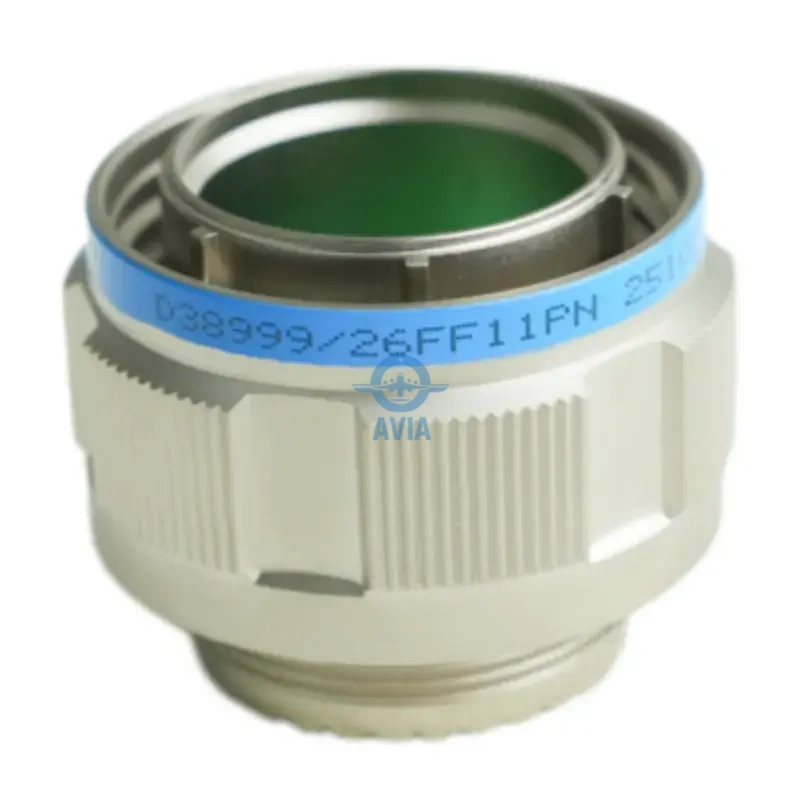

D38999/26FF11PN | 11-Pin Series III Electroless Nickel Plug (Size 19)
The D38999/26FF11PN is a size 19 MIL-DTL-38999 Series III aluminum plug with 11 heavy-duty pin contacts. Features electroless nickel “F” finish and “N” polarization for precision grids.
999999 in stock
Share:
Product Categories
Request a Quote
D38999/26FF11PN Optimized Power Distribution in Mid-Size Electronic Grids
The D38999/26FF11PN is a precision-engineered interconnect solution designed for specialized electronic grids that require a balanced integration of power and signal density. Utilizing the size 19 aluminum alloy shell, this straight plug facilitates eleven independent conductive channels through its 19-11 insert arrangement. Unlike ultra-high-density signal connectors, the 19-11 layout employs Size 16 pin contacts, which are engineered to handle higher current loads with minimal heat dissipation. This makes the D38999/26FF11PN an essential component for localized power distribution units, actuator control systems, and high-fidelity sensor arrays where electrical stability is a primary operational requirement.
Key Specifications
Shell Material | Voltage Rating | Current Rating | Operating Temp | Ingress Protection | Mating Cycles | Keying & Polarization | Coupling |
|---|---|---|---|---|---|---|---|
Aluminum alloy | ~1000 VAC | ~23 A | -65 °C to +200 °C | IP67 | 500 | D | threaded coupling |
Electroless Nickel Finish and Superior EMI Suppression
The “F” class finish of the D38999/26FF11PN consists of high-purity electroless nickel plating applied over the aluminum housing, providing a clean, durable, and highly conductive surface. This finish is specifically selected for environments where electromagnetic compatibility (EMC) is a critical design factor. The electroless nickel provides a low-impedance ground path across the shell-to-shell interface, which, combined with the plug’s internal grounding fingers, ensures 360-degree shielding effectiveness. This protects the eleven internal conductive lines from RFI and EMI, ensuring that sensitive digital telemetry remains uncorrupted in the dense electromagnetic environments typical of modern aircraft and radar platforms.
Mechanical Integrity and Self-Locking Coupling Security
As a Series III straight plug, the D38999/26FF11PN features a triple-start threaded coupling mechanism with an integrated self-locking ratchet system. This design facilitates a rapid and secure connection with only one full 360-degree turn of the coupling nut, providing both tactile and audible confirmation of a verified mate. The internal anti-decoupling device ensures that the connector remains locked even under the severe harmonic vibrations and mechanical shocks common in jet engine compartments or high-performance military vehicle operations. This mechanical robustness ensures constant electrical continuity across the eleven-pin grid, preventing intermittent power loss during high-stress maneuvers.
Precision Pin Fidelity and 19-11 Layout Integrity
Within the size 19 housing, the D38999/26FF11PN employs eleven Size 16 pin contacts, offering a robust and reliable interface for critical power and signal channels. These pins are precision-machined from high-conductivity copper alloy and finished with high-grade gold plating to prevent atmospheric oxidation and maintain low contact resistance throughout the equipment’s service life. The high-performance dielectric insert ensures that each of the eleven channels is electrically isolated, maintaining superior insulation resistance even under rapid pressure changes or high humidity. This ensures that the power grid remains free from electrical leakage and short circuits in unpressurized aerospace compartments.
100% Scoop-Proof Architecture and Maintenance Efficiency
The structural reliability of the D38999/26FF11PN is reinforced by its 100% scoop-proof shell design, which protects the eleven pin contacts from being bent or damaged if the mating receptacle is misaligned during connection. For long-term logistical support and field repairability, the plug utilizes a rear-release crimp contact system. This allows technicians to install or replace individual pins using standard military-specification tools without disassembling the entire unit from the cable harness. This combination of physical protection and modular serviceability ensures that the D38999/26FF11PN delivers a high level of operational readiness and a low total cost of ownership for ruggedized digital environments.
FAQ
How many contacts are provided in the D38999/26FF11PN?
How many contacts are provided in the D38999/26FF11PN?
The 19-11 layout features eleven independent conductive channels using Size 16 pin contacts, optimized for medium-current power distribution and signal transmission.
What are the advantages of the Electroless Nickel (F) finish?
What are the advantages of the Electroless Nickel (F) finish?
The “F” finish offers excellent surface conductivity for superior EMI/RFI shielding and a durable, corrosion-resistant surface suitable for controlled aerospace and industrial environments.
What is the benefit of the triple-start threaded coupling?
What is the benefit of the triple-start threaded coupling?
The triple-start threads allow for rapid mating with a single turn and include an integrated self-locking ratchet that prevents the plug from loosening under high-vibration conditions.
Is the D38999/26FF11PN compatible with standard Series III receptacles?
Is the D38999/26FF11PN compatible with standard Series III receptacles?
Absolutely. As long as the mating receptacle is size 19, has the 11 layout, and uses standard “N” polarization, it will be fully intermateable with this plug.
Does this plug provide protection against accidental pin damage?
Does this plug provide protection against accidental pin damage?
Yes, the 100% scoop-proof shell design ensures that the pins are recessed deeply enough to prevent damage even if the connector is misaligned during the mating process.
