JY27466T09F03PCN | MIL-DTL-38999 Series I Wall Receptacle

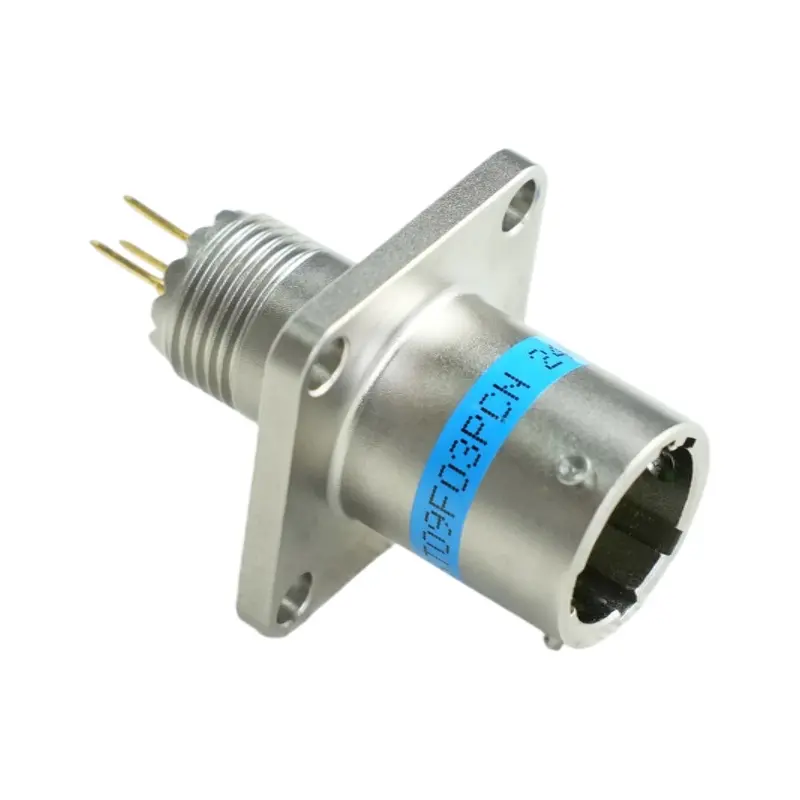

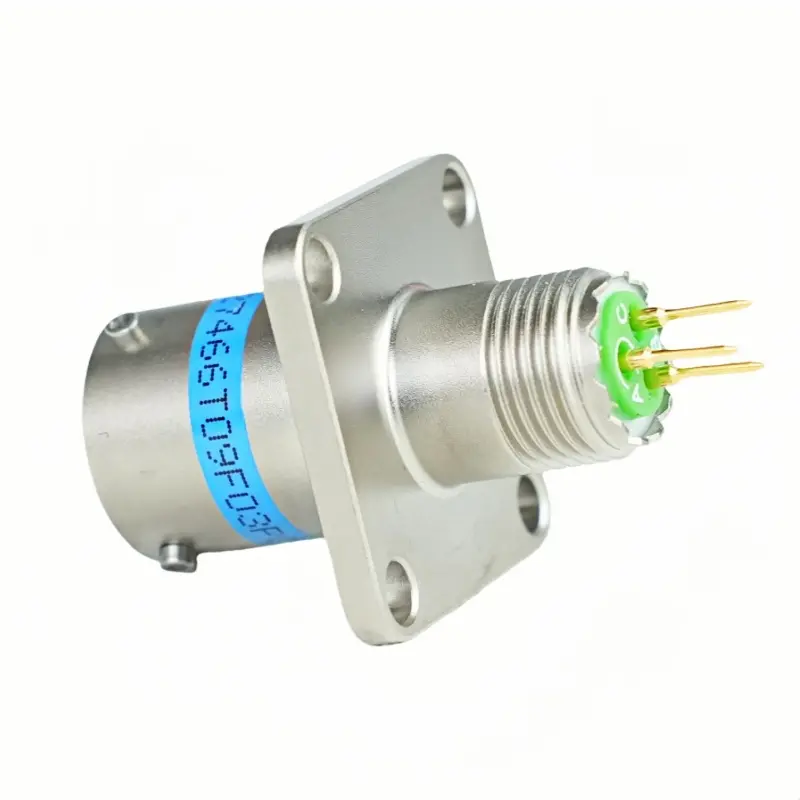

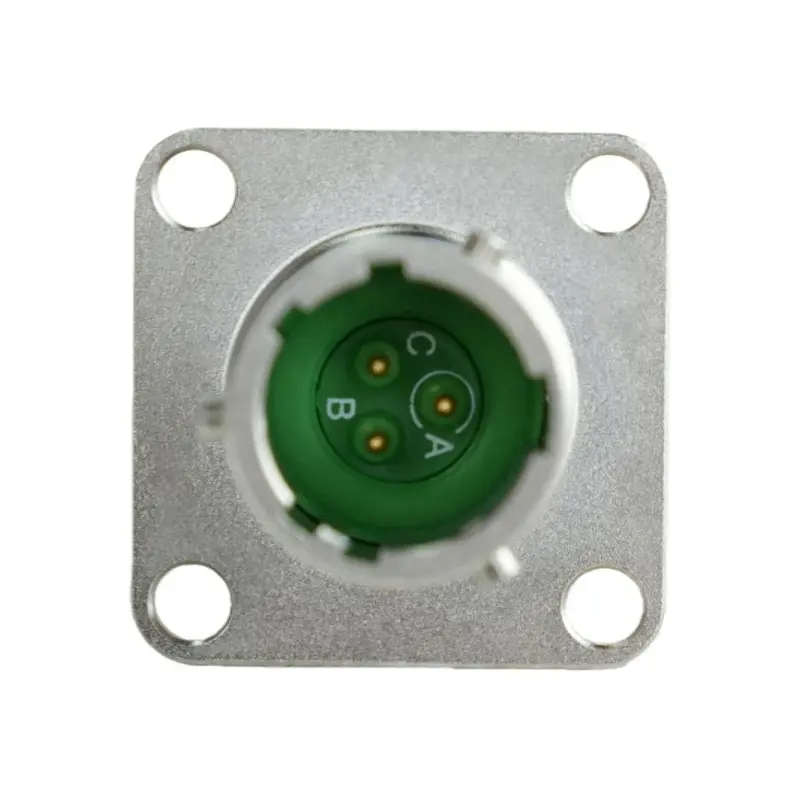

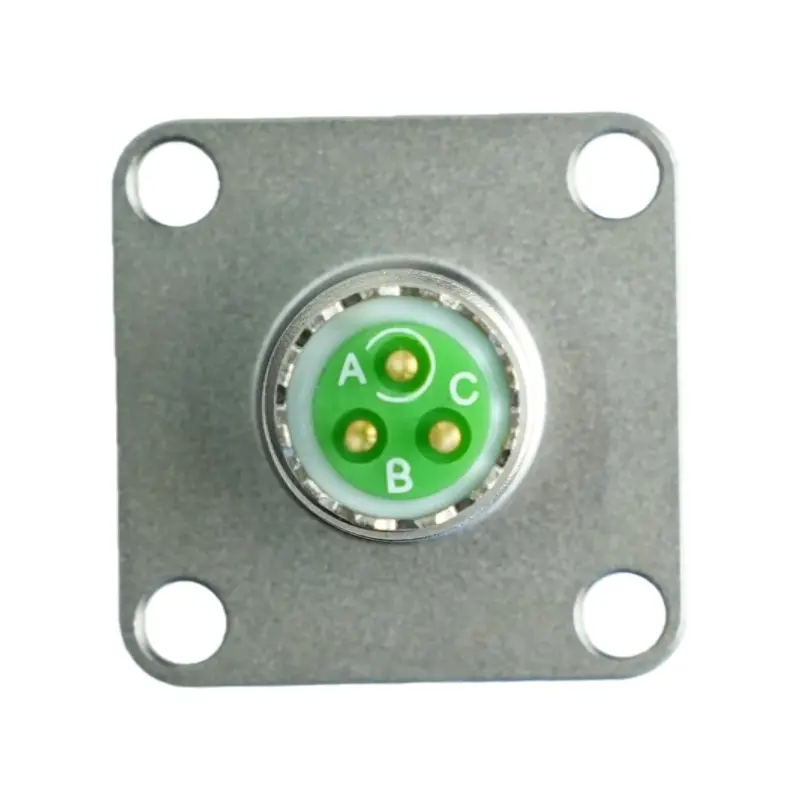

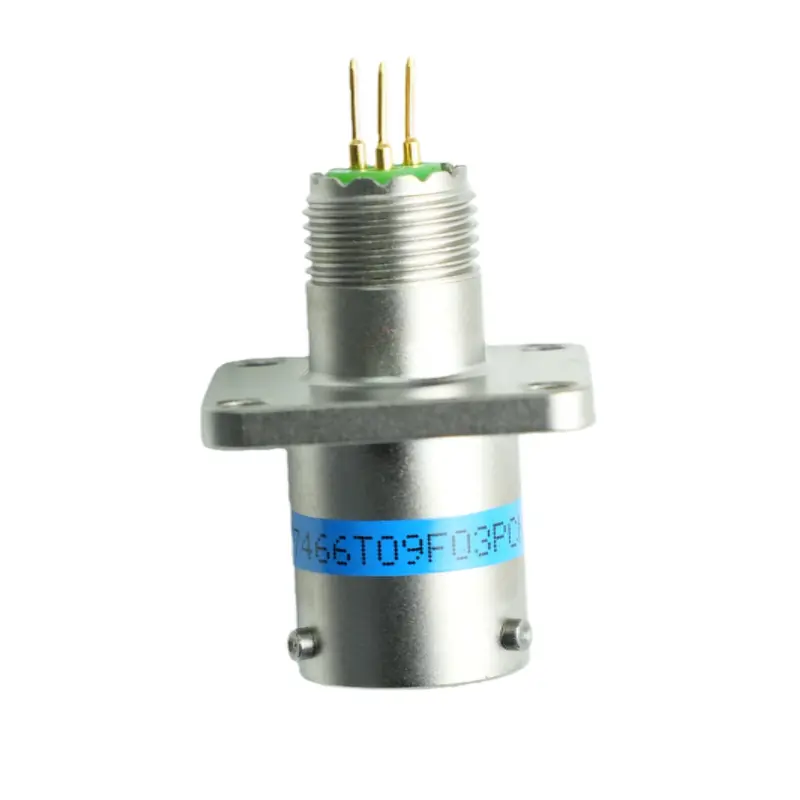

JY27466T09F03PCN: 3 pin wall mount receptacle, Size 9, Pin contacts. Aluminum shell with electroless nickel finish. High-reliability for harsh environments.
999999 in stock
Share:
Product Categories
Request a Quote
Product Overview
The JY27466T09F03PCN is a rugged circular connector designed for reliable electrical interconnection in military, aerospace, industrial, and other demanding applications. Built for harsh operating environments, this connector provides dependable performance where resistance to vibration, shock, moisture, and temperature variations is essential.
The JY27466T09F03PCN features a shell size 09 configuration with a 3-contact insert arrangement and is designed for secure and reliable mating in equipment requiring a compact circular connector interface. Its robust construction, environmental protection, and corrosion-resistant finish help maintain stable electrical performance under demanding operating conditions. The connector is suitable for military equipment, aerospace systems, ground vehicles, industrial control equipment, and other applications requiring durable and reliable circular electrical connections.
Part Number Breakdown
Stock & Availability
In Stock / Factory Lead Time
At AVIA Electronics, we understand that your project timelines depend on component reliability. To support your mission-critical operations, we maintain a proactive inventory strategy specifically optimized for the JY27466T09F03PCN and our broader line of high-reliability connectors.
In-Stock (Ready to Ship): The JY27466T09F03PCN is currently verified in our central facility. Orders placed for available items are processed and dispatched within 24–48 business hours, helping minimize downtime for your production, maintenance, or system integration schedules.
Factory Lead Time: For large-volume requirements of the JY27466T09F03PCN or items currently undergoing replenishment, we provide precise, project-specific lead times. We work closely with our manufacturing partners to secure your required allocation and provide transparent order tracking from production through delivery.
Supply Assurance: We prioritize long-term supply stability for our customers. If you require scheduled deliveries, bulk kitting, or buffer stock of the JY27466T09F03PCN for multi-phase projects, our logistics team can coordinate a customized supply plan aligned with your production and project milestones.
Multiple shell sizes available
The JY27466T09F03PCN is part of a rugged circular connector family designed to provide reliable electrical interconnection for demanding military, aerospace, industrial, and other harsh-environment applications. We understand that your designs require consistency and dependable mechanical integration; therefore, our connector solutions are available in a range of configurations to accommodate different system requirements.
Multiple Configurations: While the JY27466T09F03PCN represents a specific configuration, the wider product family can be supplied in different shell sizes, contact arrangements, mounting styles, and connector configurations. This allows engineers to select the appropriate solution for applications ranging from compact control interfaces to more demanding equipment interconnection systems.
Reliable Interface Design: JY27466 series connectors are designed with secure mating and robust mechanical construction to provide stable electrical connections in demanding operating environments. Their circular connector design supports dependable integration into military equipment, aerospace systems, ground vehicles, industrial control equipment, and other rugged applications.
Precision Engineering: Regardless of the configuration selected, our connectors are manufactured to stringent dimensional and performance requirements. Each connector is designed to provide reliable electrical continuity and mechanical stability under conditions involving vibration, shock, moisture, and temperature variations.
Custom configurations supported
At AVIA Electronics, we recognize that off-the-shelf components may not always meet the unique demands of your high-performance systems. While the JY27466T09F03PCN represents a standard high-reliability configuration, we offer extensive support for custom engineering and sourcing to ensure our connector solutions integrate effectively into your specific design architecture.
Bespoke Pin & Insert Arrangements: If your project requires a non-standard contact layout or a specific combination of power and signal contacts, we can assist with customized contact and insert configurations to meet your electrical and mechanical requirements.
Specialized Plating & Material Options: Depending on your application requirements, we can support different material and surface-finish options, including specialized plating for enhanced corrosion resistance, electrical performance, environmental durability, or specific installation conditions.
Modified Shell & Mounting Requirements: For space-constrained or application-specific installations, we can assist with sourcing or coordinating customized shell configurations, mounting features, backshell solutions, and other mechanical modifications to simplify system integration.
Turnkey Kitting & Integration: We offer custom kitting services where the JY27466T09F03PCN can be supplied together with application-specific accessories, protective covers, backshells, cable assemblies, or other required components, helping streamline procurement and production-line integration.
Sample Policy & Flexible Order Support
At AVIA Electronics, we provide premium, high-reliability interconnect solutions. To ensure the performance of the JY27466T09F03PCN meets your precise engineering requirements, we offer a professional sampling service. We are committed to supporting innovation and product development at every stage of your project lifecycle.
Sample Availability: We provide samples of the JY27466T09F03PCN for engineering evaluation, qualification, and prototype testing. A nominal sample fee may apply to cover material costs and individual handling, ensuring that you receive properly inspected parts representative of the intended production configuration.
No Minimum Order Quantity (No MOQ): We believe in supporting projects regardless of scale. Whether you need a single unit for a critical repair, several pieces for engineering evaluation, or a small pilot batch for system integration, we can accommodate low-quantity requirements without imposing a minimum order quantity.
Streamlined Fulfillment: Our logistics team handles sample orders with the same attention to packaging and quality as larger shipments. From sample confirmation through dispatch, we provide secure protective packaging and efficient shipment processing to help keep your engineering and development schedule on track.
Logistics & Distribution Services
AVIA Electronics utilizes a reliable distribution framework to ensure the secure and accurate delivery of components to global destinations. Shipping options available for your order are calculated and displayed during the checkout process based on your specific requirements.
Supported Carriers & Services
We partner with established logistics providers to offer a range of delivery solutions:
Express Carriers: DHL, UPS, FedEx, SF Express
Postal & Standard Services: Belgium Post, Global Direct Standard Line, Registered Mail
Shipping Cost Calculation
Shipping charges are dynamically calculated at checkout to ensure accuracy. The final cost is determined by the following variables:
Package Weight: The total combined weight of the products and necessary protective packaging.
Service Selection: Costs vary depending on the chosen carrier and the selected service level (e.g., expedited express vs. standard delivery).
Destination: Rates are adjusted based on the specific country or region of delivery.
Technical Specifications
Basic Info.
|
Model NO. |
JY27466T09F03PCN |
|---|---|
|
Application |
Industrial Automation |
|
Contact Material |
Copper |
|
Shell Material |
Aluminum alloy |
|
Shell Size |
15 |
|
Termination Style |
Crimp |
|
Contact Plating |
Gold |
|
Transport Package |
Standard Expect Package |
|
Origin |
China |
|
Production Capacity |
100000 |
|
Certification |
ISO 9001, ISO 14001, ISO 45001, CE, RoHS, REACH, IP68, 500-Hour Salt Spray Tested |
|---|---|
|
Contact Resistance |
≤ 12.0(mΩ) |
|
Surface Treatment |
Olive green cadmium plating |
|
Processing and Customization |
OEM/ODM |
|
Shell Style |
Wall Mounting Receptacle |
|
Mounting Style |
Wall Mounting Receptacle |
|
Mating Style |
quick bayonet coupling |
|
Grommet and seal |
Silicon rubber |
|
Endurance |
500 cycles |
|
Trademark |
AVIA |
|
HS Code |
8536901100 |
Packaging & Weight
|
Package Size |
41.00cm * 31.00cm * 30.00cm |
|---|---|
|
Package Gross Weight |
100g |
Mechanical Specifications
Vibration
|
Sine |
60g, with temperature cycling and simulated accessory (36 hours) |
|---|---|
|
Random |
44.1 grms in high temperature 49.5 grms in ambient temperature |
|
Shock |
At 3 ms half sinusoid, peak value of acceleration: 300g |
Contact Retention
|
22D# |
45N |
|---|---|
|
20# |
67N |
|
16# |
111N |
|
12# |
111N |
|
10# |
111N |
|
8 # |
111N |
Electrical Performance
Voltage rating (V)
|
Package Size |
M |
N |
I |
II |
|---|---|---|---|---|
|
Sea level |
1300 |
1000 |
1800 |
2300 |
|
21000M |
800 |
600 |
1000 |
1000 |
Contact resistance and rated current
|
Contact Size |
Diameter (mm) |
Resistance (mΩ) |
Current (A) |
|---|---|---|---|
|
22D# |
Φ 0.76 |
≤ 12.0 |
5.0 |
|
20# |
Φ 1.00 |
≤ 5.0 |
7.5 |
|
16# |
Φ 1.60 |
≤ 2.5 |
13.0 |
|
12# |
Φ 2.40 |
≤ 1.5 |
23.0 |
|
10# |
Φ 3.15 |
≤ 1.0 |
40.0 |
Environmental Performance
Operating temperature
|
W class |
-65 oC ~ +175 oC |
|---|---|
|
K, F class |
-65 oC ~ +200 oC |
Salt spray
|
F class |
48h |
|---|---|
|
W class |
500h |
|
K class |
1000h |
Typical Applications
- Military Communication
- Aerospace Systems
- UAV & Defense Electronics
- Industrial Automation
Cross-Reference & Mating
Compatible Brands & Mating
|
Brands |
Equivalents |
|
|---|---|---|
|
Amphenol |
10-626404-35PN |
|
|
Souriau |
- |
|
|
ITT Cannon |
- |
- |
|
Aero/Conesys |
- |
- |
|
Deutsch |
- |
- |
Compatible Backshells & Caps
|
Type |
Backshells |
Dust Caps |
|---|---|---|
|
Straight, Grommet Nut |
M85049/14-19S |
D38999/33K19N |
|
45°Quick Clamp |
M85049/15-19S |
|
|
90°Quick Clamp |
M85049/16-19S |
|
|
Straight, Spin Coupling Environmental EMI/RFI Backshell |
M85049/18-19S |
|
|
Straight, Spin Coupling Non-Environmental EMI/RFI Backshell |
M85049/19-19S |
|
|
Straight Crimp Ring Adapter |
M85049/20-19S |
|
|
Straight, Spin Coupling Non-Environmental Backshell |
M85049/21-19S |
|
|
Straight Strain Relief Clamp |
M85049/38-19S |
|
|
90°Strain Relief Clamp |
M85049/39-19S |
|
|
45°, Spin Coupling Environmental EMI/RFI Backshell |
M85049/78-19S |
|
|
90°, Spin Coupling Environmental EMI/RFI Backshell |
M85049/79-19S |
|
|
Straight, Spin Coupling, cont. Shrink Boot Adapter |
M85049/69-19S |
|
|
Straight, Self-Lock Band Lock Adapter |
M85049/88-19S |
|
|
45°, Self-Lock Band Lock Adapter |
M85049/89-19S |
|
|
90°, Self-Lock Band Lock Adapter |
M85049/90-19S |
|
|
Straight Pre-Shield Adapter |
M85049/115-19S |
|
|
90°Pre-Shield Adapter |
M85049/117-19S |
|
|
Straight, Strain Relief Clamp |
M85049/124-19S |
|
|
90°Strain Relief Clamp |
M85049/126-19S |
