JY27467T23B35SN RFI Shielded Plug | MIL-DTL-38999 Series I

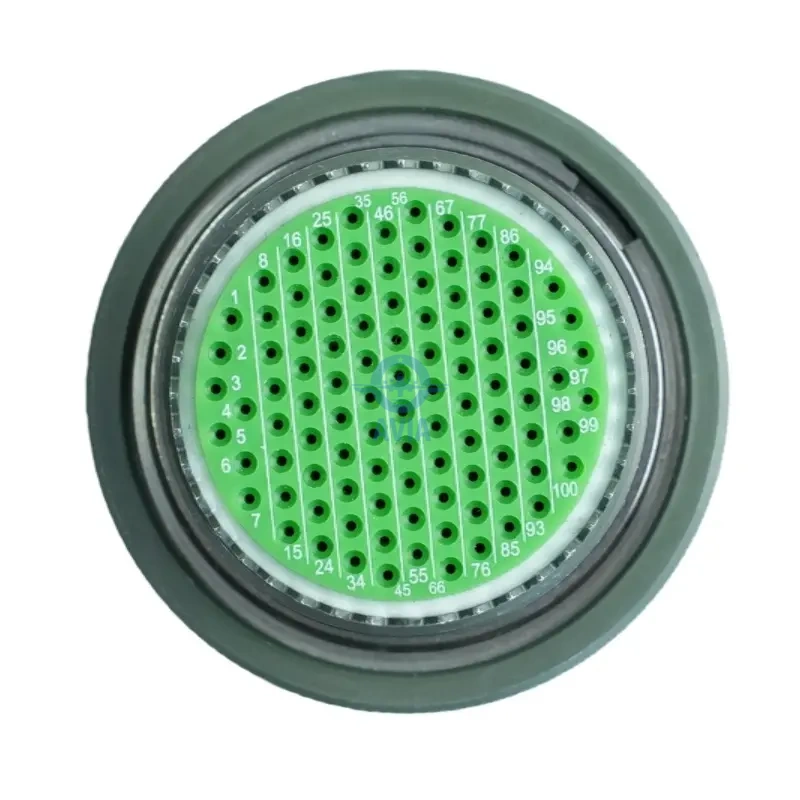

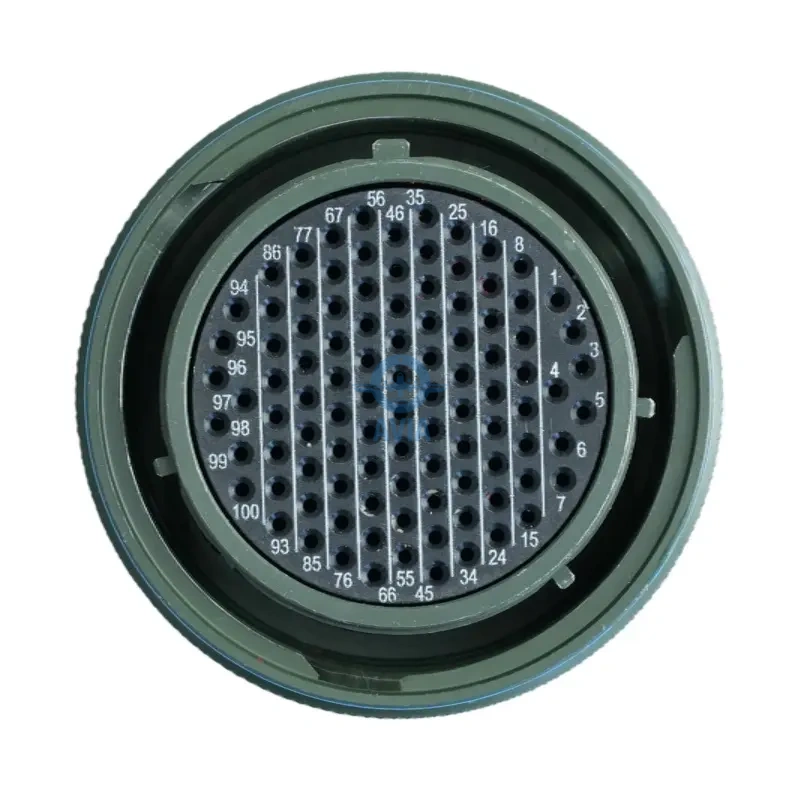

JY27467T23B35SN is a 100-pin high-density plug. MIL-DTL-38999 Series I compliant, Cadmium finish for 500H salt spray. [Click for Quote. 15 Min Response]
999999 in stock
Share:
Product Categories
Request a Quote
Product Overview

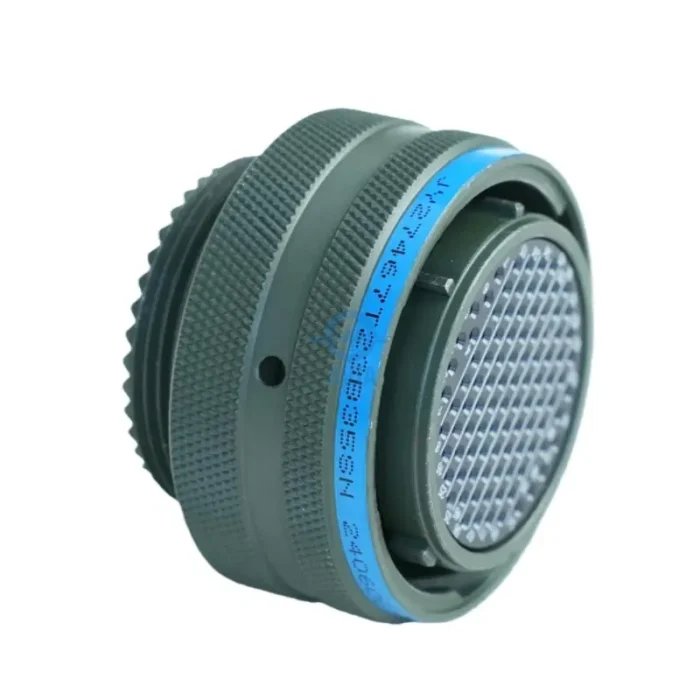

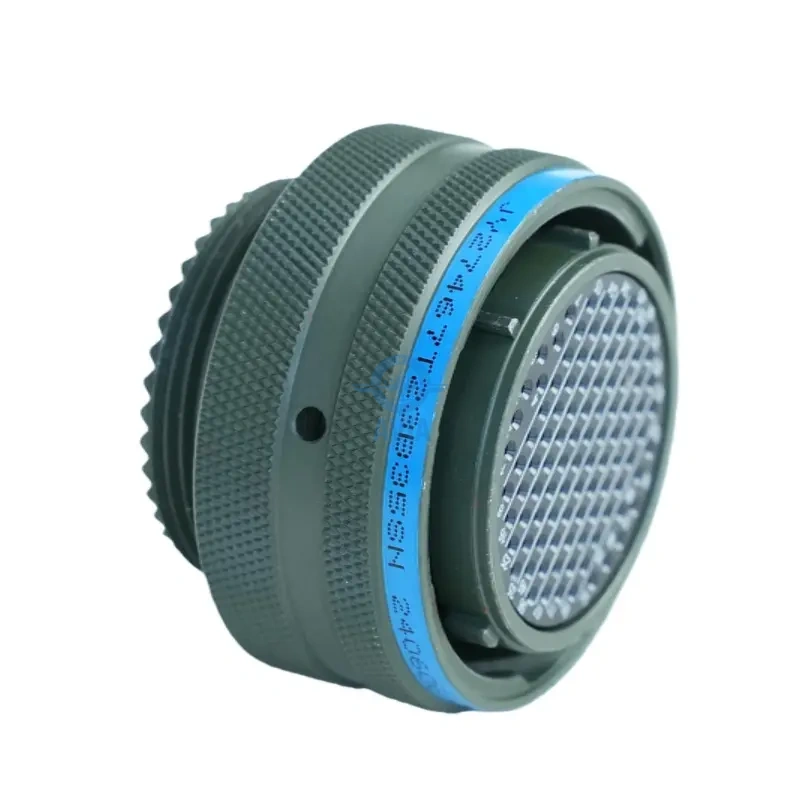

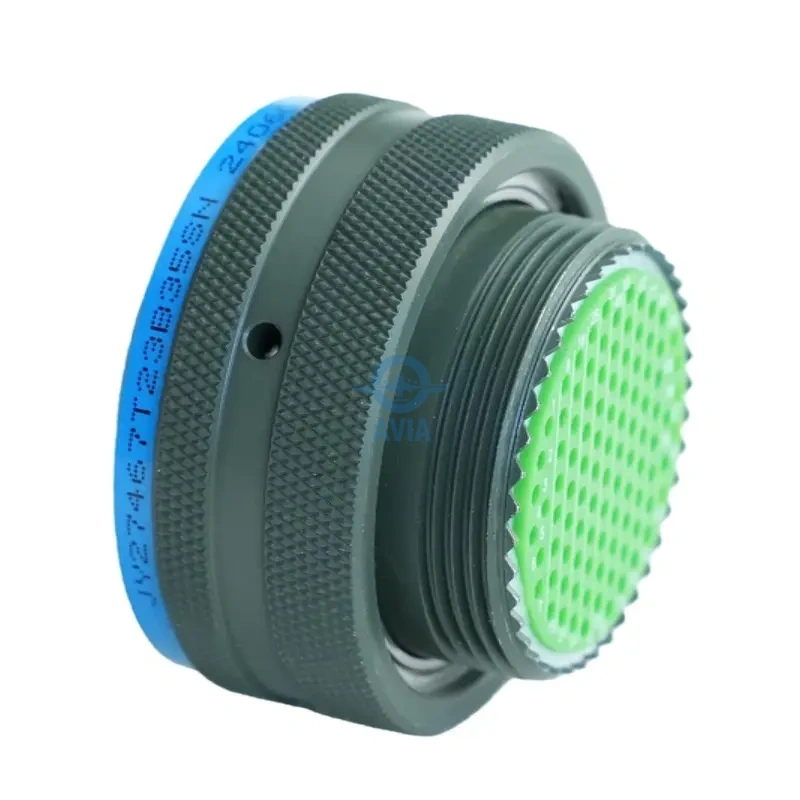

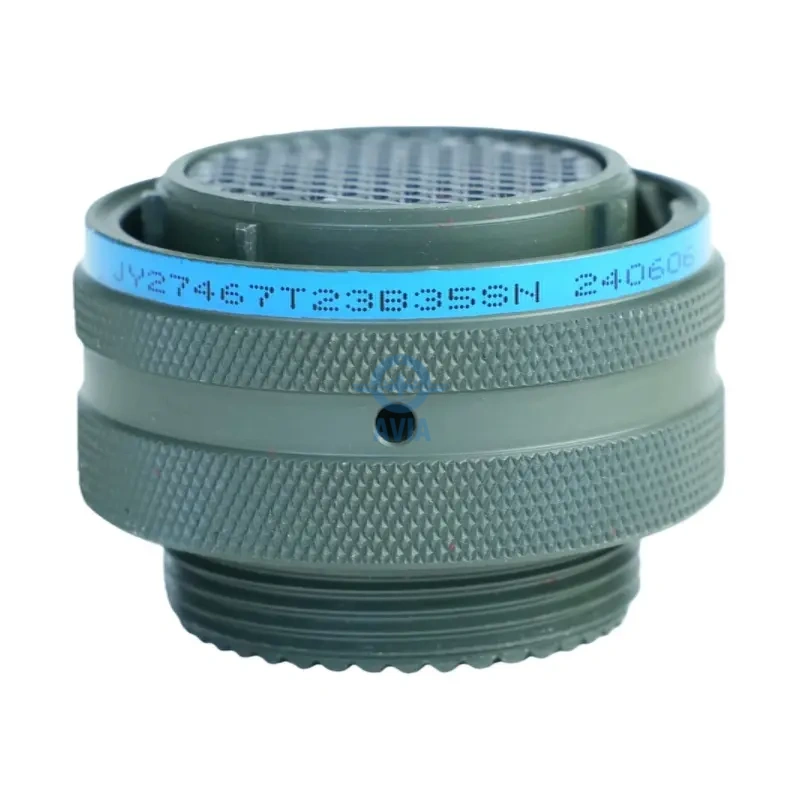

The JY27467T23B35SN is a bayonet-coupled circular connector designed to meet the requirements of the MIL-DTL-38999 Series II specification. Built for extreme-environment applications, this connector is well suited for military aeronautics, ground defense systems, industrial equipment, and marine/offshore installations where reliable performance under vibration, moisture, and temperature extremes is critical.
This part number designates a shell size 23 connector with an S insert arrangement in a receptacle (N) configuration, contact size 20. The JY27467 Series II construction features a secure bayonet-coupling mechanism for reliable mating, environmental sealing to help protect against moisture and contaminant ingress, and rugged shell construction for dependable performance across demanding operating conditions.
Part Number Breakdown
Stock & Availability
In Stock / Factory Lead Time
At AVIA Electronics, we understand that your project timelines depend on component reliability. To support your mission-critical operations, we maintain a proactive inventory strategy specifically optimized for the JY27467T23B35SN and our broader line of high-reliability connectors.
In-Stock (Ready to Ship): The JY27467T23B35SN is currently verified in our central facility. Orders placed for this item are processed and dispatched within 24–48 business hours, helping minimize downtime for your production or maintenance schedules.
Factory Lead Time: For large-volume requirements of the JY27467T23B35SN or items currently undergoing replenishment, we provide precise, project-specific lead times. We leverage our direct manufacturing partnerships to secure your allocation, offering transparent tracking from the production line to your facility.
Supply Assurance: We prioritize long-term supply stability for our clients. If you require scheduled deliveries, bulk kitting, or buffer stock of the JY27467T23B35SN for multi-phase projects, our logistics team is ready to coordinate a personalized supply plan aligned with your specific project milestones.
Multiple shell sizes available
The JY27467T23B35SN is part of the MIL-DTL-38999 family of high-reliability circular connectors, engineered to provide dependable performance across demanding system architectures. We understand that your designs require consistency and precise mechanical integration; therefore, our connector solutions are available in a comprehensive range of shell sizes and configurations to meet diverse application requirements.
Comprehensive Shell Size Options: While the JY27467T23B35SN represents a specific configuration, the broader product range is available in multiple shell sizes and contact arrangements. This allows engineers to select the appropriate connector configuration for applications ranging from compact electronic equipment to high-density power, signal, and data interfaces.
Reliable Interface Design: The JY27467T23B35SN is designed to provide secure mating and reliable electrical performance in demanding operating environments. Compatible configurations and standardized interface features help simplify connector selection, installation, and maintenance across different system architectures.
Precision Engineering: Regardless of the shell size or configuration selected, MIL-DTL-38999 connectors are manufactured to stringent military-grade requirements. The JY27467T23B35SN is designed for reliable performance under environmental stresses such as vibration, temperature variation, moisture, and other demanding operating conditions, helping maintain stable signal integrity throughout the service life of the equipment.
Custom configurations supported
At AVIA Electronics, we recognize that off-the-shelf components may not always meet the unique demands of your high-performance systems. While the JY27467T23B35SN represents a standard high-reliability configuration, we offer extensive support for custom engineering requirements to help ensure our connector solutions integrate effectively into your specific design architecture.
Custom Pin & Insert Arrangements: If your project requires a specific contact layout or a customized combination of power and signal contacts, we can support tailored insert configurations to meet your electrical and mechanical requirements.
Specialized Plating & Material Options: For applications requiring enhanced corrosion resistance, environmental protection, EMI shielding, or weight optimization, we can assist with suitable material and plating options based on your operating conditions.
Modified Shell Configurations: For space-constrained or application-specific installations, we can support customized connector configurations, including modified mounting features, shell dimensions, or accessory arrangements to simplify system integration.
Turnkey Kitting & Integration: We offer custom kitting services where the JY27467T23B35SN can be supplied together with application-specific accessories, such as protective covers, backshells, boots, or cable assemblies, helping streamline procurement and production integration.
Sample Policy & Flexible Order Support
At AVIA Electronics, we provide premium, high-reliability interconnect solutions. To ensure the performance of the JY27467T23B35SN meets your precise engineering requirements, we offer a professional sampling service. We are committed to supporting innovation at every stage of your product lifecycle.
Sample Availability: We provide samples of the JY27467T23B35SN for engineering qualification and prototype testing. As these are high-performance military-grade components, a nominal sample fee applies to cover the material cost and individual handling. This ensures that you receive verified, defect-free parts that are representative of your final production batch.
No Minimum Order Quantity (No MOQ): We believe in supporting innovation regardless of scale. Whether you need a single unit for a critical repair or a small pilot batch for system integration, we operate with no minimum order quantity. You have the flexibility to procure exactly what your current phase requires without the burden of overstocking.
Streamlined Fulfillment: Our logistics team treats every sample order with the same rigor as bulk shipments. From the moment your sample request is processed, we ensure secure, industrial-grade packaging and rapid dispatch, helping you maintain your project momentum.
Logistics & Distribution Services
AVIA Electronics utilizes a reliable distribution framework to ensure the secure and accurate delivery of components to global destinations. Shipping options available for your order are calculated and displayed during the checkout process based on your specific requirements.
Supported Carriers & Services
We partner with established logistics providers to offer a range of delivery solutions:
Express Carriers: DHL, UPS, FedEx, SF Express
Postal & Standard Services: Belgium Post, Global Direct Standard Line, Registered Mail
Shipping Cost Calculation
Shipping charges are dynamically calculated at checkout to ensure accuracy. The final cost is determined by the following variables:
Package Weight: The total combined weight of the products and necessary protective packaging.
Service Selection: Costs vary depending on the chosen carrier and the selected service level (e.g., expedited express vs. standard delivery).
Destination: Rates are adjusted based on the specific country or region of delivery.
Technical Specifications
Basic Info.
|
Model NO. |
JY27467T23B35SN |
|---|---|
|
Application |
Industrial Automation |
|
Contact Material |
Copper |
|
Shell Material |
Aluminum alloy |
|
Shell Size |
23 |
|
Termination Style |
Crimp |
|
Contact Plating |
Gold |
|
Transport Package |
Standard Expect Package |
|
Origin |
China |
|
Production Capacity |
100000 |
|
Certification |
ISO 9001, ISO 14001, ISO 45001, CE, RoHS, REACH, IP68, 500-Hour Salt Spray Tested |
|---|---|
|
Contact Resistance |
≤ 12.0(mΩ) |
|
Surface Treatment |
Olive green cadmium plating |
|
Processing and Customization |
OEM/ODM |
|
Shell Style |
Plug |
|
Mounting Style |
Plug |
|
Mating Style |
Triple-Start Threaded Coupling |
|
Grommet and seal |
Silicon rubber |
|
Endurance |
500 cycles |
|
Trademark |
AVIA |
|
HS Code |
8536901100 |
Packaging & Weight
|
Package Size |
41.00cm * 31.00cm * 30.00cm |
|---|---|
|
Package Gross Weight |
100g |
Mechanical Specifications
Vibration
|
Sine |
60g, with temperature cycling and simulated accessory (36 hours) |
|---|---|
|
Random |
44.1 grms in high temperature 49.5 grms in ambient temperature |
|
Shock |
At 3 ms half sinusoid, peak value of acceleration: 300g |
Contact Retention
|
22D# |
45N |
|---|---|
|
20# |
67N |
|
16# |
111N |
|
12# |
111N |
|
10# |
111N |
|
8 # |
111N |
Electrical Performance
Voltage rating (V)
|
Package Size |
M |
N |
I |
II |
|---|---|---|---|---|
|
Sea level |
1300 |
1000 |
1800 |
2300 |
|
21000M |
800 |
600 |
1000 |
1000 |
Contact resistance and rated current
|
Contact Size |
Diameter (mm) |
Resistance (mΩ) |
Current (A) |
|---|---|---|---|
|
22D# |
Φ 0.76 |
≤ 12.0 |
5.0 |
|
20# |
Φ 1.00 |
≤ 5.0 |
7.5 |
|
16# |
Φ 1.60 |
≤ 2.5 |
13.0 |
|
12# |
Φ 2.40 |
≤ 1.5 |
23.0 |
|
10# |
Φ 3.15 |
≤ 1.0 |
40.0 |
Environmental Performance
Operating temperature
|
W class |
-65 oC ~ +175 oC |
|---|---|
|
K, F class |
-65 oC ~ +200 oC |
Salt spray
|
F class |
48h |
|---|---|
|
W class |
500h |
|
K class |
1000h |
Typical Applications
- Military Communication
- Aerospace Systems
- UAV & Defense Electronics
- Industrial Automation
Cross-Reference & Mating
Compatible Brands & Mating
|
Brands |
Equivalents |
Mates |
|---|---|---|
|
Amphenol |
LJT06RE23-35SN(453) |
LJT00RE23-35PN(453) |
|
Souriau |
- |
- |
|
ITT Cannon |
- |
- |
|
Aero/Conesys |
- |
- |
|
Deutsch |
- |
- |
Compatible Backshells & Caps
|
Type |
Backshells |
Dust Caps |
|---|---|---|
|
Straight, Grommet Nut |
M85049/14-19S |
D38999/33K19N |
|
45°Quick Clamp |
M85049/15-19S |
|
|
90°Quick Clamp |
M85049/16-19S |
|
|
Straight, Spin Coupling Environmental EMI/RFI Backshell |
M85049/18-19S |
|
|
Straight, Spin Coupling Non-Environmental EMI/RFI Backshell |
M85049/19-19S |
|
|
Straight Crimp Ring Adapter |
M85049/20-19S |
|
|
Straight, Spin Coupling Non-Environmental Backshell |
M85049/21-19S |
|
|
Straight Strain Relief Clamp |
M85049/38-19S |
|
|
90°Strain Relief Clamp |
M85049/39-19S |
|
|
45°, Spin Coupling Environmental EMI/RFI Backshell |
M85049/78-19S |
|
|
90°, Spin Coupling Environmental EMI/RFI Backshell |
M85049/79-19S |
|
|
Straight, Spin Coupling, cont. Shrink Boot Adapter |
M85049/69-19S |
|
|
Straight, Self-Lock Band Lock Adapter |
M85049/88-19S |
|
|
45°, Self-Lock Band Lock Adapter |
M85049/89-19S |
|
|
90°, Self-Lock Band Lock Adapter |
M85049/90-19S |
|
|
Straight Pre-Shield Adapter |
M85049/115-19S |
|
|
90°Pre-Shield Adapter |
M85049/117-19S |
|
|
Straight, Strain Relief Clamp |
M85049/124-19S |
|
|
90°Strain Relief Clamp |
M85049/126-19S |
