Product Overview

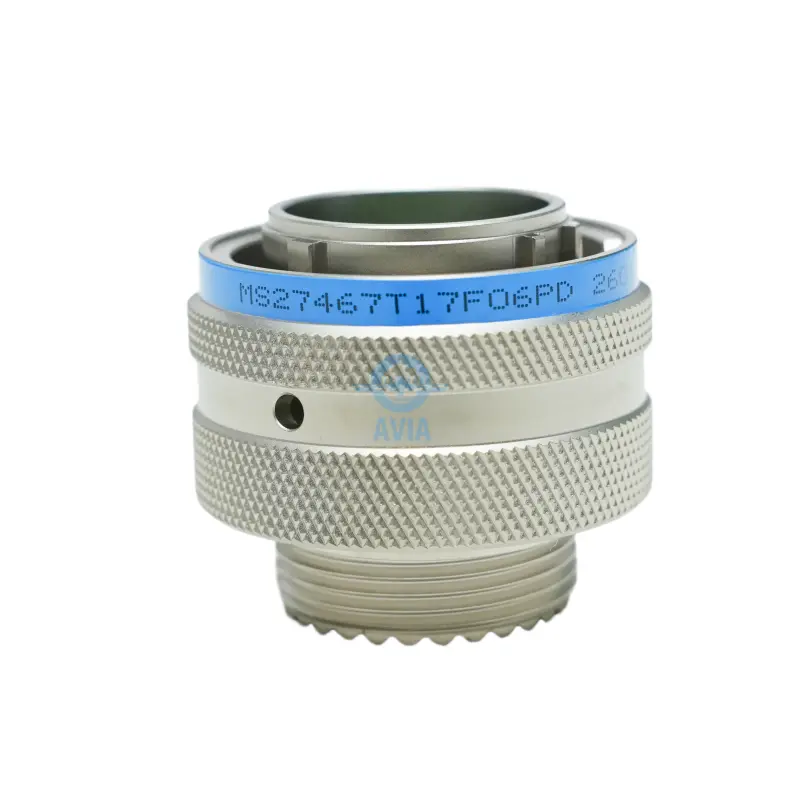

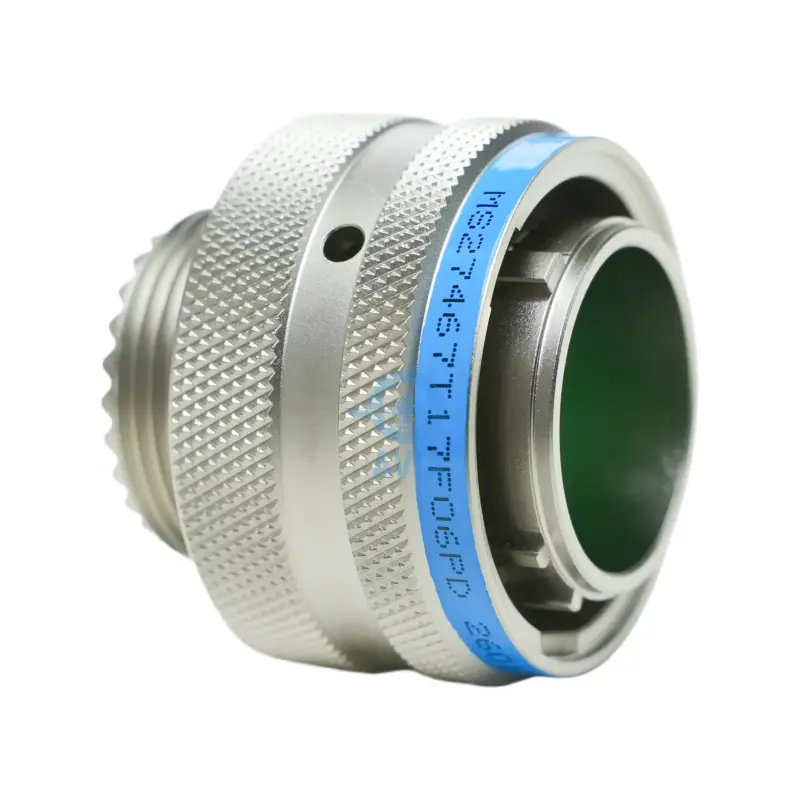

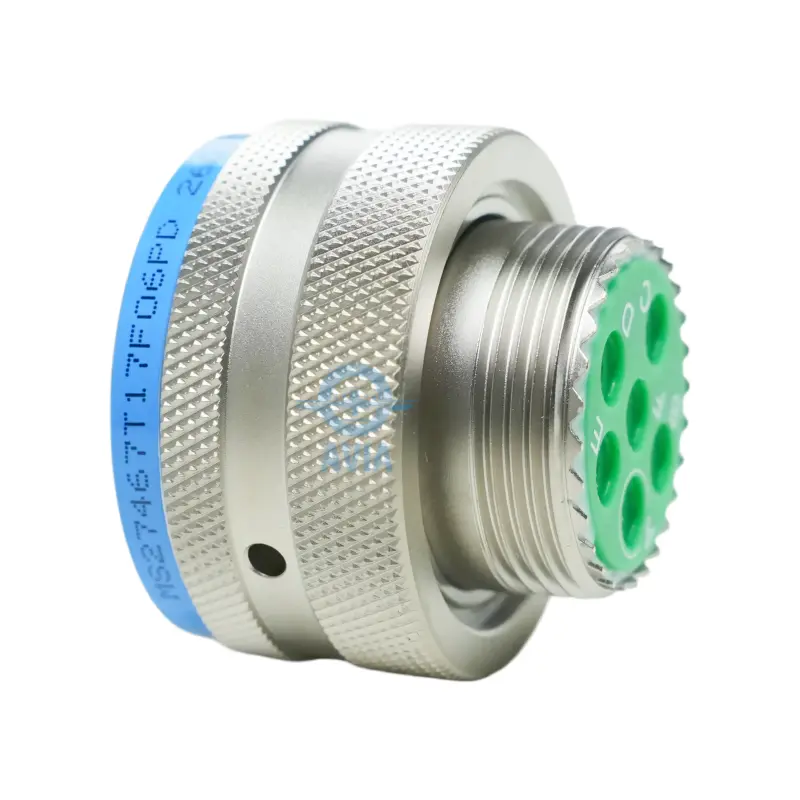

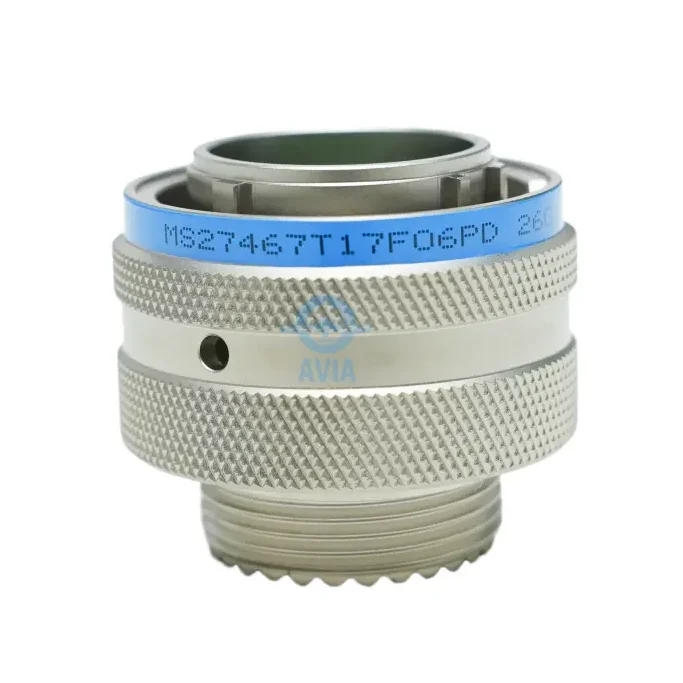

The MS27467T17F06PD is a high-reliability circular connector designed in accordance with MIL-DTL-38999 Series I requirements. Built for demanding aerospace, defense, industrial, and other harsh-environment applications, this connector provides reliable electrical performance and secure mechanical connection where resistance to vibration, moisture, and temperature variation is essential.

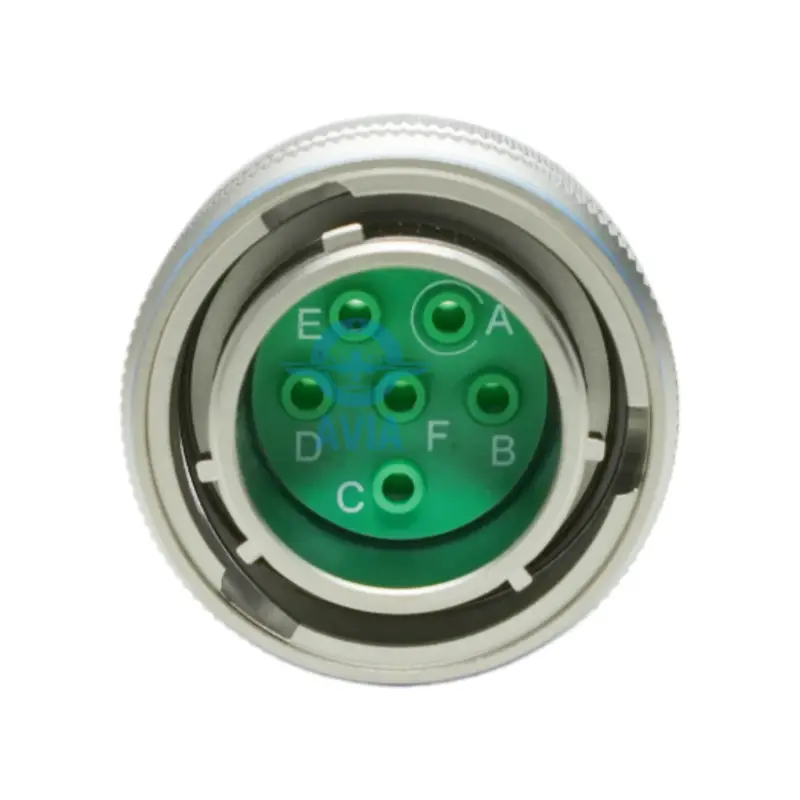

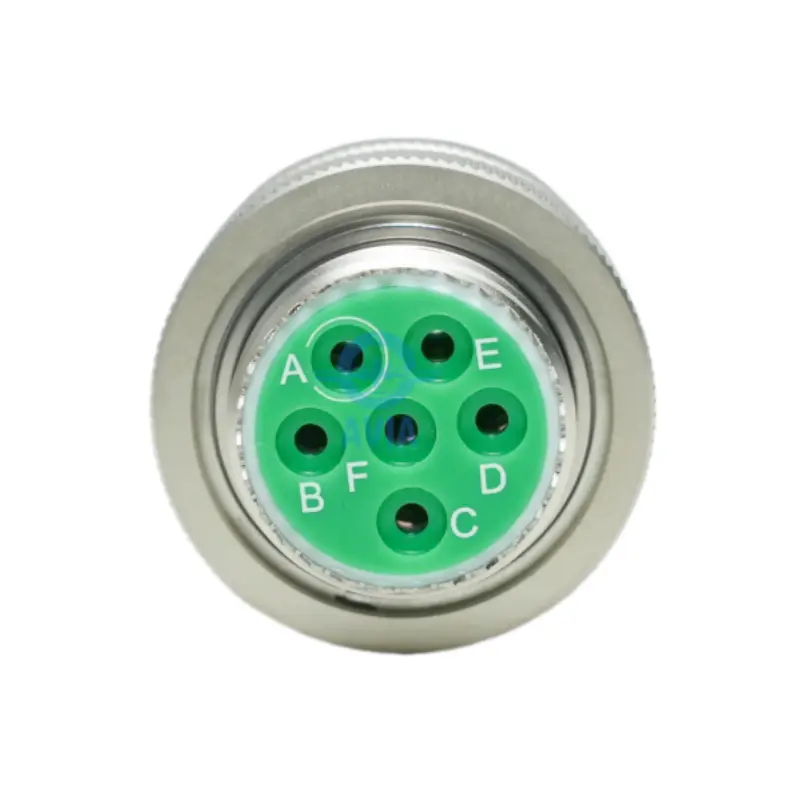

This part number designates a shell size 17 connector with a 17-6 insert arrangement and 6 pin contacts. The MS27467 Series I design features a plug configuration with a secure bayonet coupling mechanism for efficient mating and reliable retention. Its environmentally resistant construction is engineered to help protect the connector interface against moisture and contaminants, supporting dependable operation in demanding operating environments.
Part Number Breakdown
Stock & Availability
In Stock / Factory Lead Time
At AVIA Electronics, we understand that your project timelines depend on component reliability. To support your mission-critical operations, we maintain a proactive inventory strategy specifically optimized for the MS27467T17F06PD and our broader line of high-reliability connectors.
In-Stock (Ready to Ship): The MS27467T17F06PD is available through our supply network. Orders for available quantities are processed and dispatched promptly, helping minimize downtime for your production, maintenance, or prototype requirements.
Factory Lead Time: For large-volume requirements of the MS27467T17F06PD or quantities requiring replenishment, we provide precise, project-specific lead times. We work closely with our manufacturing partners to secure your allocation and provide transparent updates throughout the production and delivery process.
Supply Assurance: We prioritize long-term supply stability for our clients. If you require scheduled deliveries, bulk kitting, or buffer stock of the MS27467T17F06PD for multi-phase projects, our logistics team is ready to coordinate a personalized supply plan aligned with your specific project milestones.
Multiple shell sizes available
The MS27467T17F06PD is part of the MIL-DTL-38999 Series I platform, engineered to provide reliable electrical and mechanical performance across demanding system architectures. We understand that your designs require consistency and flexibility; therefore, the MS27467 Series I family is available in a broad range of shell sizes and contact configurations to support different application requirements.
Full Spectrum of Configurations: While the MS27467T17F06PD represents a specific shell size and contact arrangement, the broader MS27467 Series I product family is available in multiple shell sizes and contact configurations. This allows engineers to select suitable solutions for applications ranging from compact signal interfaces to higher-density electrical systems.
Secure Bayonet Coupling: The MS27467 Series I design incorporates a bayonet coupling mechanism that provides secure and efficient mating while supporting convenient installation and maintenance. This coupling system helps ensure reliable connector retention in demanding operating environments.
Precision Engineering: Regardless of the selected shell size or contact configuration, MS27467 Series I connectors are designed for dependable performance in demanding applications. Robust construction and secure mating help support reliable operation under vibration, moisture, mechanical stress, and temperature variation.
Custom configurations supported
At AVIA Electronics, we recognize that off-the-shelf components may not always meet the unique demands of your high-performance systems. While the MS27467T17F06PD represents a standard high-reliability configuration, we offer extensive support for custom engineering to help ensure our connector solutions integrate effectively into your specific design architecture.
Bespoke Contact & Insert Arrangements: If your project requires a non-standard contact layout or a specific combination of power and signal contacts, we can support customized insert arrangements to meet your electrical and mechanical requirements.
Specialized Plating & Material Options: Depending on your application requirements, we can assist with suitable contact plating, shell materials, and surface treatments to enhance corrosion resistance, electrical performance, environmental durability, or weight optimization.
Modified Shell Configurations: For space-constrained installations, we can support customized connector configurations, including modified mounting arrangements, shell dimensions, or compatible backshell solutions to simplify assembly and system integration.
Turnkey Kitting & Integration: We offer custom kitting services that combine the MS27467T17F06PD with application-specific accessories, such as protective covers, backshells, cable assemblies, and other related components, ready for streamlined integration into your production process.
Sample Policy & Flexible Order Support
At AVIA Electronics, we provide premium, high-reliability interconnect solutions. To help ensure the performance of the MS27467T17F06PD meets your precise engineering requirements, we offer a professional sampling service. We are committed to supporting your engineering development, qualification, and production needs throughout the product lifecycle.
Sample Availability: We provide samples of the MS27467T17F06PD for engineering evaluation, qualification, and prototype testing. A nominal sample fee may apply to cover material costs and individual handling, helping ensure that you receive verified parts representative of the production configuration.
No Minimum Order Quantity (No MOQ): We support projects of different sizes without imposing a minimum order quantity. Whether you need a single unit for evaluation or a small pilot batch for system integration, you can procure the quantity required for your current development or production phase without unnecessary overstocking.
Streamlined Fulfillment: Our logistics team handles every sample order with the same attention to packaging and product protection as larger shipments. Once your sample request is confirmed, we arrange secure, industrial-grade packaging and prompt dispatch to help keep your engineering and production schedules on track.
Logistics & Distribution Services
AVIA Electronics utilizes a reliable distribution framework to ensure the secure and accurate delivery of components to global destinations. Shipping options available for your order are calculated and displayed during the checkout process based on your specific requirements.
Supported Carriers & Services
We partner with established logistics providers to offer a range of delivery solutions:
Express Carriers: DHL, UPS, FedEx, SF Express
Postal & Standard Services: Belgium Post, Global Direct Standard Line, Registered Mail
Shipping Cost Calculation
Shipping charges are dynamically calculated at checkout to ensure accuracy. The final cost is determined by the following variables:
Package Weight: The total combined weight of the products and necessary protective packaging.
Service Selection: Costs vary depending on the chosen carrier and the selected service level (e.g., expedited express vs. standard delivery).
Destination: Rates are adjusted based on the specific country or region of delivery.
Technical Specifications
Basic Info.
|
Model NO. |
MS27467T17F06PD |
|---|---|
|
Application |
Industrial Automation |
|
Contact Material |
Copper |
|
Shell Material |
Aluminum alloy |
|
Shell Size |
17 |
|
Termination Style |
Crimp |
|
Contact Plating |
Gold |
|
Transport Package |
Standard Expect Package |
|
Origin |
China |
|
Production Capacity |
100000 |
|
Certification |
ISO 9001, ISO 14001, ISO 45001, CE, RoHS, REACH, IP68, 500-Hour Salt Spray Tested |
|---|---|
|
Contact Resistance |
≤ 12.0(mΩ) |
|
Surface Treatment |
Electroless Nickel Plating |
|
Processing and Customization |
OEM/ODM |
|
Shell Style |
Plug |
|
Mounting Style |
Plug |
|
Mating Style |
Triple-Start Threaded Coupling |
|
Grommet and seal |
Silicon rubber |
|
Endurance |
500 cycles |
|
Trademark |
AVIA |
|
HS Code |
8536901100 |
Packaging & Weight
|
Package Size |
41.00cm * 31.00cm * 30.00cm |
|---|---|
|
Package Gross Weight |
100g |
Mechanical Specifications
Vibration
|
Sine |
60g, with temperature cycling and simulated accessory (36 hours) |
|---|---|
|
Random |
44.1 grms in high temperature 49.5 grms in ambient temperature |
|
Shock |
At 3 ms half sinusoid, peak value of acceleration: 300g |
Contact Retention
|
22D# |
45N |
|---|---|
|
20# |
67N |
|
16# |
111N |
|
12# |
111N |
|
10# |
111N |
|
8 # |
111N |
Electrical Performance
Voltage rating (V)
|
Package Size |
M |
N |
I |
II |
|---|---|---|---|---|
|
Sea level |
1300 |
1000 |
1800 |
2300 |
|
21000M |
800 |
600 |
1000 |
1000 |
Contact resistance and rated current
|
Contact Size |
Diameter (mm) |
Resistance (mΩ) |
Current (A) |
|---|---|---|---|
|
22D# |
Φ 0.76 |
≤ 12.0 |
5.0 |
|
20# |
Φ 1.00 |
≤ 5.0 |
7.5 |
|
16# |
Φ 1.60 |
≤ 2.5 |
13.0 |
|
12# |
Φ 2.40 |
≤ 1.5 |
23.0 |
|
10# |
Φ 3.15 |
≤ 1.0 |
40.0 |
Environmental Performance
Operating temperature
|
W class |
-65 oC ~ +175 oC |
|---|---|
|
K, F class |
-65 oC ~ +200 oC |
Salt spray
|
F class |
48h |
|---|---|
|
W class |
500h |
|
K class |
1000h |
Typical Applications
- Military Communication
- Aerospace Systems
- UAV & Defense Electronics
- Industrial Automation
Cross-Reference & Mating
Compatible Brands & Mating
|
Brands |
Equivalents |
Mates |
|---|---|---|
|
Amphenol |
LJT06RE17-6PD(453) |
LJT00RE17-6SD(453) |
|
Souriau |
- |
- |
|
ITT Cannon |
- |
- |
|
Aero/Conesys |
- |
- |
|
Deutsch |
- |
- |
Compatible Backshells & Caps
|
Type |
Backshells |
Dust Caps |
|---|---|---|
|
Straight, Grommet Nut |
M85049/14-19S |
D38999/33K19N |
|
45°Quick Clamp |
M85049/15-19S |
|
|
90°Quick Clamp |
M85049/16-19S |
|
|
Straight, Spin Coupling Environmental EMI/RFI Backshell |
M85049/18-19S |
|
|
Straight, Spin Coupling Non-Environmental EMI/RFI Backshell |
M85049/19-19S |
|
|
Straight Crimp Ring Adapter |
M85049/20-19S |
|
|
Straight, Spin Coupling Non-Environmental Backshell |
M85049/21-19S |
|
|
Straight Strain Relief Clamp |
M85049/38-19S |
|
|
90°Strain Relief Clamp |
M85049/39-19S |
|
|
45°, Spin Coupling Environmental EMI/RFI Backshell |
M85049/78-19S |
|
|
90°, Spin Coupling Environmental EMI/RFI Backshell |
M85049/79-19S |
|
|
Straight, Spin Coupling, cont. Shrink Boot Adapter |
M85049/69-19S |
|
|
Straight, Self-Lock Band Lock Adapter |
M85049/88-19S |
|
|
45°, Self-Lock Band Lock Adapter |
M85049/89-19S |
|
|
90°, Self-Lock Band Lock Adapter |
M85049/90-19S |
|
|
Straight Pre-Shield Adapter |
M85049/115-19S |
|
|
90°Pre-Shield Adapter |
M85049/117-19S |
|
|
Straight, Strain Relief Clamp |
M85049/124-19S |
|
|
90°Strain Relief Clamp |
M85049/126-19S |
Same Pin Count – Multiple Connector Options
Technical Assembly Kit Included
Protecting Your Connection Integrity
Improper tools often lead to damaged terminals and costly downtime. To ensure the performance of your MIL-DTL-38999 and MIL-DTL-26482 series assemblies, we include a Complimentary AVIA Precision Assembly Kit with every order.
By providing this kit at no additional cost, we ensure that every contact is handled with the correct tooling, maintaining the full electrical specifications and long-term reliability of your system.
The Complimentary AVIA Precision Assembly Kit
High-Reliability Terminal Contacts:
Engineered for optimal electrical and mechanical fit.
Dedicated Extraction Tooling:
Ensures safe, non-destructive handling of all contacts.
Compliance
Quality Management Certifications
Our quality management system, certified to ISO 9001, ensures consistent manufacturing processes and reliable product quality. AVIA Electronics follows internationally recognized quality standards — including ISO 9001 for quality management, ISO 14001 for environmental management, and ISO 45001 for occupational health and safety — to deliver dependable connector solutions.
Product Compliance Certifications
Our connectors comply with international environmental and safety requirements, ensuring reliable and compliant solutions for global markets. AVIA Electronics products meet CE marking requirements, RoHS directive standards for restricted hazardous substances, and REACH regulation requirements for chemical safety, supporting seamless integration into global supply chains.
Product Test Reports
Our products undergo rigorous testing to verify environmental protection, durability, and performance in demanding applications. Connectors are validated to IP68 waterproof and dust-proof ratings and undergo 500-hour salt spray testing to confirm corrosion resistance in harsh military, aerospace, and marine environments.
