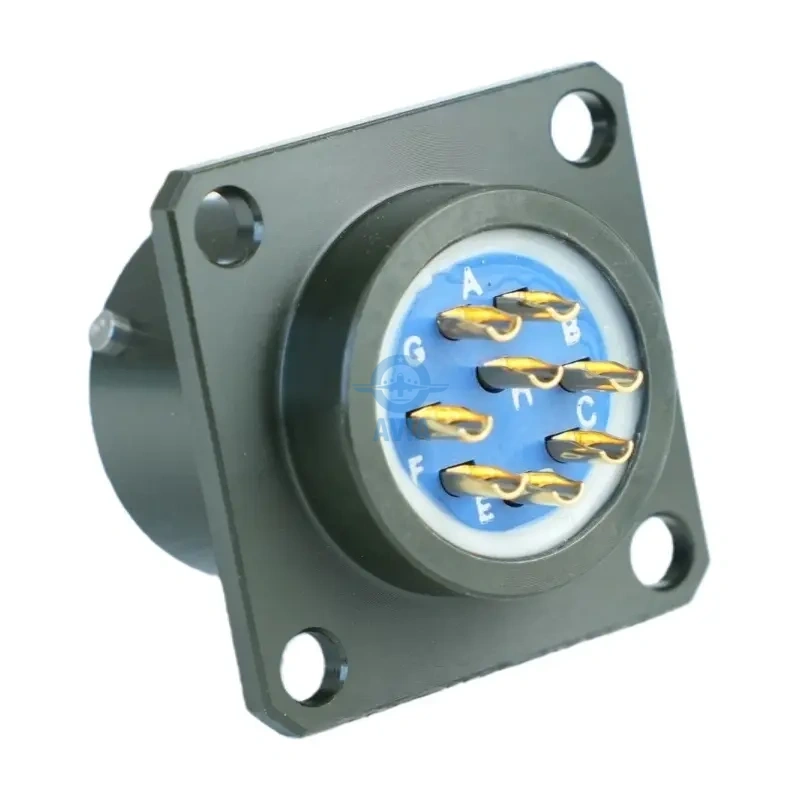

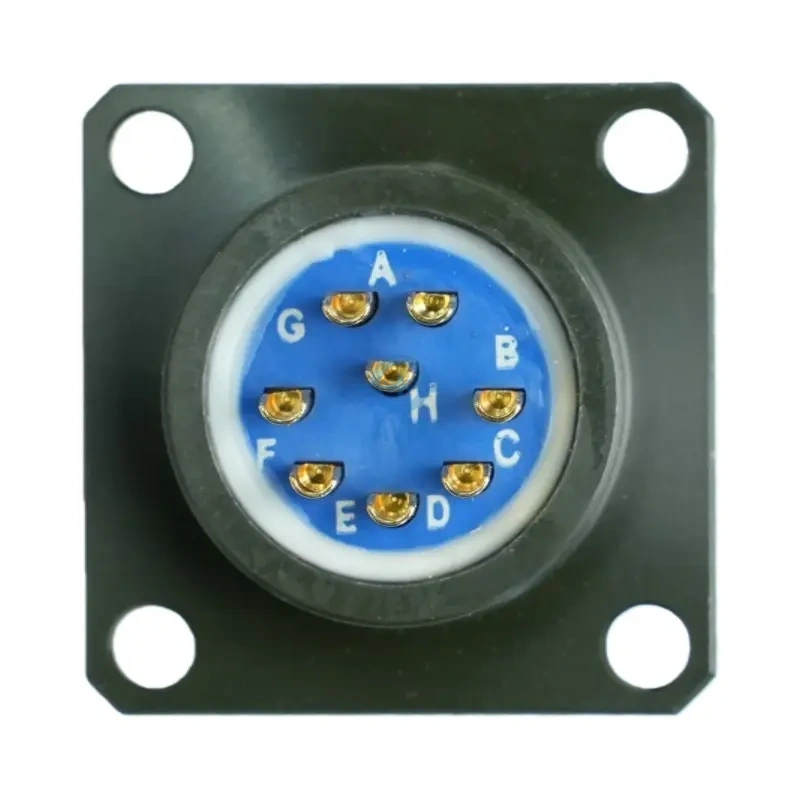

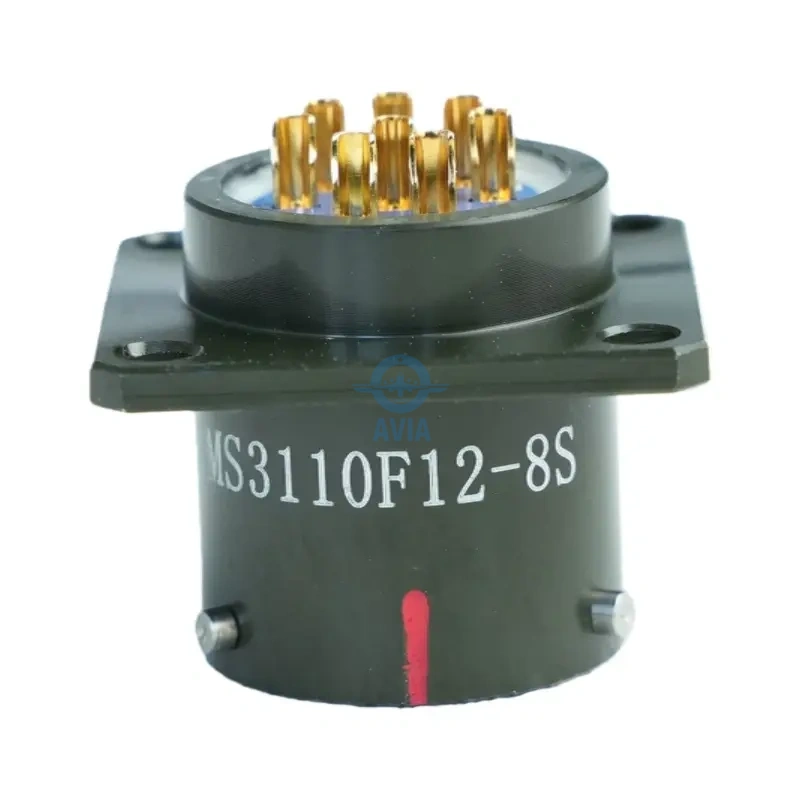

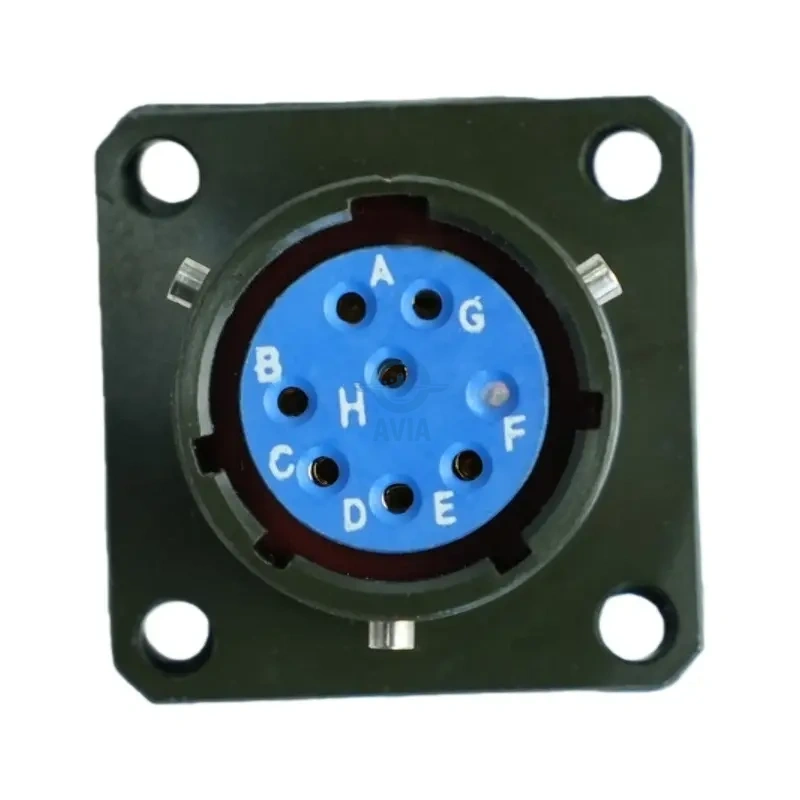

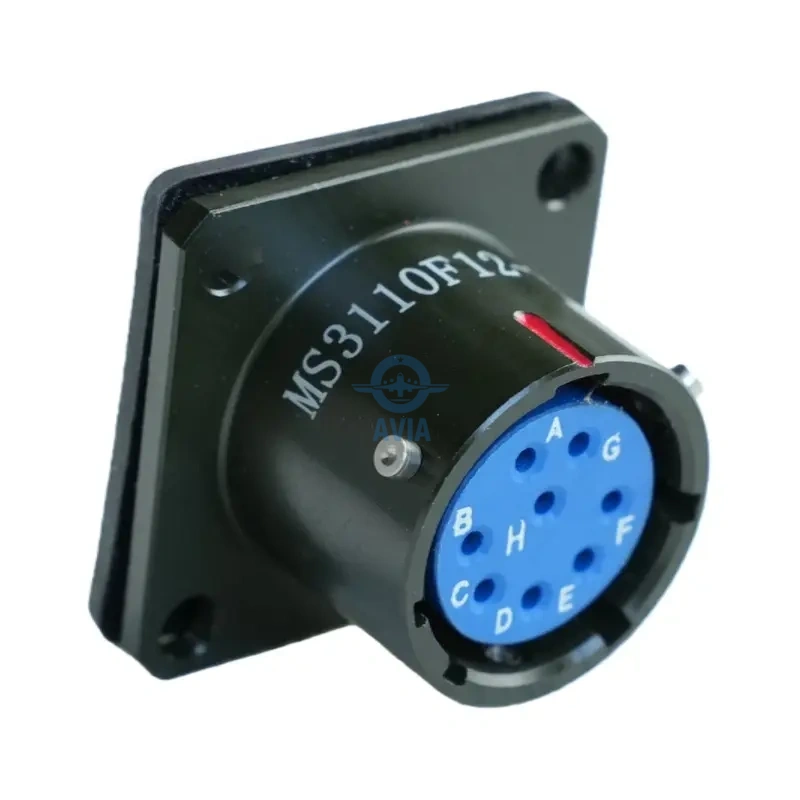

MS3110F12-8S Connector | MIL-DTL-26482 Series I Wall Mount
MS3110F12-8S is a 8-pin wall mount receptacle for aviation. MIL-DTL-26482 Series I compliant with bayonet lock. [Click Here! Get a Quick Quote. Response in 15 Min]
999999 in stock
Share:
Product Categories
Request a Quote
Product Overview
The MS3110F12-8S is a rugged circular connector designed for reliable electrical interconnection in military, aerospace, industrial, and other demanding applications. Built for harsh operating environments, this connector provides dependable performance where resistance to vibration, shock, moisture, and temperature variations is essential.
This part number designates an MS3110 connector with a shell size 12, an 8-contact insert arrangement, and socket contacts (S). The connector features a robust circular shell construction and secure coupling design to provide stable mating and reliable electrical continuity. Its durable construction and environmental protection make the MS3110F12-8S suitable for military equipment, aerospace systems, ground vehicles, industrial control equipment, and other applications requiring dependable circular electrical connections.
Part Number Breakdown
Stock & Availability
In Stock / Factory Lead Time
At AVIA Electronics, we understand that your project timelines depend on component reliability. To support your mission-critical operations, we maintain a proactive inventory strategy specifically optimized for the MS3110F12-8S and our broader line of high-reliability connectors.
In-Stock (Ready to Ship): The MS3110F12-8S is currently verified in our central facility. Orders placed for available items are processed and dispatched within 24–48 business hours, helping minimize downtime for your production, maintenance, or system integration schedules.
Factory Lead Time: For large-volume requirements of the MS3110F12-8S or items currently undergoing replenishment, we provide precise, project-specific lead times. We work closely with our manufacturing partners to secure your required allocation and provide transparent order tracking from production through delivery.
Supply Assurance: We prioritize long-term supply stability for our customers. If you require scheduled deliveries, bulk kitting, or buffer stock of the MS3110F12-8S for multi-phase projects, our logistics team can coordinate a customized supply plan aligned with your production and project milestones.
Multiple shell sizes available
The MS3110F12-8S is part of the widely used MS3110 circular connector family, designed to provide reliable electrical interconnection across military, aerospace, industrial, and other demanding applications. We understand that different system architectures require consistent and dependable connector solutions; therefore, our MS3110 connector offerings are available in a range of configurations to accommodate different application requirements.
Multiple Configurations: While the MS3110F12-8S represents a specific configuration, the broader MS3110 family is available with different shell sizes, contact arrangements, and connector configurations. This allows engineers to select suitable solutions for applications ranging from compact control interfaces to equipment power and signal connections.
Reliable Interface Design: MS3110 connectors are designed with a robust circular construction and secure coupling interface to provide stable electrical connections during installation and operation. Their practical configuration supports reliable integration into military equipment, aerospace systems, ground vehicles, industrial control equipment, and other demanding applications.
Precision Engineering: Regardless of the configuration selected, our MS3110 connector solutions are manufactured with careful attention to dimensional accuracy and assembly quality. Components are designed to provide dependable electrical continuity and mechanical stability under demanding operating conditions, including vibration, shock, moisture, and temperature variations.
Custom configurations supported
At AVIA Electronics, we recognize that off-the-shelf components may not always meet the unique demands of your high-performance systems. While the MS3110F12-8S represents our standard high-reliability configuration, we offer extensive support for custom engineering and sourcing to ensure our connector solutions integrate effectively into your specific design architecture.
Bespoke Contact & Insert Arrangements: If your project requires a specific contact layout or a customized combination of power and signal contacts, we can assist with suitable contact and insert configurations to meet your electrical and mechanical requirements.
Specialized Plating & Material Options: Depending on your application requirements, we can support different material and surface-finish options, including specialized plating for enhanced corrosion resistance, environmental durability, and reliable electrical performance in demanding operating conditions.
Modified Shell & Mounting Requirements: For space-constrained or application-specific installations, we can assist with customized shell configurations, mounting features, backshell solutions, and other mechanical adaptations designed to simplify installation and system integration.
Turnkey Kitting & Integration: We offer custom kitting services where the MS3110F12-8S can be supplied together with application-specific accessories, such as protective covers, backshells, cable assemblies, or other required components, ready for streamlined integration into your production process.
Sample Policy & Flexible Order Support
At AVIA Electronics, we provide premium, high-reliability interconnect solutions. To ensure the performance of the MS3110F12-8S meets your precise engineering requirements, we offer a professional sampling service. We are committed to supporting innovation at every stage of your product lifecycle.
Sample Availability: We provide samples of the MS3110F12-8S for engineering qualification and prototype testing. A nominal sample fee may apply to cover material costs and individual handling. This helps ensure that you receive carefully inspected parts suitable for evaluation and representative of the intended production configuration.
No Minimum Order Quantity (No MOQ): We believe in supporting innovation regardless of project scale. Whether you need a single unit for a critical repair or a small pilot batch for system integration, we can support orders without a minimum order quantity. You have the flexibility to procure the quantity required for your current development or production phase without unnecessary overstocking.
Streamlined Fulfillment: Our logistics team treats every sample order with the same attention to quality and packaging as bulk shipments. From the moment your sample request is processed, we provide secure, protective packaging and efficient shipment processing, helping you maintain project momentum from evaluation through production.
Logistics & Distribution Services
AVIA Electronics utilizes a reliable distribution framework to ensure the secure and accurate delivery of components to global destinations. Shipping options available for your order are calculated and displayed during the checkout process based on your specific requirements.
Supported Carriers & Services
We partner with established logistics providers to offer a range of delivery solutions:
Express Carriers: DHL, UPS, FedEx, SF Express
Postal & Standard Services: Belgium Post, Global Direct Standard Line, Registered Mail
Shipping Cost Calculation
Shipping charges are dynamically calculated at checkout to ensure accuracy. The final cost is determined by the following variables:
Package Weight: The total combined weight of the products and necessary protective packaging.
Service Selection: Costs vary depending on the chosen carrier and the selected service level (e.g., expedited express vs. standard delivery).
Destination: Rates are adjusted based on the specific country or region of delivery.
Technical Specifications
Basic Info.
|
Model NO. |
MS3110F12-8S |
|---|---|
|
Application |
Industrial Automation |
|
Contact Material |
Copper |
|
Shell Material |
Aluminum alloy |
|
Shell Size |
12 |
|
Termination Style |
Solder |
|
Contact Plating |
Gold |
|
Transport Package |
Standard Expect Package |
|
Origin |
China |
|
Production Capacity |
100000 |
|
Certification |
ISO 9001, ISO 14001, ISO 45001, CE, RoHS, REACH, IP68, 500-Hour Salt Spray Tested |
|---|---|
|
Contact Resistance |
≤ 12.0(mΩ) |
|
Surface Treatment |
Olive green cadmium plating |
|
Processing and Customization |
OEM/ODM |
|
Shell Style |
Wall Mount Receptacle |
|
Mounting Style |
Wall Mount Receptacle |
|
Mating Style |
quick bayonet coupling |
|
Grommet and seal |
Silicon rubber |
|
Endurance |
500 cycles |
|
Trademark |
AVIA |
|
HS Code |
8536901100 |
Packaging & Weight
|
Package Size |
41.00cm * 31.00cm * 30.00cm |
|---|---|
|
Package Gross Weight |
100g |
Mechanical Specifications
Vibration
|
Sine |
60g, with temperature cycling and simulated accessory (36 hours) |
|---|---|
|
Random |
44.1 grms in high temperature 49.5 grms in ambient temperature |
|
Shock |
At 3 ms half sinusoid, peak value of acceleration: 300g |
Contact Retention
|
22D# |
45N |
|---|---|
|
20# |
67N |
|
16# |
111N |
|
12# |
111N |
|
10# |
111N |
|
8 # |
111N |
Electrical Performance
Voltage rating (V)
|
Package Size |
M |
N |
I |
II |
|---|---|---|---|---|
|
Sea level |
1300 |
1000 |
1800 |
2300 |
|
21000M |
800 |
600 |
1000 |
1000 |
Contact resistance and rated current
|
Contact Size |
Diameter (mm) |
Resistance (mΩ) |
Current (A) |
|---|---|---|---|
|
22D# |
Φ 0.76 |
≤ 12.0 |
5.0 |
|
20# |
Φ 1.00 |
≤ 5.0 |
7.5 |
|
16# |
Φ 1.60 |
≤ 2.5 |
13.0 |
|
12# |
Φ 2.40 |
≤ 1.5 |
23.0 |
|
10# |
Φ 3.15 |
≤ 1.0 |
40.0 |
Environmental Performance
Operating temperature
|
W class |
-65 oC ~ +175 oC |
|---|---|
|
K, F class |
-65 oC ~ +200 oC |
Salt spray
|
F class |
48h |
|---|---|
|
W class |
500h |
|
K class |
1000h |
Typical Applications
- Military Communication
- Aerospace Systems
- UAV & Defense Electronics
- Industrial Automation
Cross-Reference & Mating
Compatible Brands & Mating
|
Brands |
Equivalents |
Mates |
|---|---|---|
|
Amphenol |
62GB-10F12-8SN |
62GB-16F12-8PN |
|
Souriau |
85100F12-8SN |
85106F12-8PN |
|
ITT Cannon |
- |
- |
|
Aero/Conesys |
- |
- |
|
Deutsch |
- |
- |
Compatible Backshells & Caps
|
Type |
Backshells |
Dust Caps |
|---|---|---|
|
Straight, Grommet Nut |
M85049/14-19S |
D38999/33K19N |
|
45°Quick Clamp |
M85049/15-19S |
|
|
90°Quick Clamp |
M85049/16-19S |
|
|
Straight, Spin Coupling Environmental EMI/RFI Backshell |
M85049/18-19S |
|
|
Straight, Spin Coupling Non-Environmental EMI/RFI Backshell |
M85049/19-19S |
|
|
Straight Crimp Ring Adapter |
M85049/20-19S |
|
|
Straight, Spin Coupling Non-Environmental Backshell |
M85049/21-19S |
|
|
Straight Strain Relief Clamp |
M85049/38-19S |
|
|
90°Strain Relief Clamp |
M85049/39-19S |
|
|
45°, Spin Coupling Environmental EMI/RFI Backshell |
M85049/78-19S |
|
|
90°, Spin Coupling Environmental EMI/RFI Backshell |
M85049/79-19S |
|
|
Straight, Spin Coupling, cont. Shrink Boot Adapter |
M85049/69-19S |
|
|
Straight, Self-Lock Band Lock Adapter |
M85049/88-19S |
|
|
45°, Self-Lock Band Lock Adapter |
M85049/89-19S |
|
|
90°, Self-Lock Band Lock Adapter |
M85049/90-19S |
|
|
Straight Pre-Shield Adapter |
M85049/115-19S |
|
|
90°Pre-Shield Adapter |
M85049/117-19S |
|
|
Straight, Strain Relief Clamp |
M85049/124-19S |
|
|
90°Strain Relief Clamp |
M85049/126-19S |
