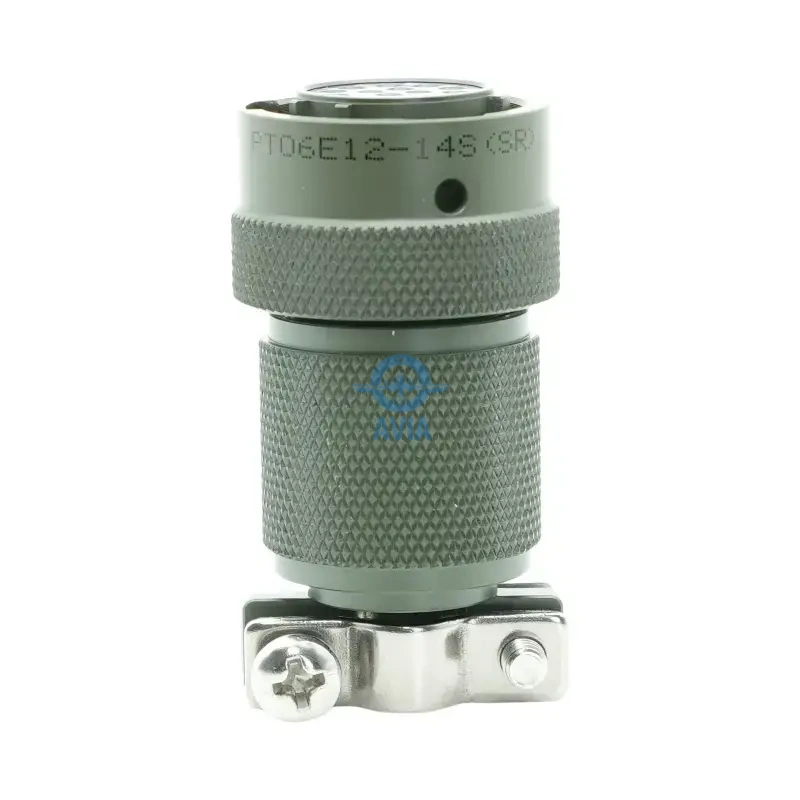

PT06E12-14S(SR) | 14-Socket MIL-DTL-26482 Series I Plug with Strain Relief (Size 12)
The PT06E12-14S(SR) is a size 12 MIL-DTL-26482 Series I straight plug with 14 socket contacts and an integrated strain relief (SR) clamp. Features “E” class environmental sealing.
999999 in stock
Share:
Product Categories
Request a Quote
PT06E12-14S(SR) Efficiency of High-Density Connectivity in Mobile Grids
The PT06E12-14S(SR) is a high-performance straight plug designed for specialized electronic grids that require the maximum possible concentration of signal paths within a compact size 12 shell. Utilizing advanced insert engineering, this connector facilitates fourteen independent conductive paths through its ultra-high-density 12-14 arrangement. Unlike fixed bulkhead receptacles, the PT06E12-14S(SR) is optimized for cable-end termination, acting as a mission-critical interface for portable telemetry systems and multi-sensor arrays. By housing fourteen Size 22D socket contacts, it provides a sophisticated female interface that allows for immense data throughput while maintaining the streamlined profile required for mobile tactical equipment.
Key Specifications
Shell Material | Voltage Rating | Current Rating | Operating Temp | Ingress Protection | Mating Cycles | Keying & Polarization | Coupling |
|---|---|---|---|---|---|---|---|
Aluminum alloy | ~1000 VAC | ~23 A | -65 °C to +200 °C | IP67 | 500 | N | quick bayonet coupling |
Tactical Environmental Defense and E-Class Protection
The “E” class designation of the PT06E12-14S(SR) signifies a superior environmental construction that combines internal precision sealing with the ability to withstand harsh external elements. This model incorporates an advanced interfacial seal and a high-performance dielectric insert designed to block the ingress of moisture, fine particulates, and chemical vapors. The environmental resistance ensures that the fourteen high-density conductive channels remain isolated from atmospheric contaminants, even during rapid temperature fluctuations. The aluminum housing is treated with olive drab cadmium plating, providing a certified multi-layered defense against corrosion and surface oxidation in salt-heavy or high-humidity operational zones.
Integrated Strain Relief and Mechanical Longevity

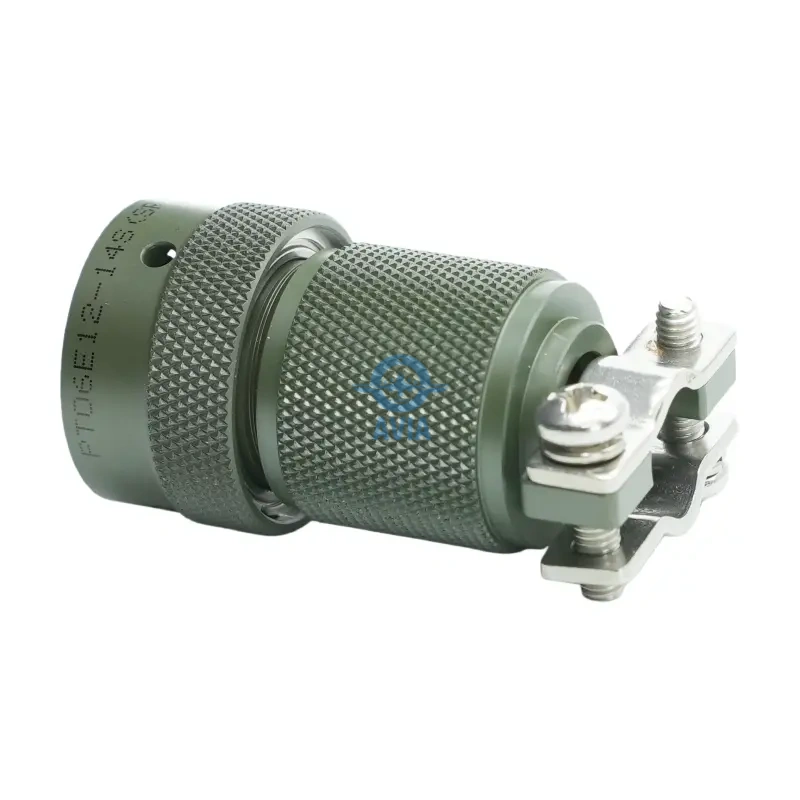

A defining technical feature of the PT06E12-14S(SR) is the inclusion of the (SR) strain relief cable clamp backshell. In environments where equipment is frequently deployed or cables are subject to accidental pulling, twisting, and repetitive motion, this mechanism absorbs physical tension. By securing the cable jacket firmly, the strain relief ensures that mechanical load is not transferred to the fourteen delicate solder or crimp joints at the socket interface, significantly reducing the risk of fatigue-related failures. For field-deployed communication arrays and mobile industrial machinery, the structural security provided by the SR backshell is a vital factor in maintaining consistent system uptime.
Precision Socket Fidelity and 12-14 Layout Performance

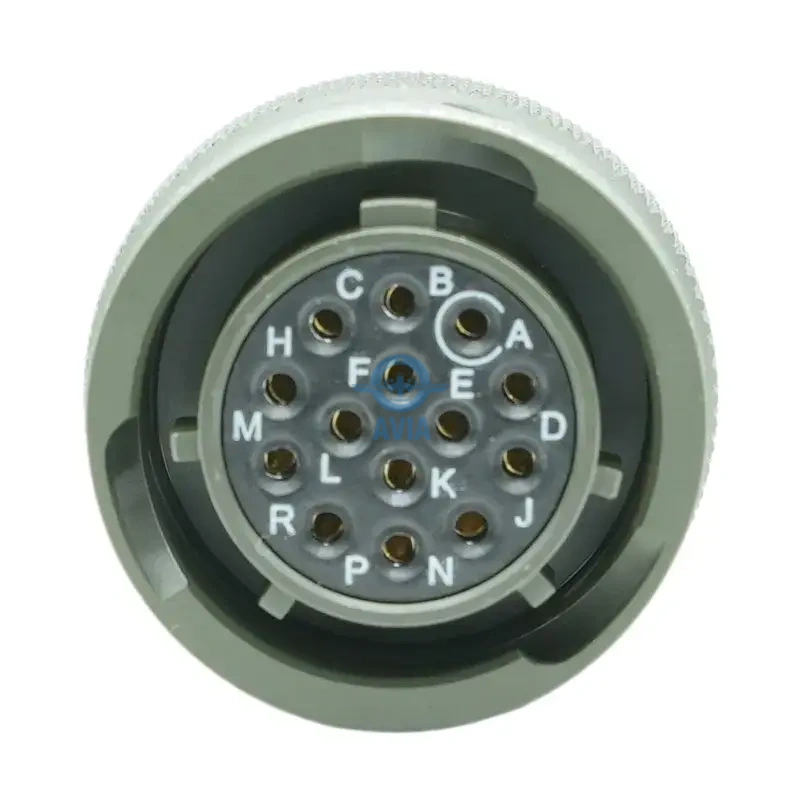

Within the size 12 housing, the PT06E12-14S(SR) employs fourteen Size 22D socket contacts, offering a reliable female interface for a variety of digital signal sets and low-level analog data. These sockets are precision-machined from copper alloy and finished with high-grade gold plating to maintain an ultra-low-resistance electrical path throughout the equipment’s lifespan. The socket design provides inherent electrical safety, as the conductive elements are recessed within the dielectric insert, preventing accidental short-circuits during the mating process. The high-performance dielectric insert provides exceptional insulation resistance between the fourteen channels, preventing electrical crosstalk and signal leakage in sensitive grids.
Rapid Bayonet Coupling and EMI Shielding Integrity
The PT06E12-14S(SR) utilizes a three-point bayonet coupling system, allowing for rapid and secure mating with a simple partial turn of the coupling nut. This mechanical interface provides tactile and audible confirmation that the connection is fully locked, which is essential for rapid assembly in high-stress or low-visibility field conditions. Furthermore, the conductive nature of the cadmium-plated aluminum shell provides essential EMI and RFI shielding, protecting the fourteen signal lines from external electromagnetic interference. This combination of physical durability, mechanical cable protection, and electrical isolation makes the PT06E12-14S(SR) a dependable choice for ruggedized mobile environments where signal integrity is paramount.
FAQ
What does the (SR) stand for in the PT06E12-14S(SR) part number?
What does the (SR) stand for in the PT06E12-14S(SR) part number?
The (SR) suffix indicates that the plug is equipped with a Strain Relief cable clamp backshell, which protects the internal wiring connections from damage caused by pulling or tension.
How many signals can be transmitted through this connector?
How many signals can be transmitted through this connector?
The 12-14 layout supports fourteen independent signal channels, making it one of the highest density configurations available for the size 12 shell.
Is this plug intermateable with other MIL-DTL-26482 Series I connectors?
Is this plug intermateable with other MIL-DTL-26482 Series I connectors?
Yes, it is designed to mate with any MIL-DTL-26482 Series I pin receptacle (such as PT00, PT02, or MS3112) of the same shell size (12) and layout (14).
What is the benefit of the socket contacts in this mobile plug?
What is the benefit of the socket contacts in this mobile plug?
Socket contacts are recessed within the insulator, offering a “dead-face” safety feature that prevents accidental shorting and protects the conductive pins from physical damage when unmated.
What environmental protection does the cadmium finish provide?
What environmental protection does the cadmium finish provide?
The olive drab cadmium finish over electroless nickel provides superior corrosion resistance, particularly in salt-spray environments, and maintains electrical conductivity for shielding.
