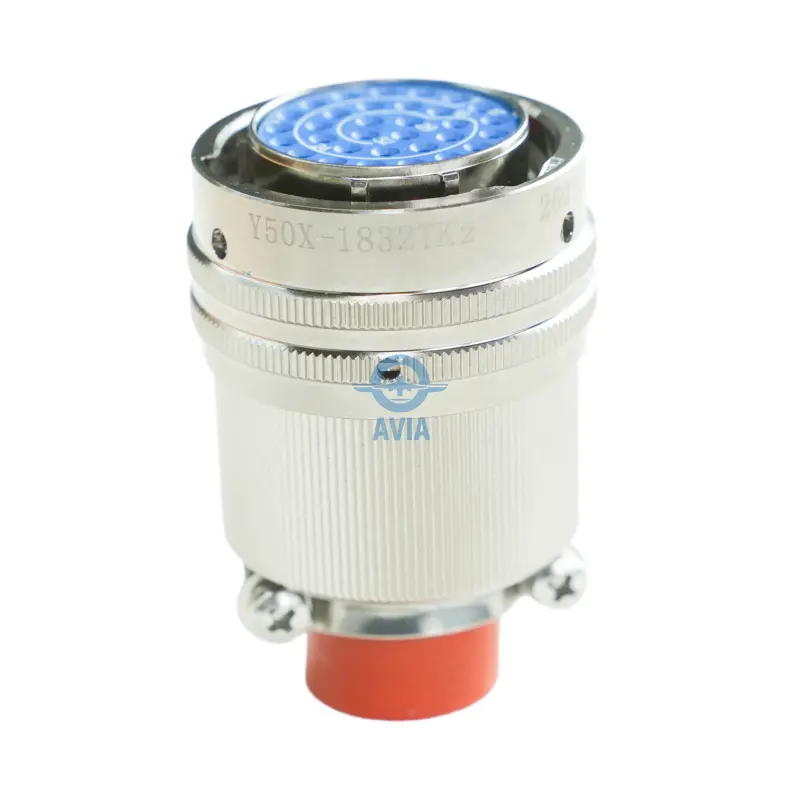

Y50X-1832TK2 | 32-Socket High-Density Bayonet Plug with Type 2 Backshell

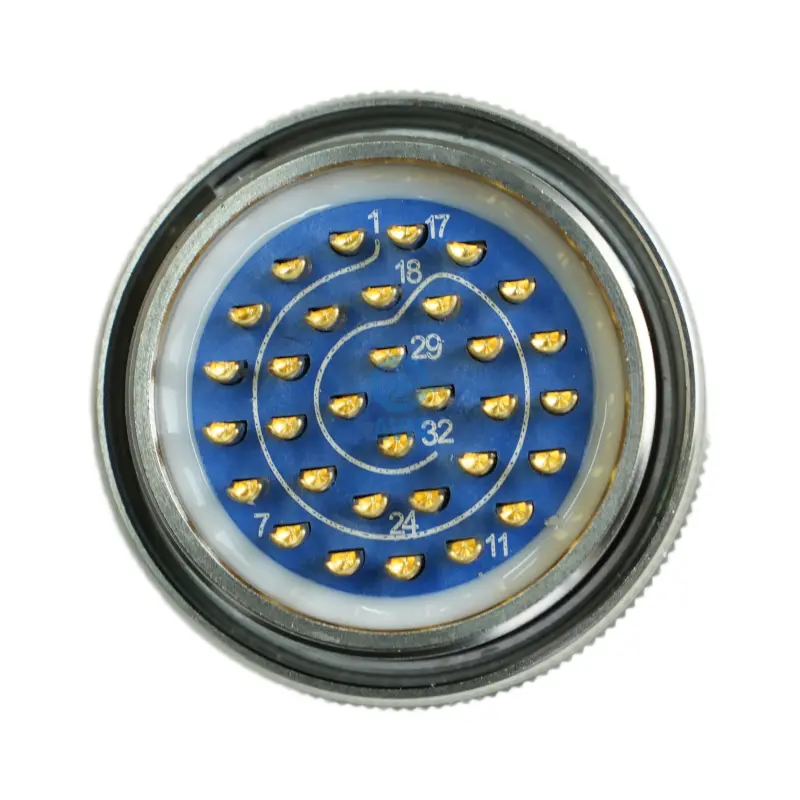

The Y50X-1832TK2 is a size 18 circular plug featuring a 32-socket high-density arrangement. Equipped with an “X” series environmental seal and a Type 2 strain relief backshell.
999999 in stock
Share:
Product Categories
Request a Quote
Product Overview
The Y50X-1832TK2 is a circular electrical connector designed for reliable interconnection in demanding military, aerospace, industrial, and other high-reliability applications. Engineered for secure electrical performance in harsh environments, this connector is suitable for applications where resistance to vibration, moisture, dust, and temperature variations is essential.
This part number designates a Y50 series connector with a 18 shell size, 32-contact configuration, and TK2 configuration. The Y50 series construction features a secure coupling mechanism, robust metal shell construction, and environmental sealing to help protect against moisture and contaminant ingress. Designed for dependable performance in demanding operating conditions, the Y50X-1832TK2 is suitable for equipment requiring durable, stable, and reliable electrical connections.
Part Number Breakdown
Stock & Availability
In Stock / Factory Lead Time
At AVIA Electronics, we understand that your project timelines depend on component reliability. To support your mission-critical operations, we maintain a proactive inventory strategy specifically optimized for the Y50X-1832TK2 and our broader line of high-reliability connectors.
In-Stock (Ready to Ship): The Y50X-1832TK2 is currently verified in our central facility. Orders placed for these items are processed and dispatched within 24–48 business hours, ensuring minimal downtime for your production or maintenance schedules.
Factory Lead Time: For large-volume requirements of the Y50X-1832TK2 or items currently undergoing replenishment, we provide precise, project-specific lead times. We leverage our direct manufacturing partnerships to secure your allocation, offering transparent tracking from the production line to your facility.
Supply Assurance: We prioritize long-term supply stability for our clients. If you require scheduled deliveries, bulk kitting, or buffer stock of the Y50X-1832TK2 for multi-phase projects, our logistics team is ready to coordinate a personalized supply plan aligned with your specific project milestones.
Multiple shell sizes available
The Y50X-1832TK2 is part of the Y50 series of high-reliability circular connectors, engineered for dependable performance across demanding system architectures. We understand that your designs require consistency; therefore, our connector solutions are available in a range of configurations and sizes to help ensure an appropriate mechanical and electrical fit for different applications.
Comprehensive Configuration Options: While the Y50X-1832TK2 represents a specific configuration, the wider Y50 series is available in multiple shell sizes and contact arrangements. This allows engineers to select suitable connector configurations for applications ranging from compact equipment interfaces to demanding power and signal interconnection systems without compromising on reliability.
Secure Coupling System: The Y50 series incorporates a secure coupling mechanism designed to provide reliable mating and stable electrical connections in demanding operating environments. This helps maintain connection integrity during equipment operation where vibration and mechanical stress may be present.
Precision Engineering: Regardless of the configuration selected, Y50 series connectors are designed for reliable performance under demanding environmental conditions. Components can be engineered to withstand factors such as vibration, moisture, dust, and temperature variations, helping maintain stable electrical performance across a wide range of applications.
Custom configurations supported
At AVIA Electronics, we recognize that off-the-shelf components may not always meet the unique demands of your high-performance systems. While the Y50X-1832TK2 represents a specific high-reliability configuration, we offer extensive support for custom engineering to help ensure our connector solutions integrate effectively into your specific design architecture.
Custom Contact & Insert Arrangements: If your project requires a specific contact layout or a particular combination of power and signal contacts, we can support customized contact and insert configurations to meet your electrical and mechanical requirements.
Specialized Plating & Material Options: Beyond standard shell materials and finishes, we can support selected material and plating options for enhanced corrosion resistance, environmental protection, EMI shielding, or other application-specific requirements.
Modified Shell Configurations: For space-constrained or application-specific installations, we can assist with customized shell configurations, mounting requirements, backshell solutions, and other mechanical modifications designed to simplify equipment integration.
Turnkey Kitting & Integration: We offer custom kitting services where the Y50X-1832TK2 can be supplied together with application-specific accessories, such as protective covers, backshells, cable assemblies, or other complementary components, helping streamline procurement and production integration.
Sample Policy & Flexible Order Support
At AVIA Electronics, we provide premium, high-reliability interconnect solutions. To ensure the performance of the Y50X-1832TK2 meets your precise engineering requirements, we offer a professional sampling service. We are committed to supporting innovation at every stage of your product lifecycle.
Sample Availability: We provide samples of the Y50X-1832TK2 for engineering qualification, fit verification, and prototype testing. As a high-reliability connector, a nominal sample fee may apply to cover material costs and individual handling. This helps ensure that you receive verified, representative parts for your engineering evaluation.
No Minimum Order Quantity (No MOQ): We believe in supporting innovation regardless of scale. Whether you need a single unit for a critical repair or a small pilot batch for system integration, we operate with no minimum order quantity. You have the flexibility to procure exactly what your current project phase requires without the burden of unnecessary overstocking.
Streamlined Fulfillment: Our logistics team treats every sample order with the same rigor as bulk shipments. From the moment your sample request is processed, we ensure secure, industrial-grade packaging and rapid dispatch, helping you maintain your project momentum.
Logistics & Distribution Services
AVIA Electronics utilizes a reliable distribution framework to ensure the secure and accurate delivery of components to global destinations. Shipping options available for your order are calculated and displayed during the checkout process based on your specific requirements.
Supported Carriers & Services
We partner with established logistics providers to offer a range of delivery solutions:
Express Carriers: DHL, UPS, FedEx, SF Express
Postal & Standard Services: Belgium Post, Global Direct Standard Line, Registered Mail
Shipping Cost Calculation
Shipping charges are dynamically calculated at checkout to ensure accuracy. The final cost is determined by the following variables:
Package Weight: The total combined weight of the products and necessary protective packaging.
Service Selection: Costs vary depending on the chosen carrier and the selected service level (e.g., expedited express vs. standard delivery).
Destination: Rates are adjusted based on the specific country or region of delivery.
Technical Specifications
Basic Info.
|
Model NO. |
Y50X-1832TK2 |
|---|---|
|
Application |
Industrial Automation |
|
Contact Material |
Copper |
|
Shell Material |
Aluminum alloy |
|
Shell Size |
18 |
|
Termination Style |
Solder |
|
Contact Plating |
Gold |
|
Transport Package |
Standard Expect Package |
|
Origin |
China |
|
Production Capacity |
100000 |
|
Certification |
ISO 9001, ISO 14001, ISO 45001, CE, RoHS, REACH, IP68, 500-Hour Salt Spray Tested |
|---|---|
|
Contact Resistance |
≤ 12.0(mΩ) |
|
Surface Treatment |
Olive green cadmium plating |
|
Processing and Customization |
OEM/ODM |
|
Shell Style |
Plug |
|
Mounting Style |
Plug |
|
Grommet and seal |
Silicon rubber |
|
Endurance |
500 cycles |
|
Trademark |
AVIA |
|
HS Code |
8536901100 |
Packaging & Weight
|
Package Size |
41.00cm * 31.00cm * 30.00cm |
|---|---|
|
Package Gross Weight |
100g |
Mechanical Specifications
Performance specification
|
Operating temperature range: |
-55 oC~ +150 oC |
|---|---|
|
Corrosion resistance: |
Withstand 48 hours salt spray (5% NaCl fog) |
|
Operating atmospheric pressure: |
4.39 KPa ~ 101.33 KPa |
|
Vibration: |
10 Hz ~ 2000 Hz, acceleration 196 m/s2 |
|
Relative humidity: |
40 + 2 oC, 90% ~ 95% |
Electrical Performance
Environmental Performance
Operating temperature
|
Olive drab cadmium plating |
-65 oC ~ +175 oC |
|---|---|
|
Stainless steel passivated |
-65 oC ~ +200 oC |
Salt spray
|
Electroless nickel plating |
48h |
|---|---|
|
Olive drab cadmium plating |
500h |
|
Stainless steel passivated |
1000h |
Typical Applications
- Military Communication
- Aerospace Systems
- UAV & Defense Electronics
- Industrial Automation
Cross-Reference & Mating
Compatible Brands & Mating
|
Brands |
Equivalents |
Mates |
|---|---|---|
|
AVIA |
Y50X-1832TK2 |
Y50X-1832ZJ2 |
Same Pin Count – Multiple Connector Options
Compliance
Quality Management Certifications
Our quality management system, certified to ISO 9001, ensures consistent manufacturing processes and reliable product quality. AVIA Electronics follows internationally recognized quality standards — including ISO 9001 for quality management, ISO 14001 for environmental management, and ISO 45001 for occupational health and safety — to deliver dependable connector solutions.
-
- ISO9001 Certification
-
- ISO14001 Certification
-
- ISO45001 Certification
Product Compliance Certifications
Our connectors comply with international environmental and safety requirements, ensuring reliable and compliant solutions for global markets. AVIA Electronics products meet CE marking requirements, RoHS directive standards for restricted hazardous substances, and REACH regulation requirements for chemical safety, supporting seamless integration into global supply chains.
-
- CE Compliant
-
- RoHS Compliant
-
- REACH Compliant
Product Test Reports
Our products undergo rigorous testing to verify environmental protection, durability, and performance in demanding applications. Connectors are validated to IP68 waterproof and dust-proof ratings and undergo 500-hour salt spray testing to confirm corrosion resistance in harsh military, aerospace, and marine environments.
-
- IP68 Protected
-
- Salt Spray Test
