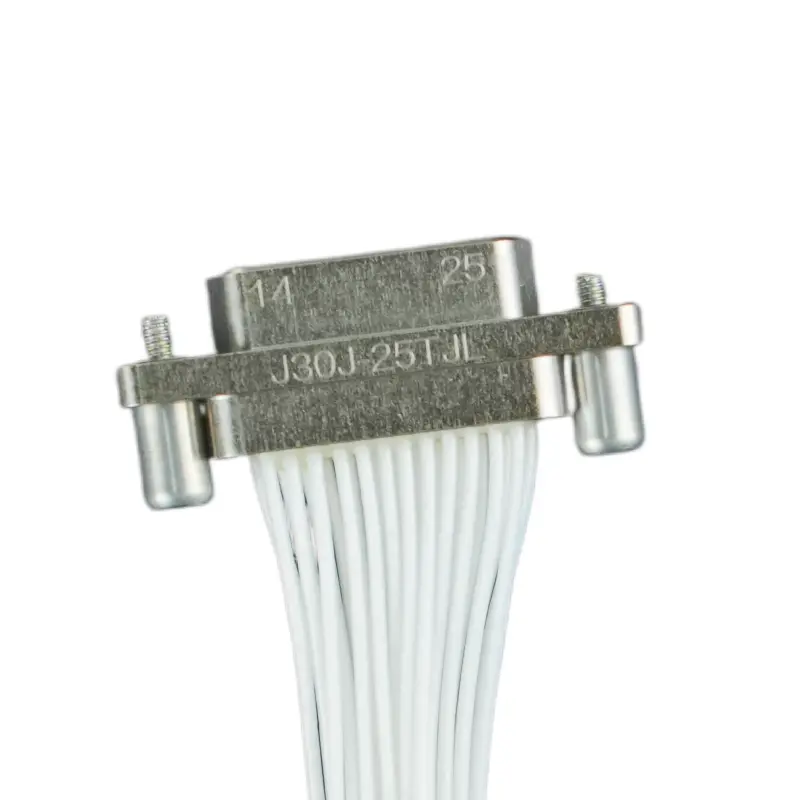

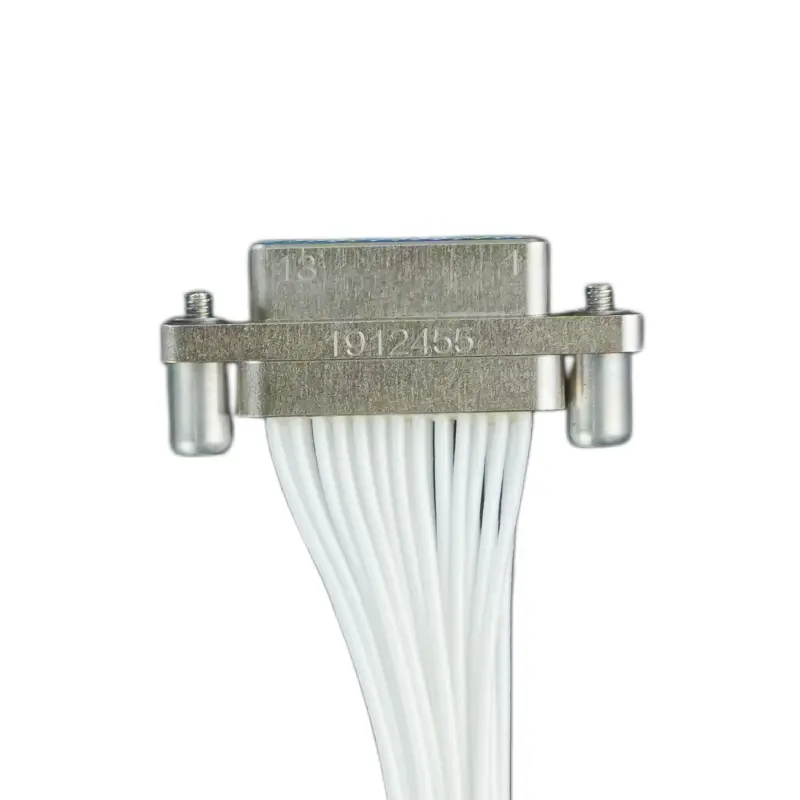

J30J-25TJL | 21-контактный предварительно смонтированный разъем Micro-D с длинными винтовыми гайками
The J30J-25TJL is a high-reliability 25-pin Micro-D plug featuring pre-wired terminations, twist-pin contacts, and long jackscrews for high-density systems.
999999 в наличии
Делиться:
Категории товаров
Запросить сейчас
J30J-25TJL High-Capacity 25-Pin Interface for Streamlined Wire Assemblies
Он J30J-25TJL is a premium Micro-D plug connector designed to handle extensive data and power distribution in modern aerospace platforms and critical industrial modules. Featuring a 25-pin dual-row layout, this interface enables system architects to consolidate a large number of independent signal pathways into a single miniature housing. By eliminating the need for multiple, smaller interconnects, it significantly reduces total component count and saves vital space on external bulkheads. It is highly effective for gathering complex telemetry signals, power rails, and sensor data within a tightly packed system layout.
Основные характеристики
Материал оболочки | Номинальное напряжение | Текущий рейтинг | Рабочая температура | Циклы спаривания |
|---|---|---|---|---|
Алюминиевый сплав | ~800 В переменного тока | 3 А | от -55 °C до +125 °C | >500 |
Factory Pre-Wired Design for Enhanced Reliability
A significant operational advantage of the J30J-25TJL is its pre-wired termination configuration. The connector arrives fully assembled with premium fluoroplastic insulated wires that are precision-crimped and sealed directly to the 21 contacts. This eliminates the need for manual wire stripping, tinning, and soldering in confined, sub-millimeter terminal environments. By removing complex manual assembly steps, it drastically lowers localized manufacturing labor costs, prevents the risk of wiring defects, and guarantees highly consistent electrical continuity across large production batches.
Extended Locking Jackscrews for Maximum Structural Security
The ‘L’ suffix denotes the inclusion of extended long jackscrews on the J30J-25TJL. As the contact count rises to 25 pins, the mating and unmating forces increase correspondingly. The long jackscrews allow technicians to apply a steady, controlled torque when securing the plug to its mating receptacle through thick structural panels or recessed equipment chassis. This mechanical lock distributes axial forces evenly and prevents accidental disconnection caused by sustained vibration, dynamic shocks, or the heavy weight of a long external cable harness.
Twist-Pin Technology for Uncompromised Contact
В основе J30J-25TJL is the high-performance twist-pin contact system. Each male pin is composed of elastic wire strands that form a durable, spring-like profile. Upon mating, these strands compress inward to establish multiple points of electrical contact against the internal socket walls. This persistent physical engagement removes localized surface oxides and dust, ensuring continuous data flow without momentary signal drops. The high-tensile copper alloy pins are finished with high-purity gold over nickel plating, keeping total electrical contact resistance minimal.
Strict Quality Compliance and Direct Sourcing Interchangeability
The J30J-25TJL is manufactured in strict accordance with high-reliability industry specifications, ensuring complete mechanical and electrical compatibility with matching 25-pin receptacles from multiple suppliers. This rigorous standardization simplifies procurement processes, enabling direct replacement of legacy systems without the need for redesigning equipment frames or terminal layouts. Its verified endurance under extreme thermal fluctuations makes it highly reliable for tactical communication systems, industrial robotics, and unmanned aircraft electronics.
Часто задаваемые вопросы
What does the 'L' signify in the J30J-25TJL part number?
What does the 'L' signify in the J30J-25TJL part number?
The ‘L’ indicates the presence of extended long jackscrews, allowing the plug to securely attach to its mating receptacle through thick outer casing panels.
Does this connector arrive with pre-installed cables?
Does this connector arrive with pre-installed cables?
Yes, the ‘J’ suffix confirms that the plug is pre-wired at the factory with high-grade fluoroplastic insulated wires, ready for immediate installation.
How are the 25 contacts arranged inside the connector housing?
How are the 25 contacts arranged inside the connector housing?
The 25 contacts are organized in a dense, staggered dual-row layout with a 1.27mm pitch, maximizing channel density while maintaining electrical isolation.
What are the key advantages of the gold plating on the pins?
What are the key advantages of the gold plating on the pins?
The premium gold plating provides outstanding protection against environmental corrosion and guarantees ultra-low contact resistance over 500 mating cycles.
Can the J30J-25TJL serve as a direct replacement for standard 25-pin Micro-D plugs?
Can the J30J-25TJL serve as a direct replacement for standard 25-pin Micro-D plugs?
Yes, it is designed in complete accordance with standard Micro-D configurations, making it fully intermateable with matching 25-pin receptacles.
