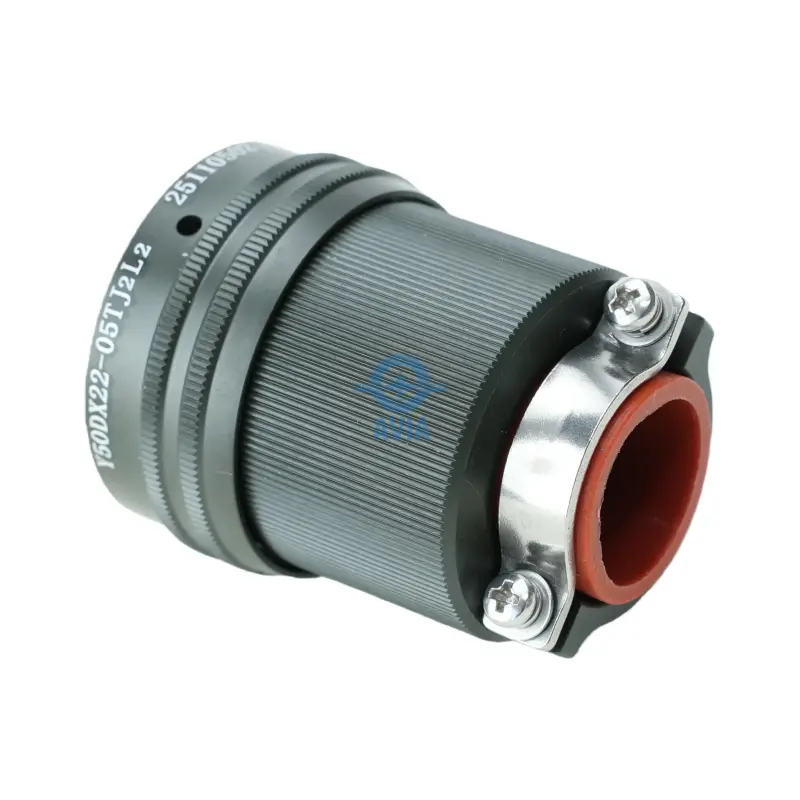

Y50DX22-05TJ2L2: Heavy-Duty Power Connectivity for Industrial Systems
In the demanding field of industrial power distribution and heavy machinery, the connector shell size directly influences the system endurance. The Y50DX22-05TJ2L2 is a specialized 5-pin circular connector housed in a reinforced size 22 alloy shell. This configuration is strategically engineered for applications requiring high-current multi-phase power or combined power and control signal transmission through a single, vibration-resistant interface. As a core component within the Y50DX series standards, it provides the tactical reliability needed for localized infrastructure in harsh environments.
Основные характеристики
Материал оболочки | Номинальное напряжение | Текущий рейтинг | Рабочая температура | Степень защиты от проникновения влаги и пыли | Циклы спаривания | Ключевая модуляция и поляризация | Соединение |
|---|---|---|---|---|---|---|---|
Алюминиевый сплав | ~1000 В переменного тока | ~40 А | от -55 °C до +150 °C | IP67 | 500 | N | Быстроразъемное штыковое соединение |
Technical Superiority for Electrical System Designers
For engineers designing large-scale motor controllers or industrial power cabinets, the Y50DX22-05TJ2L2 provides a precision-engineered platform. The increased volume of the size 22 shell allows for superior contact spacing and dielectric insulation, making it the preferred choice for higher voltage ratings where electrical arcing must be strictly prevented.
Core Technical Features:

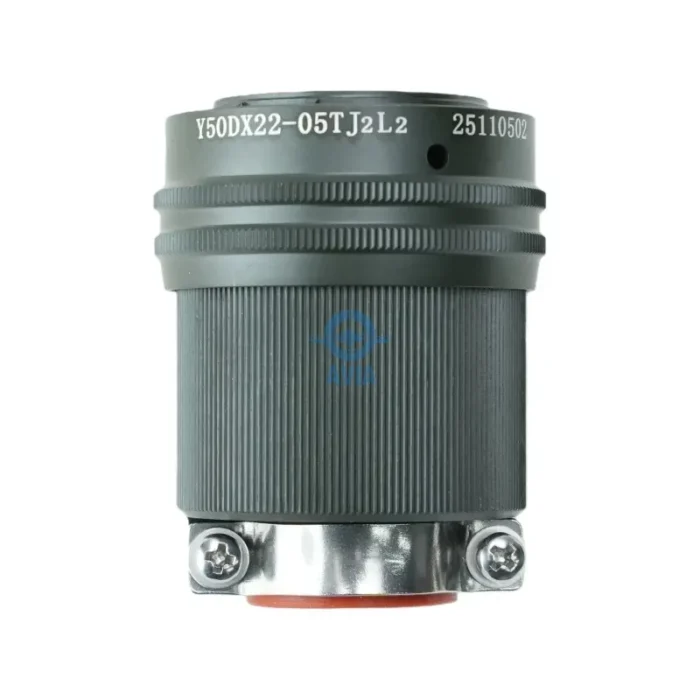

Model Configuration: Y50DX22-05TJ2L2 (5-Pin layout)
Shell Geometry: Size 22 high-strength alloy with tactical anti-corrosion finish
Contact Arrangement: 05 (5 High-performance contacts for multi-circuit loads)
Coupling Mechanism: Rapid bayonet system for secure, tactile mating
Termination Specification: TJ2L2 enhanced termination for heavy-gauge wiring
The rapid coupling system ensures that the connection remains gas-tight and vibration-proof, protecting the 5-pin interface from the mechanical harmonic stress common in mining equipment and factory automation nodes.
Strategic Sourcing: The Procurement Advantage
Procurement officers managing global industrial projects require components that offer both technical compliance and supply chain speed. The Y50DX22-05TJ2L2 serves as a strategic alternative to traditional military hardware, adhering to Y50DX series standards to ensure full intermateability while drastically reducing procurement lead times.
Why Procurement Teams Prioritize This Model:
Global Compatibility: Fully intermateable with standard size 22-05 circular plugs and sockets
Lead Time Optimization: Maintained in strategic stock for rapid export to Russian and Middle Eastern hubs
Quote Velocity: Our 15-minute response protocol ensures your procurement process stays ahead of schedule
We specialize in managing localized logistics and documentation, ensuring that your Bill of Materials (BOM) is fulfilled with the necessary quality assurance reports for regional industrial tenders.
Wholesale Potential: Insights for Trading Partners
For regional distributors and global traders, the Y50DX22-05TJ2L2 is a high-value asset for inventory portfolios. Its 5-pin configuration is a versatile standard for 3-phase power systems with additional grounding or signaling, ensuring a consistent volume of inquiries from heavy industry end-users.
Distribution Benefits:
Heavy Industry Demand: Essential for power cabinets, heavy machinery, and localized energy grids
Technical Consulting Support: We provide CAD files and spec sheets to help your team win localized bids
Batch Reliability: Precision manufacturing ensures that every unit meets the same tactical reliability benchmarks
Часто задаваемые вопросы
What defines the advantage of the size 22 shell in the Y50DX22-05TJ2L2?
What defines the advantage of the size 22 shell in the Y50DX22-05TJ2L2?
The size 22 shell offers significantly more physical protection and allows for larger internal contact sizes, supporting higher current loads than size 18 or 20 versions.
Does the Y50DX22-05TJ2L2 support EMI shielding for sensitive signals?
Does the Y50DX22-05TJ2L2 support EMI shielding for sensitive signals?
Yes, the high-strength alloy shell provides inherent electromagnetic shielding, which is critical for protecting secondary control loops from electrical noise.
What makes the TJ2L2 suffix specific to this model?
What makes the TJ2L2 suffix specific to this model?
The TJ2L2 designation refers to specialized shell enhancements and termination features designed for easier field assembly in heavy-duty wiring harnesses.
Can I get a 1:1 cross-reference for specific international brands?
Can I get a 1:1 cross-reference for specific international brands?
Absolutely. Use our 15-minute response chat to provide the competing part number, and our engineers will confirm compatibility instantly.ed to maintain electrical continuity despite significant mechanical harmonic stress.
Are there matching 5-pin receptacles available for this plug?
Are there matching 5-pin receptacles available for this plug?
We carry the complete range of size 22-05 mating sockets to provide a total interconnect solution for your cabinet designs.
