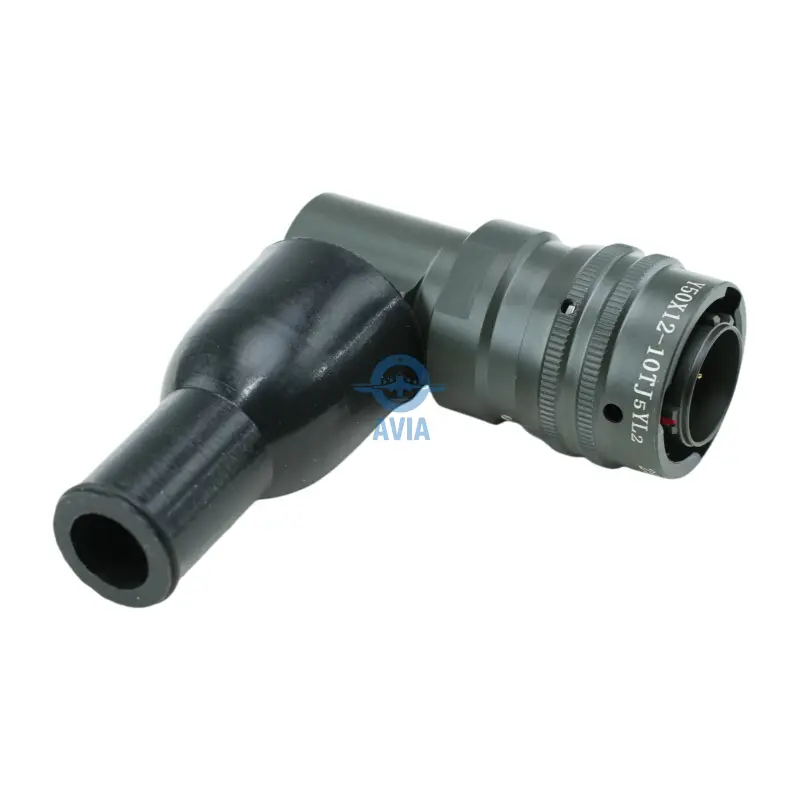

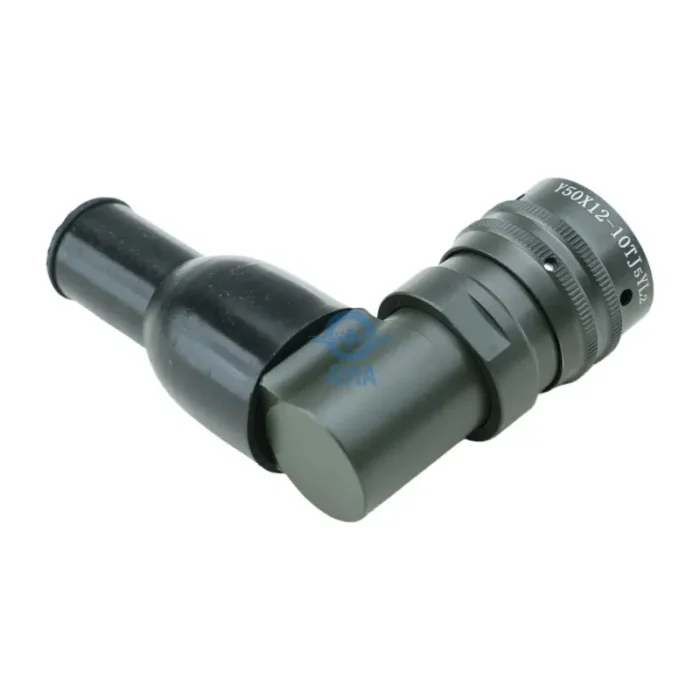

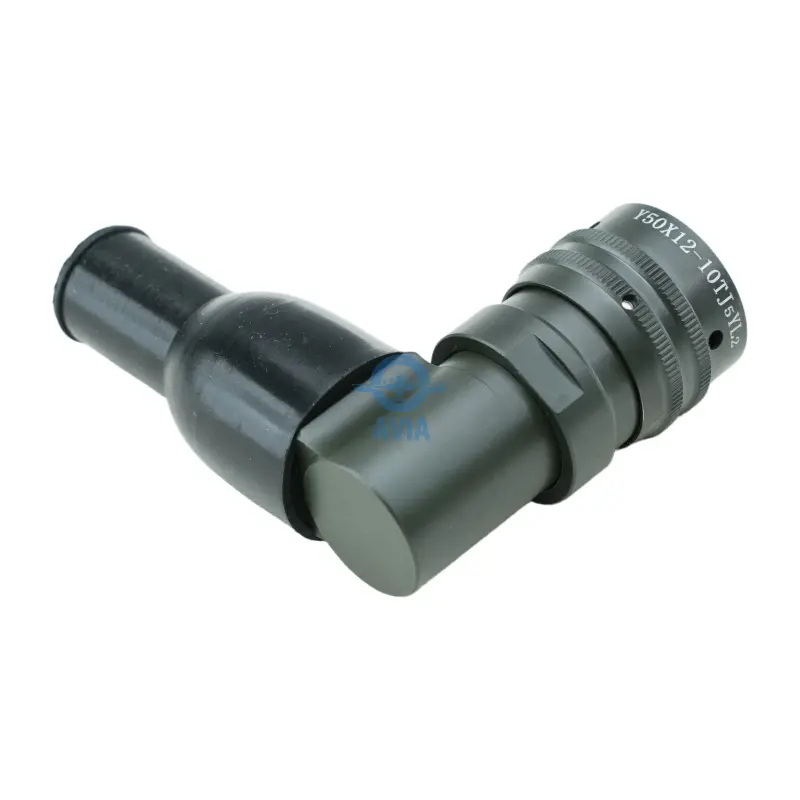

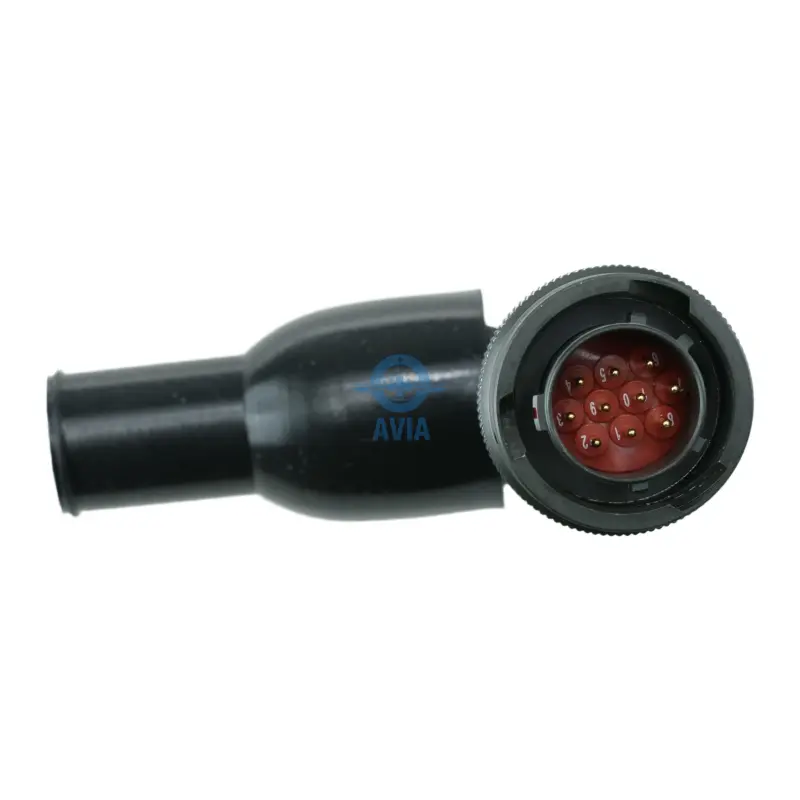

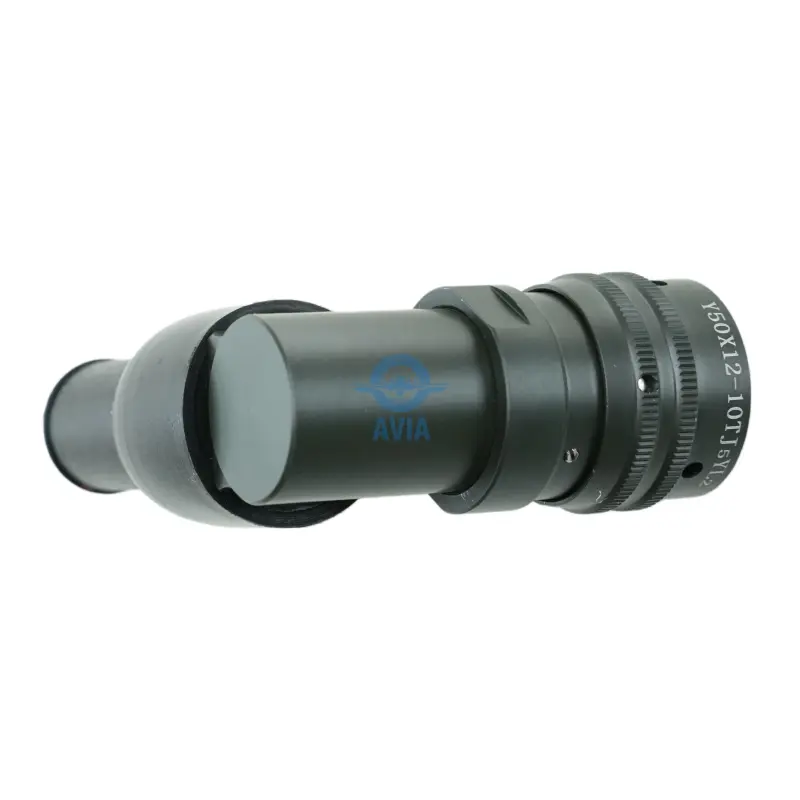

Он Y50X12-10TJ5YL2 is a specialized interconnect solution designed for engineers who require a high-density 10-pin interface within a compact size 12 shell. The shell is precision-machined from a high-strength aluminum alloy, providing a lightweight yet durable housing that protects the internal contacts from mechanical impacts. The “Y” designation in this series often points to an enhanced material specification, such as improved thermal stability or specialized internal seals designed to maintain their integrity under extreme temperature cycling. This makes the plug a preferred choice for systems located near heat sources in industrial machinery or aerospace telemetry units.

The coupling mechanism utilizes a three-point bayonet system, which is a hallmark of the GJB series. This design allows for rapid and secure mating with only a 120-degree turn, providing both an audible “click” and tactile feedback to the operator. This ensures a vibration-proof connection that will not loosen even when subjected to the high-frequency harmonic vibrations found in aviation or high-speed rail environments. The integration of the 5L2 backshell further bolsters the mechanical reliability by providing superior cable clamping and integrated strain relief, protecting the internal solder joints from mechanical fatigue.
