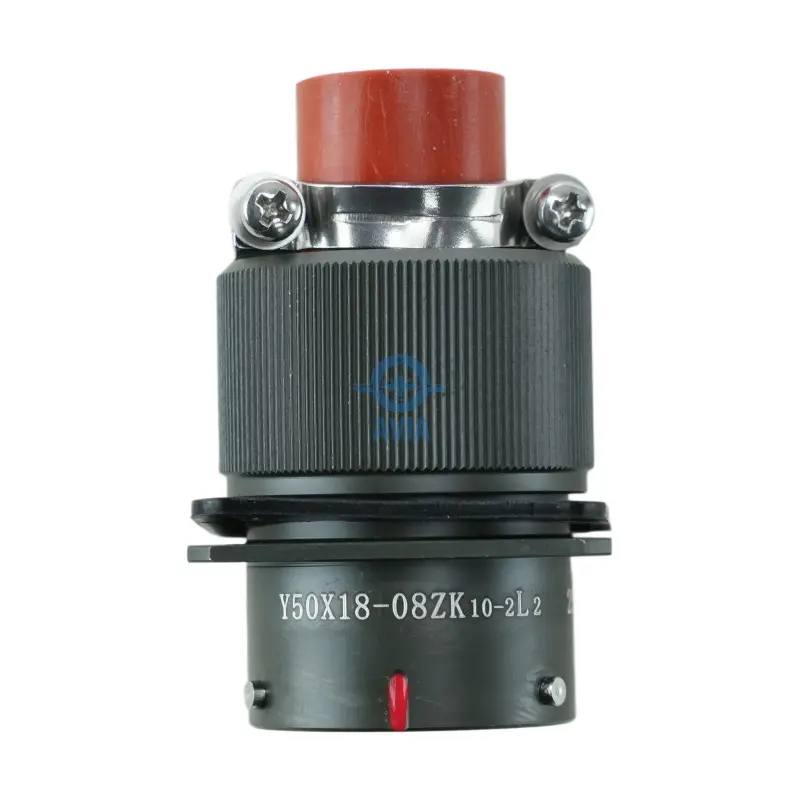

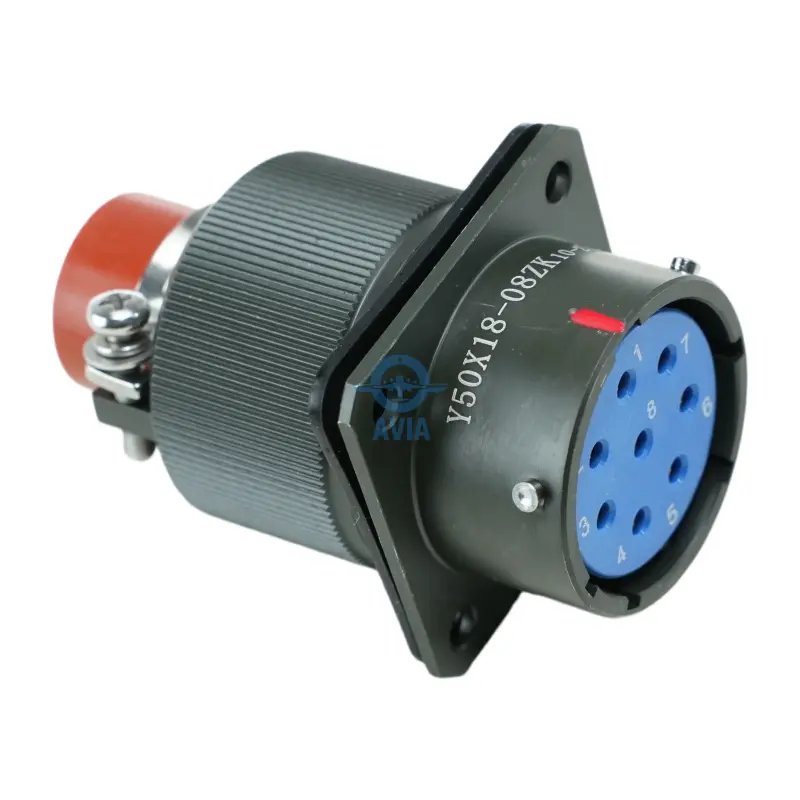

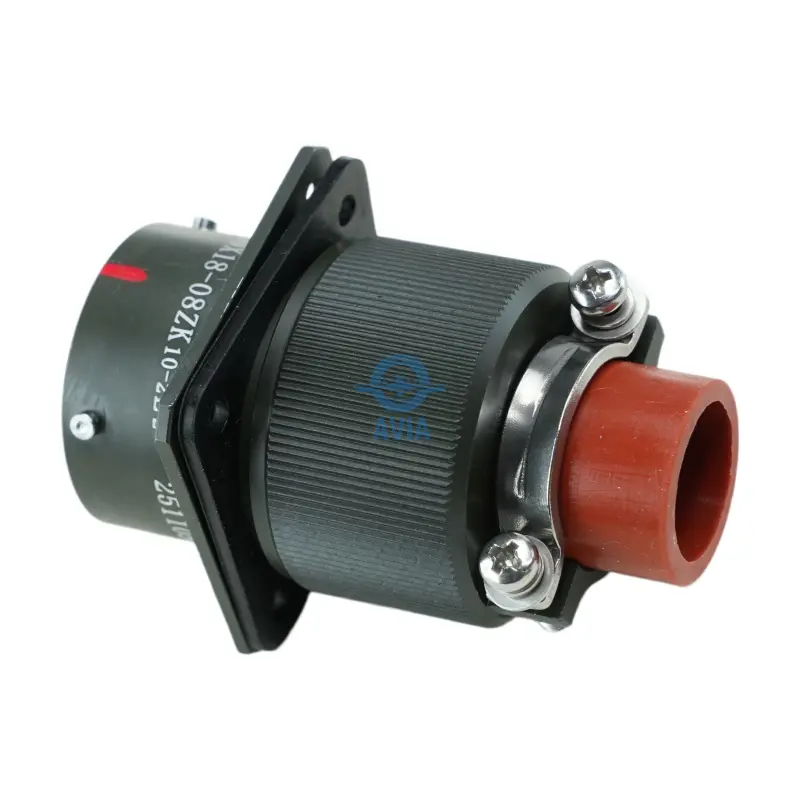

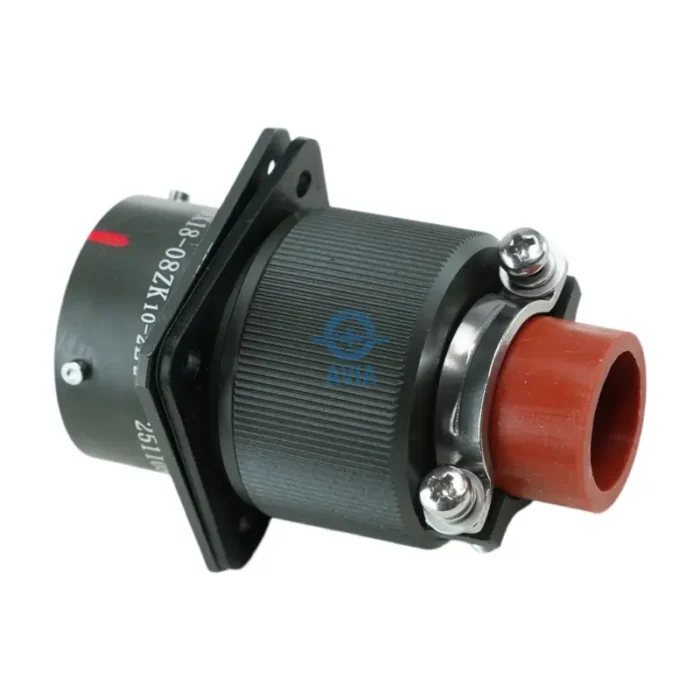

Y50X18-08ZK10-2L2 | 8-гнездная розетка с квадратным фланцем и задней крышкой 2L2
The Y50X18-08ZK10-2L2 is a GJB standard square flange receptacle with 8 socket contacts and a size 18 shell. Features “X” series environmental sealing and a 2L2 strain relief backshell.
999999 в наличии
Делиться:
Категории товаров
Запросить сейчас
Y50X18-08ZK10-2L2 Mechanical Architecture of the Size 18 Square Flange Receptacle
Он Y50X18-08ZK10-2L2 is a precision-engineered panel-mount component designed for applications that require a high degree of structural integrity and electrical reliability. The size 18 shell is a robust housing that provides significantly more surface area and internal volume than smaller shell sizes, making it ideal for heavier-duty industrial and aerospace electronic grids. The square flange (ZK10) design allows for a secure four-point mounting on equipment chassis or control panels, ensuring that the receptacle remains stationary even when subjected to intense vibrations or high-torque mating forces.
A key feature of this assembly is the 2L2 backshell, which provides a straight-profile sealing solution and integrated cable clamping. This backshell acts as a professional-grade strain relief, protecting the internal solder or crimp terminations from mechanical stress. By isolating the electrical contacts from the pulling and bending of external cables, the 2L2 backshell ensures the long-term reliability of the Y50X18-08ZK10-2L2 in dynamic environments, such as mobile command centers or automated manufacturing units.
Основные характеристики
Материал оболочки | Номинальное напряжение | Текущий рейтинг | Рабочая температура | Степень защиты от проникновения влаги и пыли | Циклы спаривания | Ключевая модуляция и поляризация | Соединение |
|---|---|---|---|---|---|---|---|
Алюминиевый сплав | ~1000 В переменного тока | ~40 А | от -55 °C до +150 °C | IP67 | 500 | N | Быстроразъемное штыковое соединение |

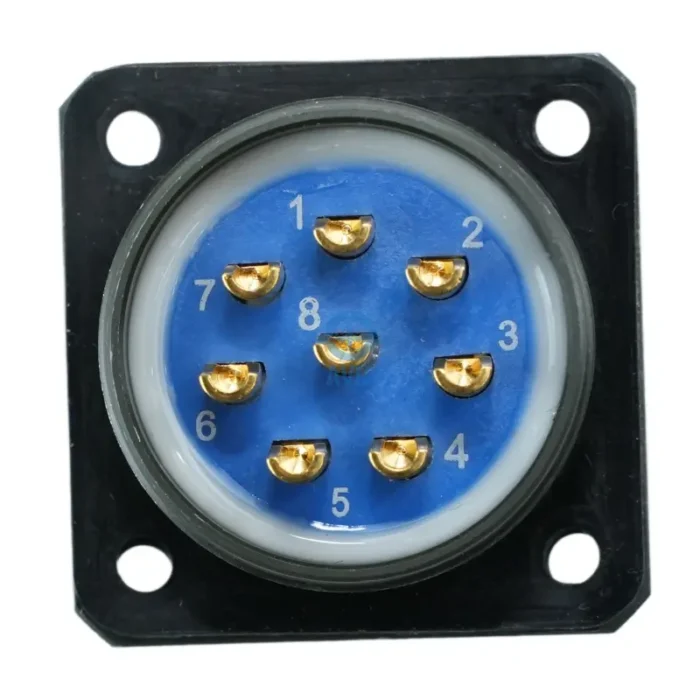

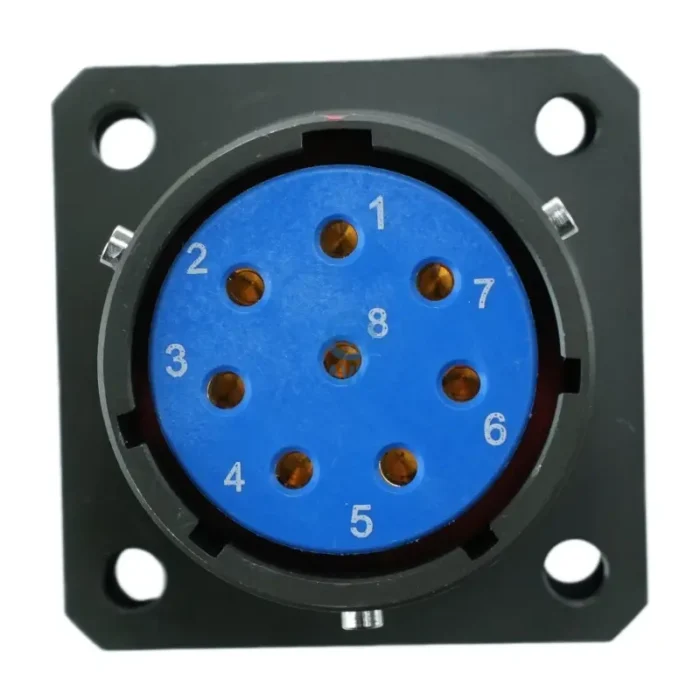

8-Socket Arrangement and Electrical Safety
The 18-08 insert arrangement of the Y50X18-08ZK10-2L2 is optimized for safe and efficient multi-channel connectivity. The ZK designation—placing socket (female) contacts within a fixed receptacle—is the preferred safety configuration for panel-side interfaces that serve as power outputs or primary signal sources. Because the conductive elements are recessed deep within the dielectric insulator, the Y50X18-08ZK10-2L2 minimizes the risk of accidental short circuits or electrical shock when the connector is in an unmated state. Each socket is finished with premium gold plating, ensuring low contact resistance and excellent protection against atmospheric oxidation.
Signal integrity is maintained through the use of high-performance dielectric materials that offer superior insulation resistance and thermal stability. The increased pin spacing inherent in the size 18 arrangement reduces the risk of electrical arcing and minimizes crosstalk, making it suitable for a mix of low-voltage signals and moderate power loads. This reliability is essential for maintaining the accuracy of data in sensor networks and the stability of power in professional electronic grids.
Environmental Hardening and EMI Protection
As an “X” series environmental connector, the Y50X18-08ZK10-2L2 is built to survive in aggressive moisture-heavy and particulate-rich field conditions. It is equipped with a comprehensive sealing system, including internal grommets and high-resilience gaskets that create a moisture-proof and dust-proof barrier once mated with a compatible plug. The 2L2 backshell provides a critical secondary seal at the rear of the receptacle, preventing humidity from entering the equipment housing through the cable entry point. This level of environmental hardening is vital for deployments in maritime zones and tropical industrial environments.
Electromagnetic compatibility (EMC) is addressed by the conductive properties of the metallic aluminum alloy shell. When the Y50X18-08ZK10-2L2 is properly grounded to a conductive panel and used with shielded cabling, it forms an effective Faraday cage. This attenuates external electromagnetic interference (EMI) and radio frequency interference (RFI), which is essential for protecting delicate electronics from the electrical noise generated by nearby machinery. The shell finish—typically available in nickel or olive drab—provides an additional layer of corrosion resistance, preserving the functional life of the bayonet lugs.
Strategic Integration in Aerospace and Industrial Grids
The versatility of the Y50X18-08ZK10-2L2 makes it a staple for system integrators across the aerospace, defense, and industrial sectors. In the aerospace sector, its lightweight yet rugged square-flange design is highly valued for avionics control boxes where reliability is non-negotiable. In industrial automation, it serves as a robust interface for robotic controllers and power distribution panels, where the 2L2 backshell ensures the connection survives the repetitive stresses of field operation.
By providing a standardized, GJB-compliant, and cost-effective interconnect gateway, the Y50X18-08ZK10-2L2 delivers the reliability required for the most demanding electronic environments worldwide. Its combination of mechanical strength, environmental resilience, and electrical precision provides the confidence needed for mission-critical deployments. Whether used in high-altitude aviation or ground-level energy grids, this receptacle ensures consistent performance throughout its operational lifecycle.
Часто задаваемые вопросы
What does the ZK10-2L2 designation signify?
What does the ZK10-2L2 designation signify?
ZK10 indicates a square flange receptacle with socket (female) contacts, while 2L2 refers to a straight environmental backshell that provides sealing and cable strain relief.
Why use sockets (ZK) on the panel side?
Why use sockets (ZK) on the panel side?
Sockets are used on panel-side receptacles for safety. Since the sockets are recessed, they prevent accidental contact with live circuits when the plug is disconnected.
Is the Y50X18-08ZK10-2L2 compatible with all Y50 size 18-08 plugs?
Is the Y50X18-08ZK10-2L2 compatible with all Y50 size 18-08 plugs?
Yes, it is designed to mate with any Y50 series plug that features a size 18 shell, a matching 8-pin (male) arrangement, and a compatible bayonet locking interface.
How does the 2L2 backshell protect the internal wiring?
How does the 2L2 backshell protect the internal wiring?
The 2L2 backshell provides a mechanical clamp that secures the cable, preventing external pulling or vibration from damaging the solder or crimp points inside the receptacle.
Can this model be used in maritime environments?
Can this model be used in maritime environments?
Absolutely. Its high-resilience seals and corrosion-resistant shell plating make it ideal for protecting electronic grids in salt-spray and high-humidity maritime zones.
