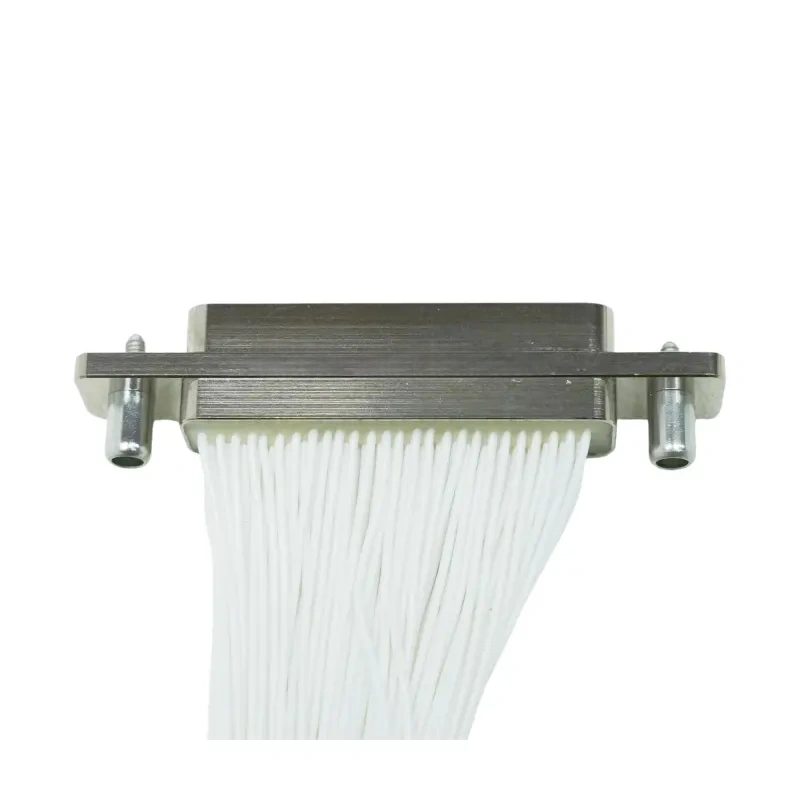

J30J-100ZKL 100-Pin Micro-D Female Receptacle MIL-DTL-83513
High-density J30J-100ZKL 100-pin Micro-D female receptacle. Features 1.27mm pitch and gold-plated contacts for aerospace and defense. Request a quote.
999999 in stock
Share:
Product Categories
Request a Quote
J30J-100ZKL Regulatory Compliance and Universal Mating
The J30J-100ZKL is a high-performance, micro miniature rectangular socket connector manufactured in strict accordance with the GJB2446 technical standard. Functioning as a direct equivalent to the international MIL-DTL-83513 specification, this 100-position female receptacle delivers complete mechanical and electrical intermateability with matching 100-pin Micro-D plugs. This allows engineering and procurement teams to easily source it as a reliable drop-in replacement for global system designs.
Key Specifications
Shell Material | Voltage Rating | Current Rating | Operating Temp | Mating Cycles |
|---|---|---|---|---|
Aluminum alloy | ~800 VAC | 3 A | -55 °C to +125 °C | >500 |
High-Density Signal Routing in Tight Enclosures
Designed for advanced multi-signal electronic modules where space is at a premium, the J30J-100ZKL accommodates 100 contacts arranged on a high-density 1.27mm (0.050 inches) pitch. This micro-miniature configuration allows for a drastic reduction in total equipment footprint and weight compared to standard rectangular connectors, making it highly effective for spatial efficiency within modern defense systems and compact communication units.
Contact Reliability and Socket Architecture
The internal female sockets are precision-formed from a high-conductivity copper alloy and finished with high-durability gold plating over nickel. This precise geometry ensures a secure mechanical fit when mated with matching twist pins, providing continuous electrical contact. The gold-plated interface keeps contact resistance exceptionally low and guarantees dependable signal integrity over long-term usage.
Mechanical Protection and Mounting Features
Built with a rugged metal shell, the J30J-100ZKL provides solid protection against physical impacts and offers excellent EMI/RFI shielding. This limits the effects of external electromagnetic interference on critical low-voltage signals. The L hardware designation indicates the specific installation hardware configuration, allowing for a permanent and secure panel-mount or bulkhead attachment to prevent mechanical drift.
Stability in Harsh Environments
This military-standard Micro-D receptacle is engineered to operate reliably under extreme conditions. It maintains consistent performance across a broad operating temperature range of -55°C up to +125°C. With high resistance to thermal shock, humidity, and intense vibration, the connector guarantees stable, uninterrupted data transmission in aerospace applications, military ground support, and marine electronics.
FAQ
Can the J30J-100ZKL be directly mated with 100-pin Micro-D plugs from other manufacturers?
Can the J30J-100ZKL be directly mated with 100-pin Micro-D plugs from other manufacturers?
Yes. The J30J-100ZKL complies fully with the GJB2446 standard, which is structurally and electrically identical to the MIL-DTL-83513 specification. It uses the exact same contact layout, dimensions, and spacing, allowing it to seamlessly mate with standard 100-pin Micro-D male plugs.
What exactly does the L hardware suffix denote for this receptacle?
What exactly does the L hardware suffix denote for this receptacle?
In the J30J series part numbering system, the L indicates a specialized installation hardware style. This style is optimized for secure mounting on panels, chassis walls, or bulkheads, ensuring that the connector remains firmly fixed in place.
How does the J30J-100ZKL handle electrical insulation?
How does the J30J-100ZKL handle electrical insulation?
The connector housing utilizes high-performance dielectric insulators, such as high-temperature engineering polymers, to separate the 100 contacts. This ensures excellent dielectric strength and prevents any electrical leakage or signal cross-talk between the circuits.
Does this product include pre-installed wiring or a cable harness?
Does this product include pre-installed wiring or a cable harness?
This specific part number refers to the connector body equipped with its 100 gold-plated socket contacts. It is not pre-wired, allowing you to use it for direct terminal soldering or integrate it within a custom cable harness based on your specific requirements.
How can I request 3D models, technical drawings, or localized pricing?
How can I request 3D models, technical drawings, or localized pricing?
You can request our comprehensive technical datasheets, 2D/3D CAD models, or custom volume quotes by submitting a direct inquiry to our customer service and technical support team.
