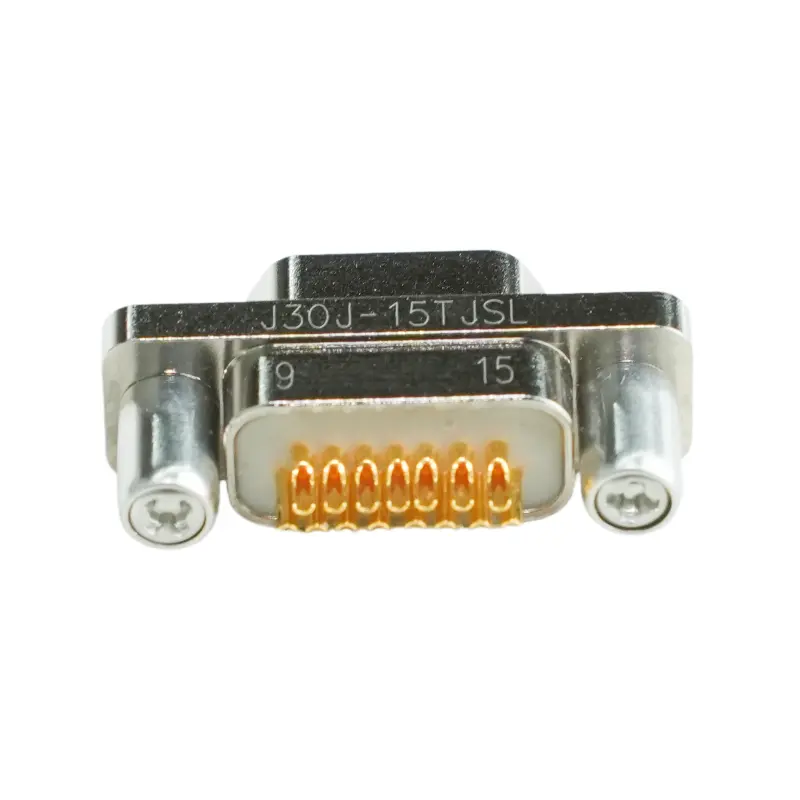

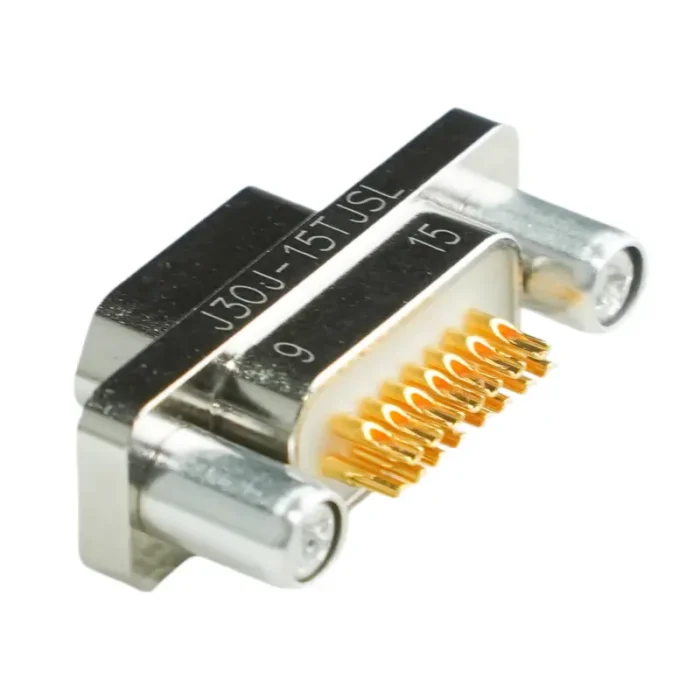

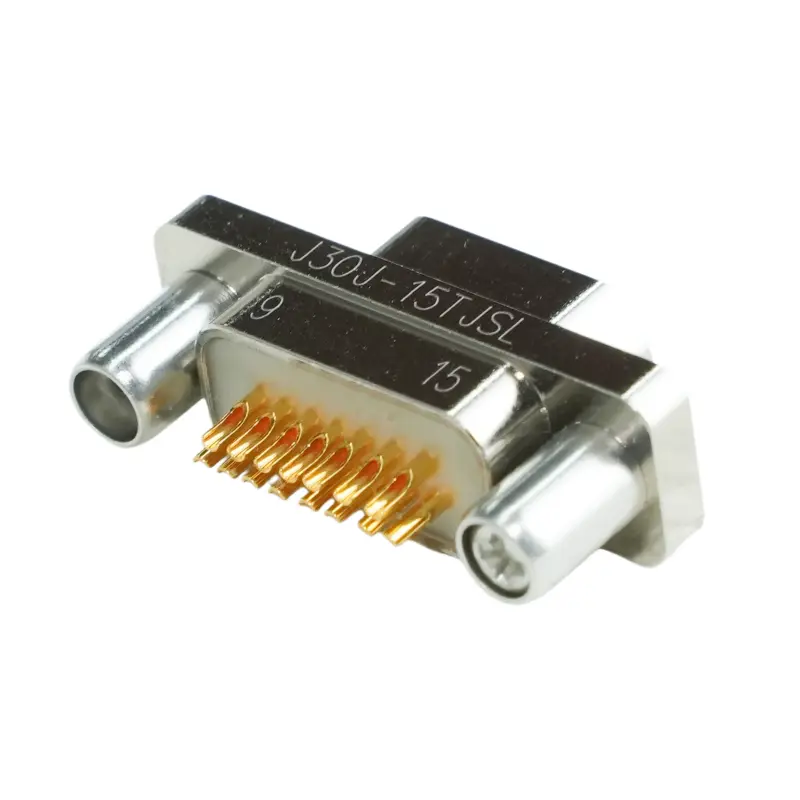

J30J-15TJSL | 15-Pin Micro-D Solder Cup Plug Connector with Long Jackscrews
The J30J-15TJSL is a 15-pin Micro-D plug connector featuring precision solder cup terminals for custom wire integration and long jackscrews for high-reliability locking.
999999 in stock
Share:
Product Categories
Request a Quote
J30J-15TJSL Custom Wiring Flexibility with Advanced Solder Cups
The J30J-15TJSL is a high-performance Micro-D plug connector designed for applications that demand complete control over cable specifications. Featuring fifteen open solder cup terminals, this connector allows engineering teams to perform field terminations using application-specific wiring. This configuration is highly advantageous when integrating custom-shielded lines, high-temperature conductors, or specific wire gauges that are not typically available in factory pre-wired models. The internal geometry of each cup is optimized for manual soldering, ensuring clean, isolated joints within a highly compressed physical footprint.
Key Specifications
Shell Material | Voltage Rating | Current Rating | Operating Temp | Mating Cycles |
|---|---|---|---|---|
Aluminum alloy | ~800 VAC | 3 A | -55 °C to +125 °C | >500 |
Secure Threaded Coupling via Extended Hardware
The ‘L’ suffix denotes the inclusion of extended long jackscrews on the J30J-15TJSL. This structural hardware is essential when connecting the plug through thicker structural bulkheads or recessed chassis panels where standard-length screws cannot reach the receptacle threads. The extended length allows the user to apply precise mechanical torque during mating, locking the plug securely into place. This firm engagement prevents the connector pair from separating under dynamic loads, ensuring constant electrical contact in high-vibration operational environments.
Twist-Pin Reliability for Seamless Data Flow

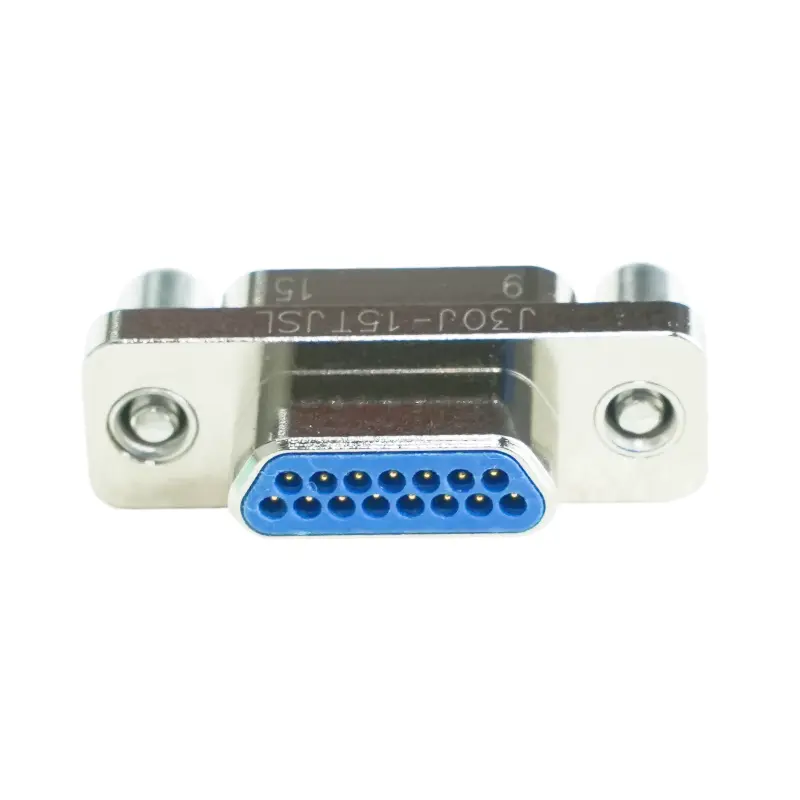

At the core of the J30J-15TJSL is the specialized twist-pin contact system, which ensures continuous electrical performance across all 15 channels. The spring-like strands within each male pin produce multi-point physical engagement when inserted into the mating socket. This constant pressure creates a wiping action that sweeps away microscopic particulates and prevents intermittent contact failures. The high-tensile copper alloy pins are plated with gold over nickel, which reduces total contact resistance and guarantees signal stability for critical telemetry and low-voltage power networks.
Electromagnetic Shielding and Rugged Architecture
Constructed with a premium aluminum alloy shell, the J30J-15TJSL offers excellent physical protection and reliable electromagnetic interference shielding. The metal casing isolates sensitive signal pathways from nearby radio-frequency noise, which is critical for maintaining clear data transmission in dense electronics racks. The housing surface is treated with specialized plating to protect the assembly against atmospheric oxidation and moisture, while the D-shaped physical profile prevents cross-mating by ensuring correct polarization during quick-turn field assembly.
Broad Compatibility and Design Standard Adherence
The J30J-15TJSL conforms to international high-reliability Micro-D design standards, making it fully intermateable with compatible 15-pin receptacles from diverse manufacturers. This adherence reduces engineering risk during legacy equipment upgrades, allowing technicians to replace older or worn interconnect components without modifying the structural mounting plates. Its predictable performance across high thermal shifts makes it a dependable interconnect solution for remote sensing devices, advanced robotic controls, and critical industrial automation systems.
FAQ
What does the 'S' stand for in the J30J-15TJSL part number?
What does the 'S' stand for in the J30J-15TJSL part number?
The ‘S’ stands for solder cup terminations, which allow users to manually solder their own selected wires directly to the connector pins on-site.
What is the functional purpose of the 'L' in this model?
What is the functional purpose of the 'L' in this model?
The ‘L’ indicates the inclusion of long jackscrews, which allow the plug to securely mount through thick equipment panels or deep chassis walls.
What wire gauge is recommended for the solder cups on this connector?
What wire gauge is recommended for the solder cups on this connector?
The solder cups are typically designed to accept 26 AWG to 30 AWG stranded wires, which matches the compact 1.27mm spacing of the connector pins.
Can the J30J-15TJSL handle frequent mating cycles?
Can the J30J-15TJSL handle frequent mating cycles?
Yes, the combination of twist-pin technology and high-purity gold plating allows the connector to easily withstand over 500 mating cycles without signal degradation.
Is it necessary to use heat shrink tubing over the solder joints?
Is it necessary to use heat shrink tubing over the solder joints?
Yes, due to the tight 1.27mm spacing between the pins, applying micro-diameter heat shrink tubing over each soldered wire is highly recommended to prevent short circuits.
