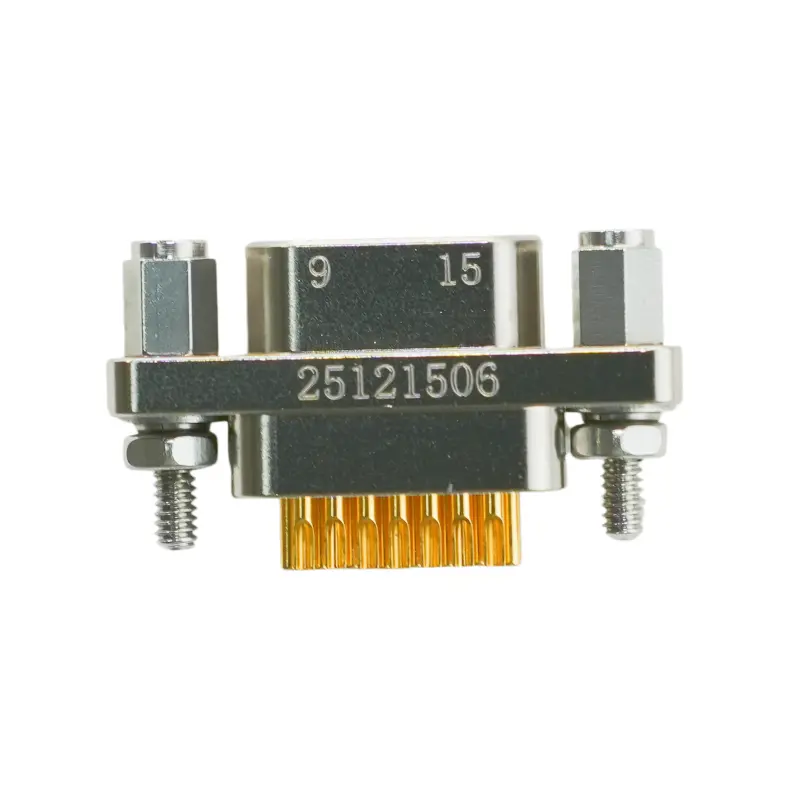

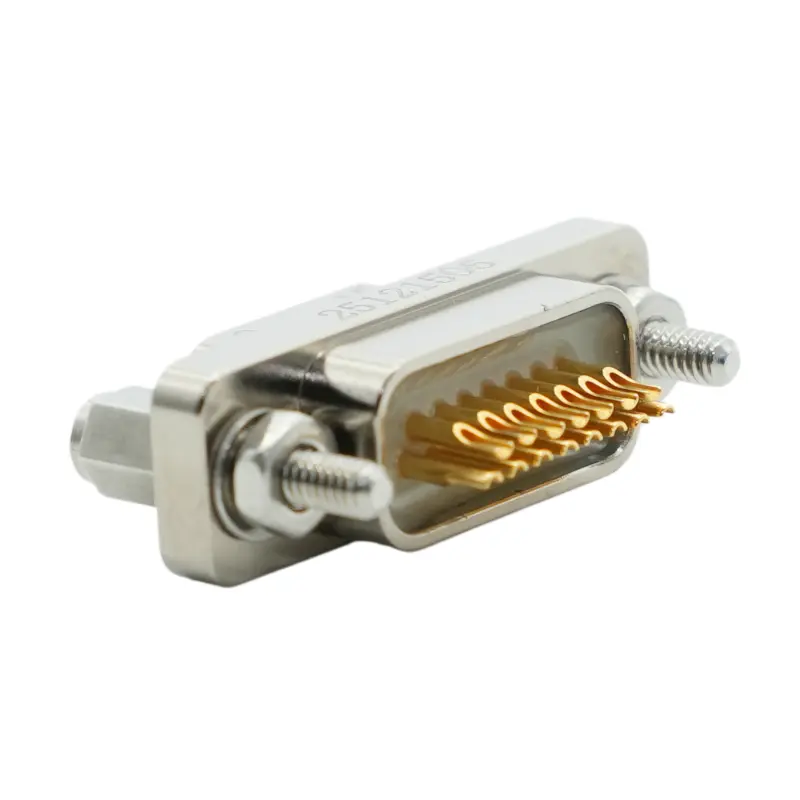

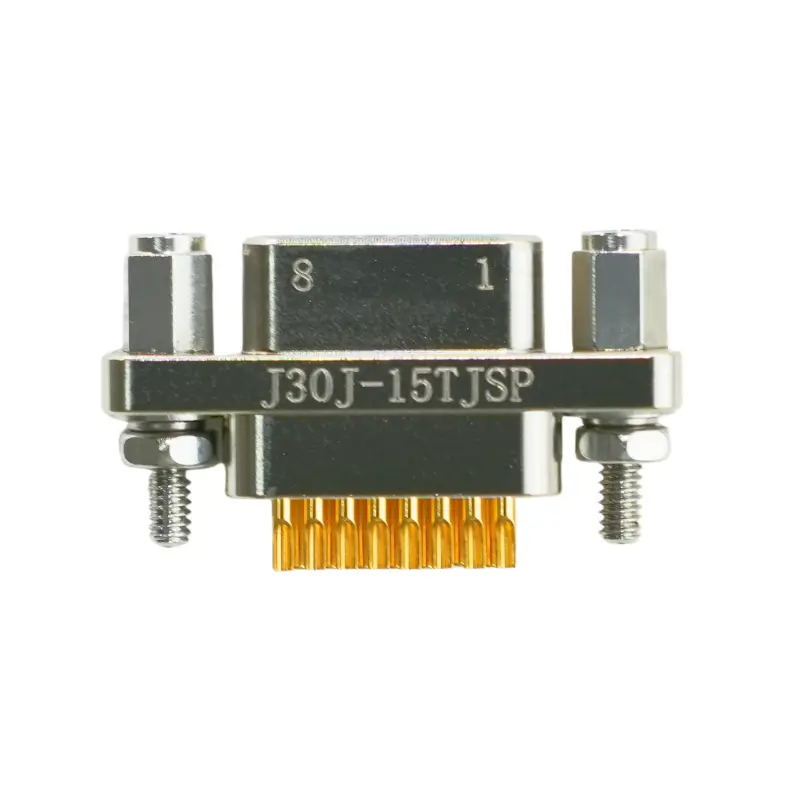

J30J-15TJSP | 15-Pin Micro-D Straight PCB Plug Connector with Long Jackscrews
The J30J-15TJSP is a 15-pin Micro-D straight PCB mount plug connector, designed for vertical board integration with reliable twist-pin contacts and long jackscrews.
999999 in stock
Share:
Product Categories
Request a Quote
J30J-15TJSP Vertical PCB Integration for Space-Optimized Boards
The J30J-15TJSP is a high-performance Micro-D plug connector specifically developed for straight vertical integration onto printed circuit boards. By converting the interconnect interface from a standard wire harness to a direct board-mounted setup, this connector dramatically simplifies internal system designs. The dual-row 15-pin configuration offers a dense electrical terminal footprint that matches the highly compressed layouts of modern avionics boards. It enables hardware designers to save valuable surface area, freeing up spatial real estate for computational components and active high-frequency circuits.
Key Specifications
Shell Material | Voltage Rating | Current Rating | Operating Temp | Mating Cycles |
|---|---|---|---|---|
Aluminum alloy | ~800 VAC | 3 A | -55 °C to +125 °C | >500 |
Solid Through-Hole Terminals for Secure Mating
Featuring highly uniform straight PCB terminals, the J30J-15TJSP allows for seamless integration into through-hole printed circuit board layouts. The solid metal tails exit the rear of the connector body in a predictable grid pattern, minimizing localized trace routing complexities and crosstalk between active channels. The insulation base is crafted from a advanced thermoplastic polymer that resists high thermal loads. This guarantees that the 1.27mm pin-to-pin alignment remains perfectly vertical during manual or automated wave soldering processes, eliminating board-level manufacturing defects.

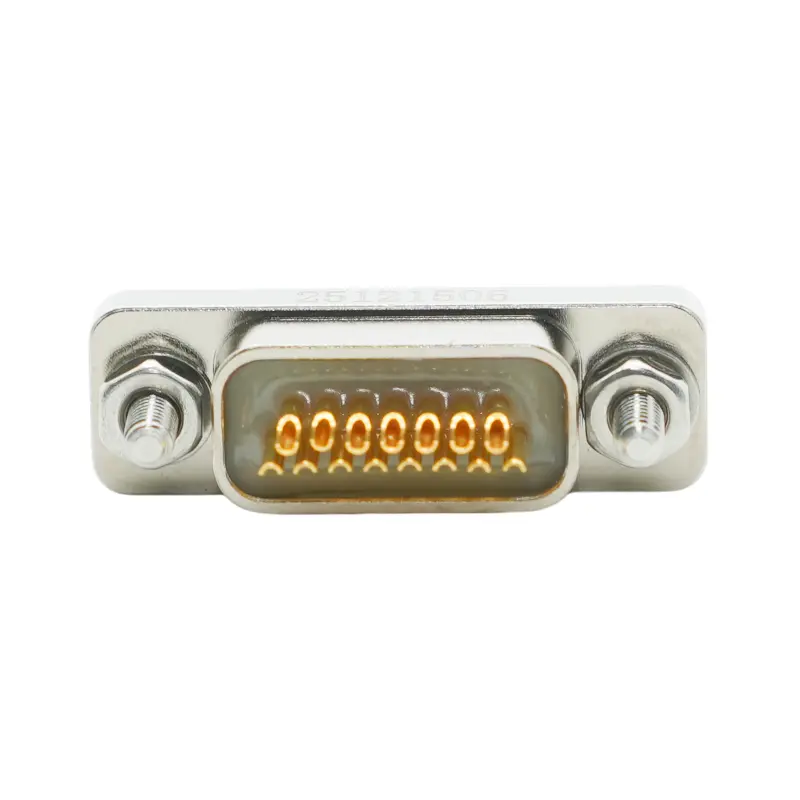

Advanced Twist-Pin System for Uninterrupted Signals
At the core of the J30J-15TJSP is the specialized elastomeric twist-pin contact technology. Each of the 15 male pins is manufactured using high-tensile copper alloy strands that create a flexible, spring-like structure. When inserted into the mating receptacle, the pins expand against the inner socket walls to provide continuous electrical contact along multiple points. This constant pressure delivers high protection against micro-disconnections, which is a critical operational safety factor for equipment exposed to severe operational shock, such as military vehicle telemetry or high-altitude drone controls.
Metal Shell Shielding and Extended Locking Security
Constructed from a high-tensile aluminum alloy shell, the J30J-15TJSP delivers exceptional structural durability along with high electromagnetic interference shielding. The housing features extended long jackscrews that anchor the board-mounted plug securely to its mating cable receptacle. This mechanical setup transfers operational mating forces directly into the chassis and housing frames rather than stressing the underlying solder joints. The distinct D-shaped interface geometry ensures accurate physical polarization, preventing cross-mating errors during installation.
High Compliance for Mission-Critical System Upgrades
The J30J-15TJSP adheres strictly to recognized technical standards for micro-miniature connectors, ensuring total mechanical and electrical compatibility with compatible 15-pin receptacles. The precise layout allows engineering teams to deploy this straight PCB connector as a reliable, long-term upgrade within existing high-reliability electronic networks. Its predictable operational performance across wide temperature shifts makes it highly effective for naval computing equipment, portable testing units, and high-density industrial control cabinets.
FAQ
What does the 'P' stand for in the J30J-15TJSP part number?
What does the 'P' stand for in the J30J-15TJSP part number?
The ‘P’ indicates that the connector is configured for straight PCB mounting, featuring solid metal pins that solder directly into circuit board through-holes.
Does the J30J-15TJSP come with pre-wired terminations?
Does the J30J-15TJSP come with pre-wired terminations?
No, unlike the ‘J’ type cable connectors, the ‘P’ version features straight through-hole tails intended exclusively for PCB wave or hand soldering.
What is the specific role of the long jackscrews on this board-mounted plug?
What is the specific role of the long jackscrews on this board-mounted plug?
The long jackscrews lock the vertical plug directly to its mating harness receptacle, protecting the underlying board solder joints from dynamic stresses.
Can this connector withstand standard PCB cleaning and soldering temperatures?
Can this connector withstand standard PCB cleaning and soldering temperatures?
Yes, the advanced polymer insulator is designed to handle high-temperature industrial soldering without deformation or pin shifting.
What is the standard contact spacing for the J30J-15TJSP?
What is the standard contact spacing for the J30J-15TJSP?
It features a 1.27mm contact pitch between its 15 pins, which is the standard footprint for the Micro-D series to optimize signal density.
