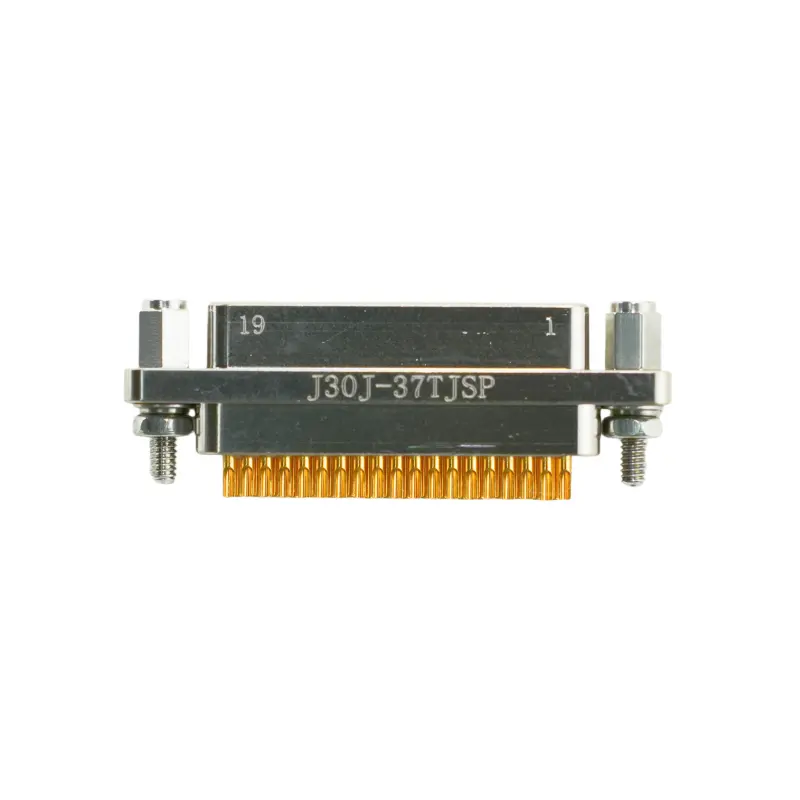

J30J-37TJSP | 37-Pin Micro-D Straight PCB Plug Connector with Long Jackscrews
The J30J-37TJSP is a 37-pin Micro-D straight PCB mount plug connector, featuring an ultra-dense multi-row layout, twist-pin contacts, and extended long jackscrews.
999999 in stock
Share:
Product Categories
Request a Quote
J30J-37TJSP High-Capacity 37-Pin Vertical Integration for High-Layer Boards
The J30J-37TJSP is a high-performance Micro-D plug connector specifically engineered for straight vertical integration onto advanced multi-layer printed circuit boards. Utilizing a thirty-seven pin staggered layout, this interface delivers massive signal concentration without expanding the horizontal footprint on the board edge. This vertical architecture is a major asset for advanced mission computers, high-throughput radar processing units, and multi-channel telemetry systems where internal spatial constraints are extremely severe. By converting cable-to-board pathways into a direct direct interface, it eliminates intermediate wire assemblies and streamlines the overall system architecture.
Key Specifications
Shell Material | Voltage Rating | Current Rating | Operating Temp | Mating Cycles |
|---|---|---|---|---|
Aluminum alloy | ~800 VAC | 3 A | -55 °C to +125 °C | >500 |
Precision Straight Terminals for Uniform Thermal Dissipation
The backend of the J30J-37TJSP features thirty-seven solid metal straight terminals engineered to insert directly into board through-holes. This high terminal count provides an expanded conductive path that aids in uniform heat dissipation across the localized board area, preventing thermal spikes when multiple channels operate at capacity. The pins are manufactured to strict physical tolerances, ensuring a predictable insertion grid that minimizes trace routing complexities on complex multilayer boards. The high-performance polymer insulator maintains structural stability under intense thermal loads, keeping the 1.27mm spacing completely true during industrial soldering processes.
Advanced Twist-Pin Matrix for Uninterrupted Multi-Channel Flow
At the core of the J30J-37TJSP is the specialized elastomeric twist-pin contact system. Each of the thirty-seven male contacts is manufactured using high-tensile copper alloy wire strands that create a spring-like, flexible profile. Upon mating, these pins compress inward against matching socket walls to establish persistent, multi-point physical engagement. This continuous spring pressure removes microscopic surface debris and localized oxidation. The result is a highly reliable electrical connection across all 37 active channels that eliminates momentary circuit disruptions, even when the system is exposed to extreme vibration profiles or harmonic resonance.
High-Tensile Shell Shielding and Dynamic Locking Security
Housed within a premium aluminum alloy shell, the J30J-37TJSP offers excellent physical durability alongside continuous electromagnetic and radio-frequency shielding. The metal casing isolates sensitive signal arrays from external high-frequency interference, maintaining signal clarity for both data and power lines. The ‘L’ hardware designation indicates the inclusion of extended long jackscrews on the mounting ears. This structural design locks the board-mounted plug securely to its mating cable receptacle, transferring physical extraction forces directly into the chassis frame and preventing dynamic stresses from reaching the delicate underlying through-hole solder joints.
Standardized Compliance for Seamless Fleet Modernization
The J30J-37TJSP is built in full accordance with strict international and military-grade Micro-D technical criteria, guaranteeing mechanical and electrical intermateability with matching 37-pin receptacles. This absolute adherence to manufacturing standards streamlines procurement and simplifies legacy system refits, allowing engineering teams to implement immediate board-level upgrades without altering existing structural enclosures. Its verified thermal endurance and physical reliability support dependable performance across tactical UAV control systems, industrial robotics testing arrays, and specialized naval computing hardware.
FAQ
What does the 'P' suffix indicate in the J30J-37TJSP part number?
What does the 'P' suffix indicate in the J30J-37TJSP part number?
The ‘P’ confirms that the connector is a straight PCB mount connector, featuring solid through-hole terminals designed for direct soldering onto a printed circuit board.
How are the 37 contacts arranged within the connector footprint?
How are the 37 contacts arranged within the connector footprint?
To maintain a highly compact envelope, the 37 contacts are arranged in a staggered multi-row configuration with a 1.27mm pitch to optimize signal density.
What is the role of the long jackscrews on this board plug?
What is the role of the long jackscrews on this board plug?
The long jackscrews lock the vertical board-mounted plug securely into its matching cable harness receptacle, isolating the board solder joints from mechanical stress.
Does this 37-pin connector arrive with pre-installed wires?
Does this 37-pin connector arrive with pre-installed wires?
No, the ‘P’ designation identifies it specifically as a straight PCB mount connector with solid metal pins intended exclusively for board through-hole soldering.
Can this straight PCB plug handle high-temperature soldering operations?
Can this straight PCB plug handle high-temperature soldering operations?
Yes, the advanced polymer insulator is designed to resist standard industrial wave and hand soldering temperatures without experiencing warping or pin displacement.
