MS27467T25F37SD RFI Shielded Plug | MIL-DTL-38999 Series I
MS27467T25F37SD is a 37-pin high-performance plug. MIL-DTL-38999 Series I compliant, electroless nickel finish with RFI shielding. [Get a Quote. 15 Min Response]
999999 in stock
Share:
Product Categories
Request a Quote
Product Overview

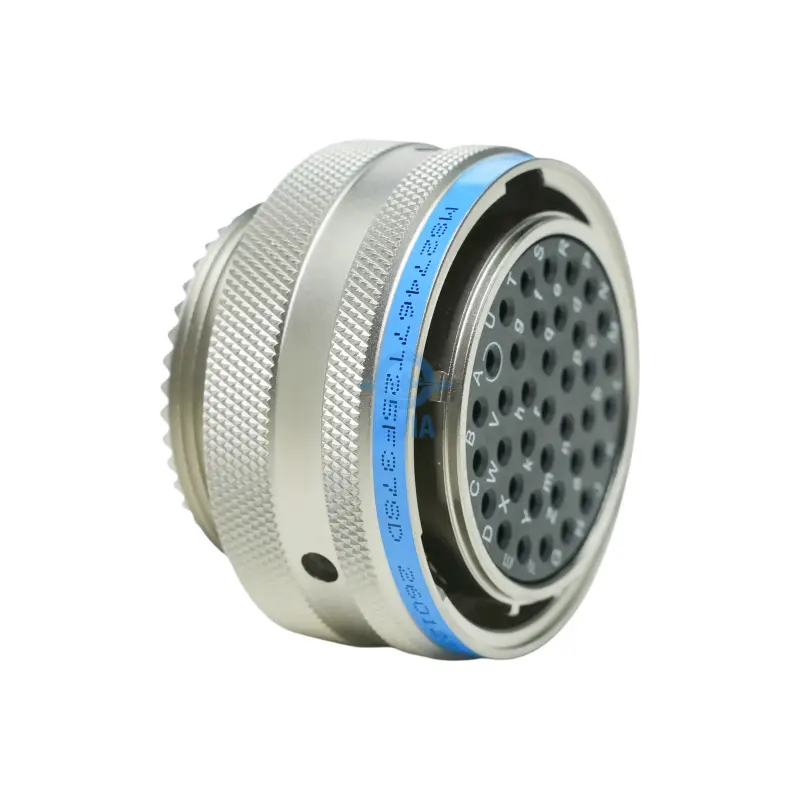

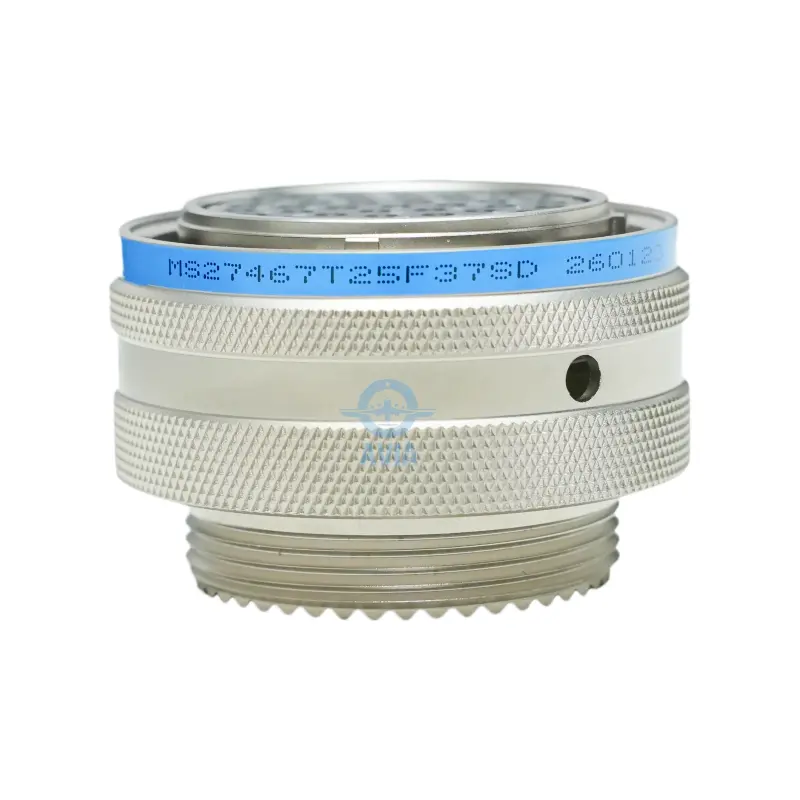

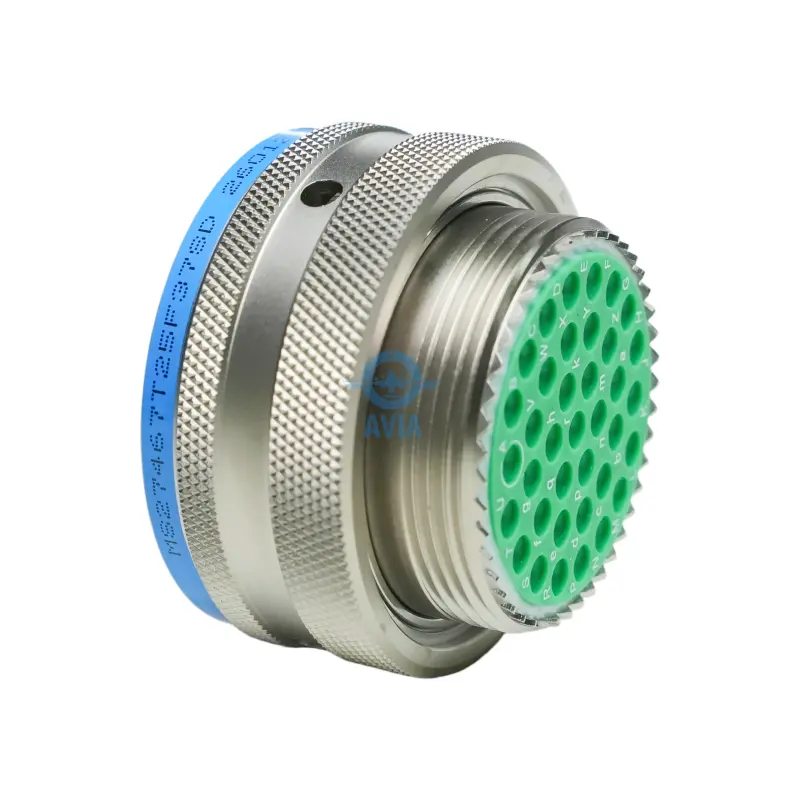

The MS27467T25F37SD is a straight plug circular connector manufactured in accordance with the MIL-DTL-38999 Series II specification. Engineered for demanding military and aerospace applications, this connector is widely used in defense systems, avionics, industrial equipment, and other harsh-environment applications where reliable performance under vibration, moisture, and temperature extremes is critical.

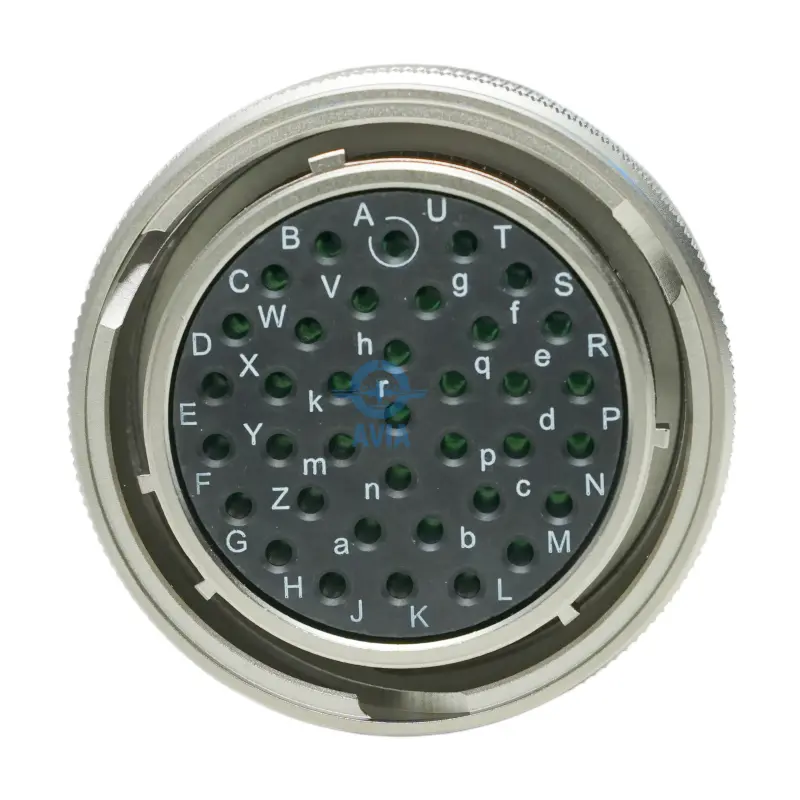

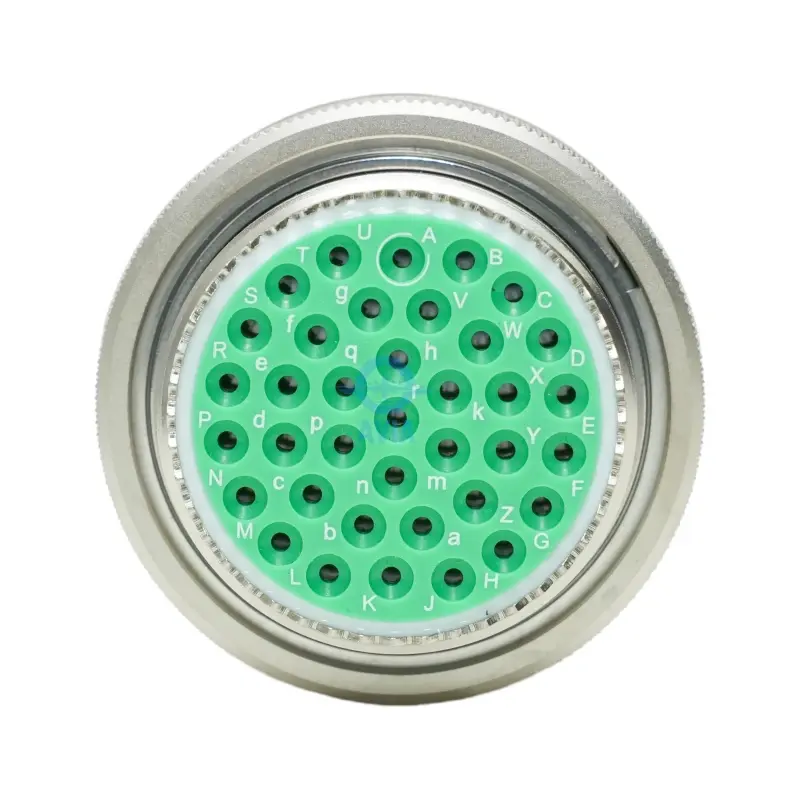

This part number designates a shell size 25 connector with a 37-contact insert arrangement, featuring socket contacts in a straight plug configuration. The MIL-DTL-38999 Series II construction features a threaded coupling mechanism for secure mating, environmental sealing to help protect against moisture and contaminant ingress, and a rugged metal shell designed to provide reliable mechanical and electrical performance under demanding operating conditions.
Part Number Breakdown
Stock & Availability
In Stock / Factory Lead Time
At AVIA Electronics, we understand that your project timelines depend on component reliability. To support your mission-critical operations, we maintain a proactive inventory strategy specifically optimized for the MS27467T25F37SD and our broader line of high-reliability connectors.
In-Stock (Ready to Ship): The MS27467T25F37SD is currently verified in our central facility. Orders placed for these items are processed and dispatched within 24–48 business hours, ensuring minimal downtime for your production or maintenance schedules.
Factory Lead Time: For large-volume requirements of the MS27467T25F37SD or items currently undergoing replenishment, we provide precise, project-specific lead times. We leverage our direct manufacturing partnerships to secure your allocation, offering transparent tracking from the production line to your facility.
Supply Assurance: We prioritize long-term supply stability for our clients. If you require scheduled deliveries, bulk kitting, or buffer stock of the MS27467T25F37SD for multi-phase projects, our logistics team is ready to coordinate a personalized supply plan aligned with your specific project milestones.
Multiple shell sizes available
The MS27467T25F37SD is part of the extensive MIL-DTL-38999 Series II platform, which is engineered for reliable performance across demanding system architectures. We understand that your designs require consistency; therefore, our connector solutions are available in a comprehensive range of shell sizes to ensure an exact mechanical fit for every application.
Full Spectrum of Sizes: While the MS27467T25F37SD represents a specific configuration, the wider MIL-DTL-38999 Series II product line is available in multiple shell sizes and contact arrangements. This allows engineers to scale their designs—from compact signal interfaces to higher-density interconnect applications—without compromising on reliability.
Standardized Interface: MIL-DTL-38999 Series II connectors feature a reliable threaded coupling mechanism designed to provide secure mating and resistance to loosening under vibration. This helps maintain consistent mating procedures and simplifies installation and maintenance across different connector configurations.
Precision Engineering: Regardless of the shell size or contact arrangement selected, MIL-DTL-38999 Series II connectors are manufactured to stringent military-grade requirements. Components are designed for demanding environmental conditions, including high-vibration exposure and temperature extremes, helping ensure reliable electrical performance throughout the service life of the system.
Custom configurations supported
At AVIA Electronics, we recognize that off-the-shelf components may not always meet the unique demands of your high-performance systems. While the MS27467T25F37SD represents a standard high-reliability configuration, we offer extensive support for custom engineering to ensure our products integrate perfectly into your specific design architecture.
Bespoke Pin & Insert Arrangements: If your project requires a specific contact layout or a particular combination of power and signal contacts, we can facilitate suitable insert arrangements while maintaining the stringent performance requirements associated with MIL-DTL-38999 connectors.
Specialized Plating & Material Options: Beyond standard shell finishes and contact configurations, we support customized material and plating options where applicable, including solutions designed to enhance corrosion resistance, EMI shielding, or mechanical durability for demanding operating environments.
Modified Shell Geometries: For space-constrained installations, we assist in sourcing or coordinating modified shell configurations, including custom mounting solutions, extended shell features, or backshell configurations that can help reduce assembly complexity and optimize system integration.
Turnkey Kitting & Integration: We offer custom kitting services where we package the MS27467T25F37SD with application-specific accessories—such as protective covers, backshells, heat-shrink boots, or cable assemblies—ready for efficient integration into your production or maintenance workflow.
Sample Policy & Flexible Order Support
At AVIA Electronics, we provide premium, high-reliability interconnect solutions. To ensure the performance of the MS27467T25F37SD meets your precise engineering requirements, we offer a professional sampling service. We are committed to supporting innovation at every stage of your product lifecycle.
Sample Availability: We provide samples of the MS27467T25F37SD for engineering qualification and prototype testing. As these are high-performance military-grade components, a nominal sample fee applies to cover the material cost and individual handling. This ensures that you receive verified, defect-free parts that are representative of your final production batch.
No Minimum Order Quantity (No MOQ): We believe in supporting innovation regardless of scale. Whether you need a single unit for a critical repair or a small pilot batch for system integration, we operate with no minimum order quantity. You have the flexibility to procure exactly what your current phase requires without the burden of overstocking.
Streamlined Fulfillment: Our logistics team treats every sample order with the same rigor as bulk shipments. From the moment your sample request is processed, we ensure secure, industrial-grade packaging and rapid dispatch, helping you maintain your project momentum.
Logistics & Distribution Services
AVIA Electronics utilizes a reliable distribution framework to ensure the secure and accurate delivery of components to global destinations. Shipping options available for your order are calculated and displayed during the checkout process based on your specific requirements.
Supported Carriers & Services
We partner with established logistics providers to offer a range of delivery solutions:
Express Carriers: DHL, UPS, FedEx, SF Express
Postal & Standard Services: Belgium Post, Global Direct Standard Line, Registered Mail
Shipping Cost Calculation
Shipping charges are dynamically calculated at checkout to ensure accuracy. The final cost is determined by the following variables:
Package Weight: The total combined weight of the products and necessary protective packaging.
Service Selection: Costs vary depending on the chosen carrier and the selected service level (e.g., expedited express vs. standard delivery).
Destination: Rates are adjusted based on the specific country or region of delivery.
Technical Specifications
Basic Info.
|
Model NO. |
MS27467T25F37SD |
|---|---|
|
Application |
Industrial Automation |
|
Contact Material |
Copper |
|
Shell Material |
Aluminum alloy |
|
Shell Size |
25 |
|
Termination Style |
Crimp |
|
Contact Plating |
Gold |
|
Transport Package |
Standard Expect Package |
|
Origin |
China |
|
Production Capacity |
100000 |
|
Certification |
ISO 9001, ISO 14001, ISO 45001, CE, RoHS, REACH, IP68, 500-Hour Salt Spray Tested |
|---|---|
|
Contact Resistance |
≤ 12.0(mΩ) |
|
Surface Treatment |
Olive green cadmium plating |
|
Processing and Customization |
OEM/ODM |
|
Shell Style |
Plug |
|
Mounting Style |
Plug |
|
Mating Style |
Triple-Start Threaded Coupling |
|
Grommet and seal |
Silicon rubber |
|
Endurance |
500 cycles |
|
Trademark |
AVIA |
|
HS Code |
8536901100 |
Packaging & Weight
|
Package Size |
41.00cm * 31.00cm * 30.00cm |
|---|---|
|
Package Gross Weight |
100g |
Mechanical Specifications
Vibration
|
Sine |
60g, with temperature cycling and simulated accessory (36 hours) |
|---|---|
|
Random |
44.1 grms in high temperature 49.5 grms in ambient temperature |
|
Shock |
At 3 ms half sinusoid, peak value of acceleration: 300g |
Contact Retention
|
22D# |
45N |
|---|---|
|
20# |
67N |
|
16# |
111N |
|
12# |
111N |
|
10# |
111N |
|
8 # |
111N |
Electrical Performance
Voltage rating (V)
|
Package Size |
M |
N |
I |
II |
|---|---|---|---|---|
|
Sea level |
1300 |
1000 |
1800 |
2300 |
|
21000M |
800 |
600 |
1000 |
1000 |
Contact resistance and rated current
|
Contact Size |
Diameter (mm) |
Resistance (mΩ) |
Current (A) |
|---|---|---|---|
|
22D# |
Φ 0.76 |
≤ 12.0 |
5.0 |
|
20# |
Φ 1.00 |
≤ 5.0 |
7.5 |
|
16# |
Φ 1.60 |
≤ 2.5 |
13.0 |
|
12# |
Φ 2.40 |
≤ 1.5 |
23.0 |
|
10# |
Φ 3.15 |
≤ 1.0 |
40.0 |
Environmental Performance
Operating temperature
|
W class |
-65 oC ~ +175 oC |
|---|---|
|
K, F class |
-65 oC ~ +200 oC |
Salt spray
|
F class |
48h |
|---|---|
|
W class |
500h |
|
K class |
1000h |
Typical Applications
- Military Communication
- Aerospace Systems
- UAV & Defense Electronics
- Industrial Automation
Cross-Reference & Mating
Compatible Brands & Mating
|
Brands |
Equivalents |
Mates |
|---|---|---|
|
Amphenol |
LJT06RE25-35PN(453) |
LJT00RE25-35SN(453) |
|
Souriau |
- |
- |
|
ITT Cannon |
- |
- |
|
Aero/Conesys |
- |
- |
|
Deutsch |
- |
- |
Compatible Backshells & Caps
|
Type |
Backshells |
Dust Caps |
|---|---|---|
|
Straight, Grommet Nut |
M85049/14-19S |
D38999/33K19N |
|
45°Quick Clamp |
M85049/15-19S |
|
|
90°Quick Clamp |
M85049/16-19S |
|
|
Straight, Spin Coupling Environmental EMI/RFI Backshell |
M85049/18-19S |
|
|
Straight, Spin Coupling Non-Environmental EMI/RFI Backshell |
M85049/19-19S |
|
|
Straight Crimp Ring Adapter |
M85049/20-19S |
|
|
Straight, Spin Coupling Non-Environmental Backshell |
M85049/21-19S |
|
|
Straight Strain Relief Clamp |
M85049/38-19S |
|
|
90°Strain Relief Clamp |
M85049/39-19S |
|
|
45°, Spin Coupling Environmental EMI/RFI Backshell |
M85049/78-19S |
|
|
90°, Spin Coupling Environmental EMI/RFI Backshell |
M85049/79-19S |
|
|
Straight, Spin Coupling, cont. Shrink Boot Adapter |
M85049/69-19S |
|
|
Straight, Self-Lock Band Lock Adapter |
M85049/88-19S |
|
|
45°, Self-Lock Band Lock Adapter |
M85049/89-19S |
|
|
90°, Self-Lock Band Lock Adapter |
M85049/90-19S |
|
|
Straight Pre-Shield Adapter |
M85049/115-19S |
|
|
90°Pre-Shield Adapter |
M85049/117-19S |
|
|
Straight, Strain Relief Clamp |
M85049/124-19S |
|
|
90°Strain Relief Clamp |
M85049/126-19S |
