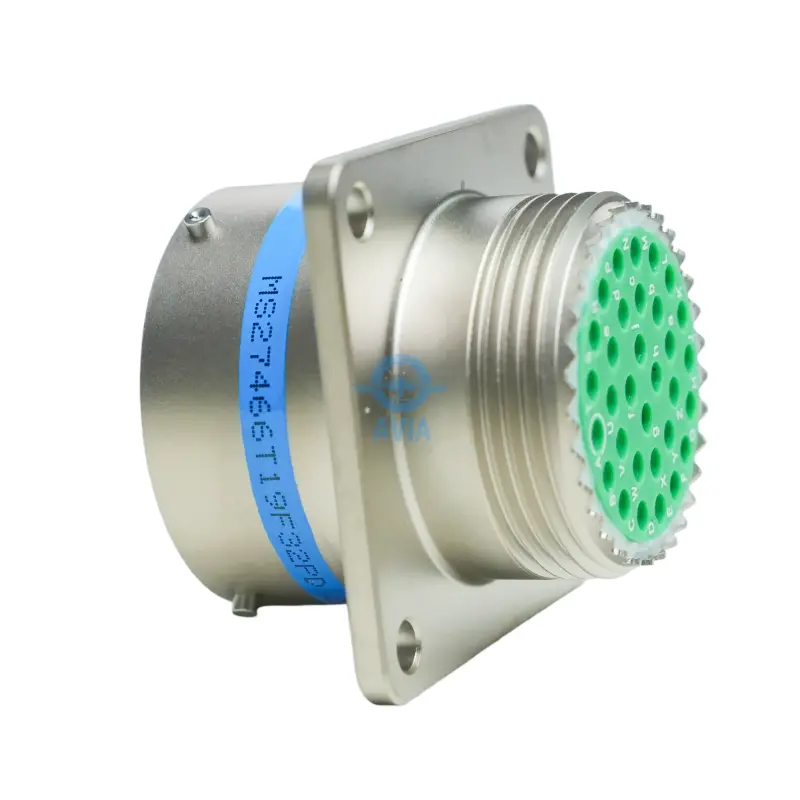

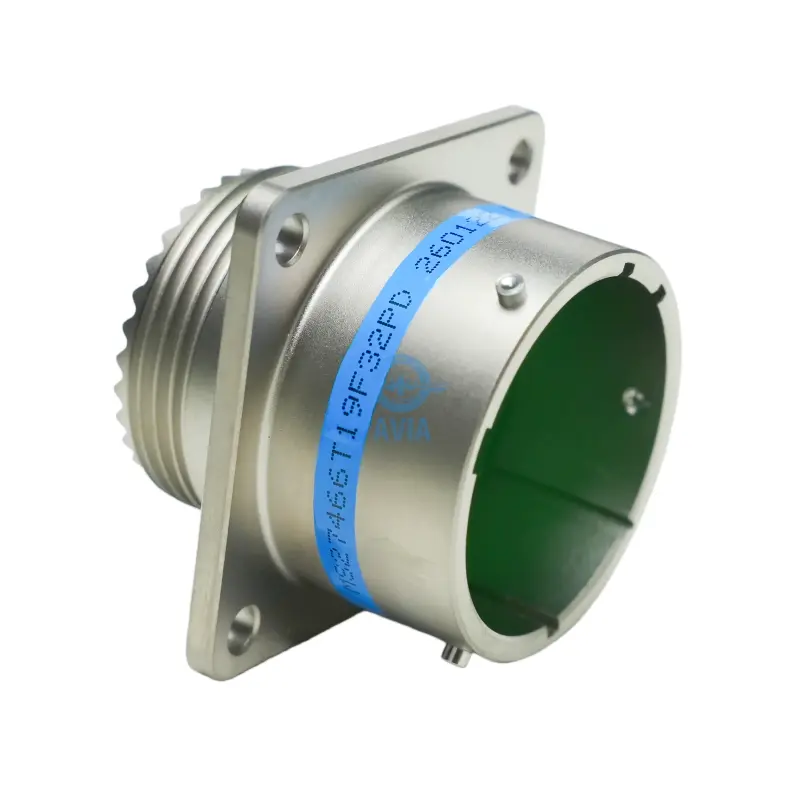

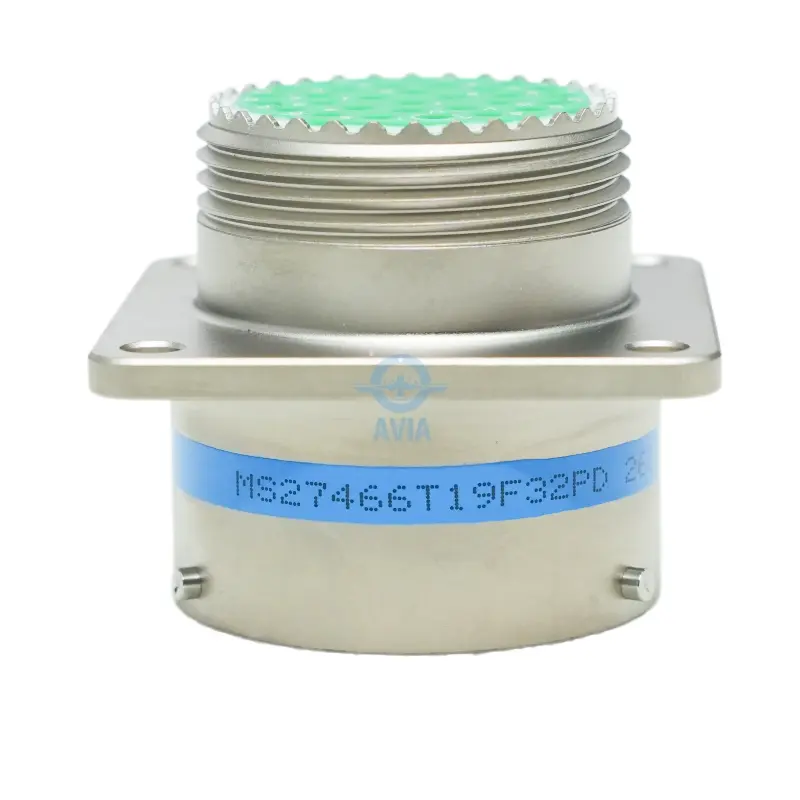

MS27466T19F32PD Wall Mount Receptacle | MIL-DTL-38999 Series I
MS27466T19F32PD is a 32-pin wall mount receptacle for aviation. MIL-DTL-38999 Series I compliant with electroless nickel finish. [Click Here! Get a Quote. 15 Min Response]
999999 in stock
Share:
Product Categories
Request a Quote
Product Overview
The MS27466T19F32PD is a high-reliability circular connector designed for demanding electrical and mechanical applications where secure connections and dependable performance are essential. It is part of the MS27466 series of military-style connectors, making it suitable for aerospace, defense, industrial, transportation, and other harsh-environment systems where resistance to vibration, moisture, and temperature variation is required.

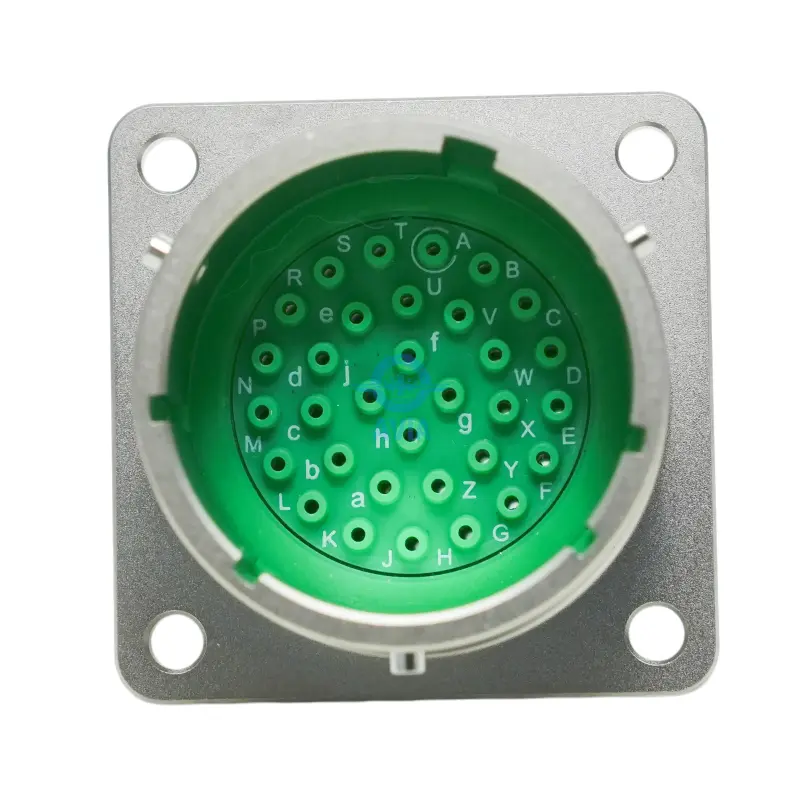

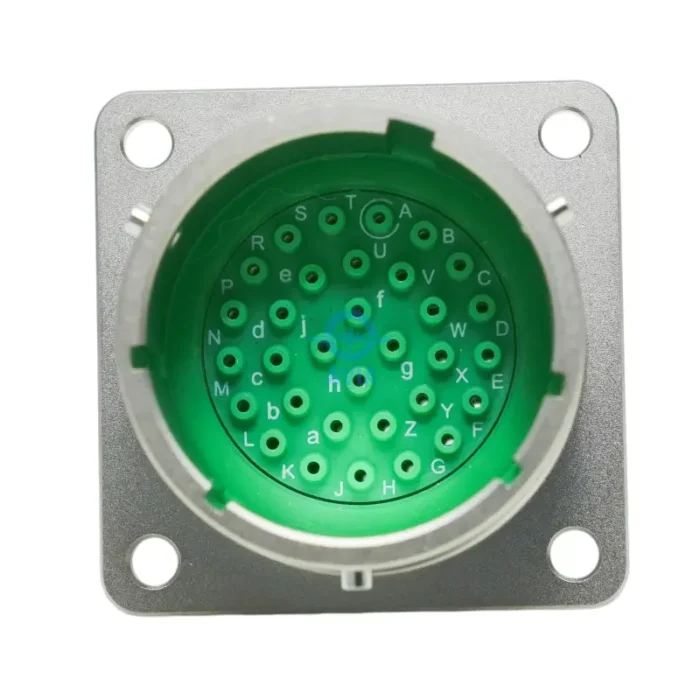

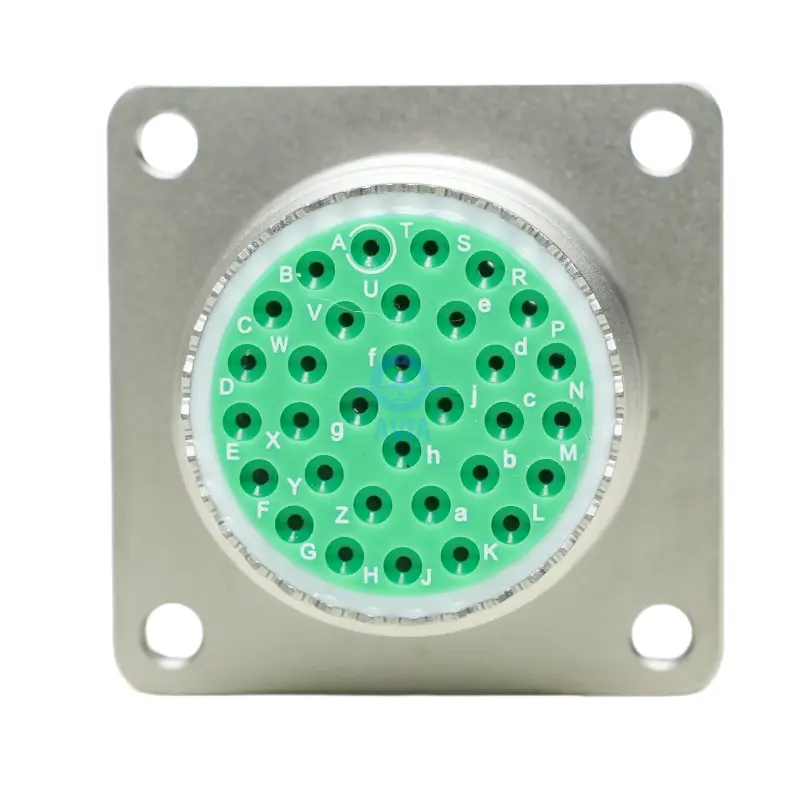

The MS27466T19F32PD features a shell size 19 configuration with 32 contacts and a pin contact arrangement. Its robust circular design provides secure mating and reliable electrical connectivity, while the connector’s environmental construction helps protect the contact interface against moisture, dust, and other contaminants. The connector is well suited for applications requiring durable, space-efficient interconnect solutions with consistent mechanical and electrical performance.
Part Number Breakdown
Stock & Availability
In Stock / Factory Lead Time
At AVIA Electronics, we understand that your project timelines depend on component reliability. To support your mission-critical operations, we maintain a proactive inventory strategy specifically optimized for the MS27466T19F32PD and our broader line of high-reliability connectors.
In-Stock (Ready to Ship): The MS27466T19F32PD is currently verified in our central facility. Orders placed for this item are processed and dispatched within 24–48 business hours, ensuring minimal downtime for your production or maintenance schedules.
Factory Lead Time: For large-volume requirements of the MS27466T19F32PD or items currently undergoing replenishment, we provide precise, project-specific lead times. We leverage our direct manufacturing partnerships to secure your allocation, offering transparent tracking from the production line to your facility.
Supply Assurance: We prioritize long-term supply stability for our clients. If you require scheduled deliveries, bulk kitting, or buffer stock of the MS27466T19F32PD for multi-phase projects, our logistics team is ready to coordinate a personalized supply plan aligned with your specific project milestones.
Multiple shell sizes available
The MS27466T19F32PD is part of the MS27466 series of high-reliability circular connectors, designed to provide consistent mechanical and electrical performance across a broad range of system architectures. We understand that your designs require compatibility and flexibility; therefore, our connector solutions are available in multiple shell sizes and contact configurations to support a wide variety of application requirements.
Full Range of Configurations: While the MS27466T19F32PD represents a specific configuration, the broader MS27466 series is available in various shell sizes, contact arrangements, and termination options. This allows engineers to select the appropriate connector configuration for compact signal interfaces, control systems, power distribution, and other demanding applications.
Consistent Interface Design: The MS27466 series is designed around standardized circular connector dimensions and mating interfaces, helping maintain compatibility and simplify installation across different equipment configurations. This consistent design approach can reduce engineering complexity and support easier maintenance and replacement.
Precision Engineering: Regardless of the configuration selected, MS27466 series connectors are manufactured for reliable performance in demanding operating environments. Their robust construction and secure mating design make them suitable for applications where resistance to vibration, environmental exposure, and mechanical stress is essential.
Custom configurations supported
At AVIA Electronics, we recognize that off-the-shelf components may not always meet the unique demands of your high-performance systems. While the MS27466T19F32PD represents a standard high-reliability configuration, we offer extensive support for custom engineering to help ensure our connector solutions integrate effectively into your specific design architecture.
Bespoke Contact & Insert Arrangements: If your project requires a specific contact layout or a customized combination of power and signal contacts, we can support tailored insert configurations to meet your electrical and mechanical requirements.
Specialized Plating & Material Options: Depending on your application requirements, we can assist with suitable contact plating, shell materials, and surface treatments to improve corrosion resistance, electrical performance, environmental durability, or weight optimization.
Modified Shell Configurations: For space-constrained or application-specific installations, we can support customized connector configurations, including modified mounting arrangements, shell dimensions, or compatible backshell and accessory solutions to simplify system integration.
Turnkey Kitting & Integration: We also provide customized kitting services, combining the MS27466T19F32PD with application-specific accessories such as protective covers, backshells, cable assemblies, and other related components for streamlined installation and production.
Sample Policy & Flexible Order Support
At AVIA Electronics, we provide high-reliability interconnect solutions to support demanding engineering and industrial applications. To help ensure that the MS27466T19F32PD meets your precise engineering requirements, we offer a professional sampling service. We are committed to supporting your development, qualification, and production needs at every stage of the product lifecycle.
Sample Availability: We provide samples of the MS27466T19F32PD for engineering evaluation, qualification, and prototype testing. A nominal sample fee may apply to cover material and individual handling costs, helping ensure that you receive verified parts representative of the production configuration.
No Minimum Order Quantity (No MOQ): We support projects of different sizes without imposing a minimum order quantity. Whether you need a single unit for evaluation or a small pilot batch for system integration, you can order according to your actual development or production requirements without unnecessary overstocking.
Streamlined Fulfillment: Our logistics team handles sample orders with the same attention to packaging and product protection as larger shipments. Once your sample request is confirmed, we arrange secure, industrial-grade packaging and prompt dispatch to help keep your engineering and production schedules on track.
Logistics & Distribution Services
AVIA Electronics utilizes a reliable distribution framework to ensure the secure and accurate delivery of components to global destinations. Shipping options available for your order are calculated and displayed during the checkout process based on your specific requirements.
Supported Carriers & Services
We partner with established logistics providers to offer a range of delivery solutions:
Express Carriers: DHL, UPS, FedEx, SF Express
Postal & Standard Services: Belgium Post, Global Direct Standard Line, Registered Mail
Shipping Cost Calculation
Shipping charges are dynamically calculated at checkout to ensure accuracy. The final cost is determined by the following variables:
Package Weight: The total combined weight of the products and necessary protective packaging.
Service Selection: Costs vary depending on the chosen carrier and the selected service level (e.g., expedited express vs. standard delivery).
Destination: Rates are adjusted based on the specific country or region of delivery.
Technical Specifications
Basic Info.
|
Model NO. |
MS27466T19F32PD |
|---|---|
|
Application |
Industrial Automation |
|
Contact Material |
Copper |
|
Shell Material |
Aluminum alloy |
|
Shell Size |
19 |
|
Termination Style |
Crimp |
|
Contact Plating |
Gold |
|
Transport Package |
Standard Expect Package |
|
Origin |
China |
|
Production Capacity |
100000 |
|
Certification |
ISO 9001, ISO 14001, ISO 45001, CE, RoHS, REACH, IP68, 500-Hour Salt Spray Tested |
|---|---|
|
Contact Resistance |
≤ 12.0(mΩ) |
|
Surface Treatment |
Olive green cadmium plating |
|
Processing and Customization |
OEM/ODM |
|
Shell Style |
Wall Mount Receptacle |
|
Mounting Style |
Wall Mount Receptacle |
|
Mating Style |
Triple-Start Threaded Coupling |
|
Grommet and seal |
Silicon rubber |
|
Endurance |
500 cycles |
|
Trademark |
AVIA |
|
HS Code |
8536901100 |
Packaging & Weight
|
Package Size |
41.00cm * 31.00cm * 30.00cm |
|---|---|
|
Package Gross Weight |
100g |
Mechanical Specifications
Vibration
|
Sine |
60g, with temperature cycling and simulated accessory (36 hours) |
|---|---|
|
Random |
44.1 grms in high temperature 49.5 grms in ambient temperature |
|
Shock |
At 3 ms half sinusoid, peak value of acceleration: 300g |
Contact Retention
|
22D# |
45N |
|---|---|
|
20# |
67N |
|
16# |
111N |
|
12# |
111N |
|
10# |
111N |
|
8 # |
111N |
Electrical Performance
Voltage rating (V)
|
Package Size |
M |
N |
I |
II |
|---|---|---|---|---|
|
Sea level |
1300 |
1000 |
1800 |
2300 |
|
21000M |
800 |
600 |
1000 |
1000 |
Contact resistance and rated current
|
Contact Size |
Diameter (mm) |
Resistance (mΩ) |
Current (A) |
|---|---|---|---|
|
22D# |
Φ 0.76 |
≤ 12.0 |
5.0 |
|
20# |
Φ 1.00 |
≤ 5.0 |
7.5 |
|
16# |
Φ 1.60 |
≤ 2.5 |
13.0 |
|
12# |
Φ 2.40 |
≤ 1.5 |
23.0 |
|
10# |
Φ 3.15 |
≤ 1.0 |
40.0 |
Environmental Performance
Operating temperature
|
W class |
-65 oC ~ +175 oC |
|---|---|
|
K, F class |
-65 oC ~ +200 oC |
Salt spray
|
F class |
48h |
|---|---|
|
W class |
500h |
|
K class |
1000h |
Typical Applications
- Military Communication
- Aerospace Systems
- UAV & Defense Electronics
- Industrial Automation
Cross-Reference & Mating
Compatible Brands & Mating
|
Brands |
Equivalents |
Mates |
|---|---|---|
|
Amphenol |
LJT00RE19-32PD(453) |
LJT06RE19-32SD(453) |
|
Souriau |
- |
- |
|
ITT Cannon |
- |
- |
|
Aero/Conesys |
- |
- |
|
Deutsch |
- |
- |
Compatible Backshells & Caps
|
Type |
Backshells |
Dust Caps |
|---|---|---|
|
Straight, Grommet Nut |
M85049/14-19S |
D38999/33K19N |
|
45°Quick Clamp |
M85049/15-19S |
|
|
90°Quick Clamp |
M85049/16-19S |
|
|
Straight, Spin Coupling Environmental EMI/RFI Backshell |
M85049/18-19S |
|
|
Straight, Spin Coupling Non-Environmental EMI/RFI Backshell |
M85049/19-19S |
|
|
Straight Crimp Ring Adapter |
M85049/20-19S |
|
|
Straight, Spin Coupling Non-Environmental Backshell |
M85049/21-19S |
|
|
Straight Strain Relief Clamp |
M85049/38-19S |
|
|
90°Strain Relief Clamp |
M85049/39-19S |
|
|
45°, Spin Coupling Environmental EMI/RFI Backshell |
M85049/78-19S |
|
|
90°, Spin Coupling Environmental EMI/RFI Backshell |
M85049/79-19S |
|
|
Straight, Spin Coupling, cont. Shrink Boot Adapter |
M85049/69-19S |
|
|
Straight, Self-Lock Band Lock Adapter |
M85049/88-19S |
|
|
45°, Self-Lock Band Lock Adapter |
M85049/89-19S |
|
|
90°, Self-Lock Band Lock Adapter |
M85049/90-19S |
|
|
Straight Pre-Shield Adapter |
M85049/115-19S |
|
|
90°Pre-Shield Adapter |
M85049/117-19S |
|
|
Straight, Strain Relief Clamp |
M85049/124-19S |
|
|
90°Strain Relief Clamp |
M85049/126-19S |
