Y50DX22-05TJ2WL2: Heavy-Duty Connectivity for Critical Infrastructure

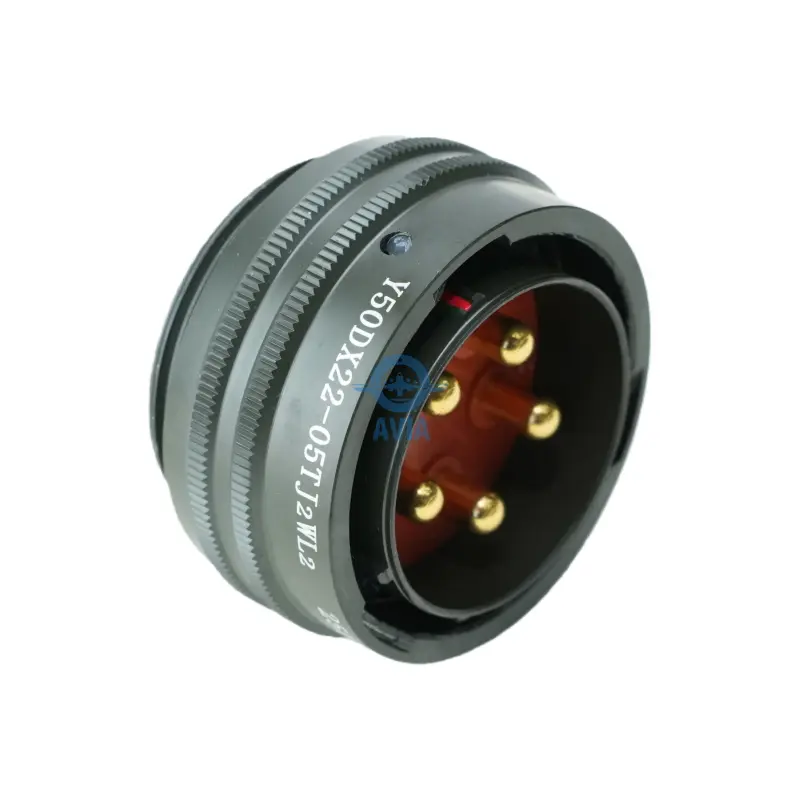

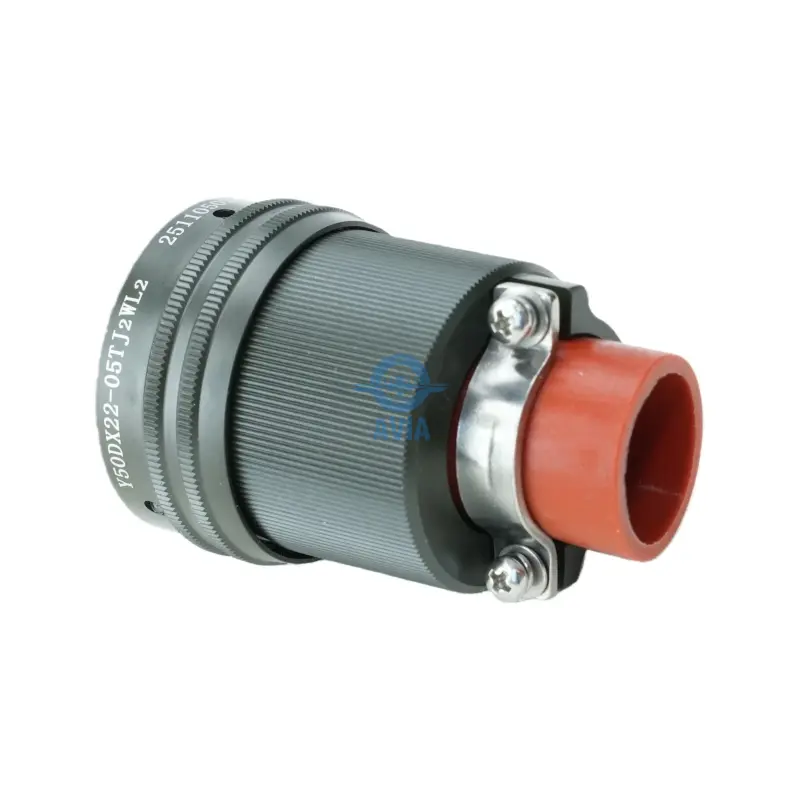

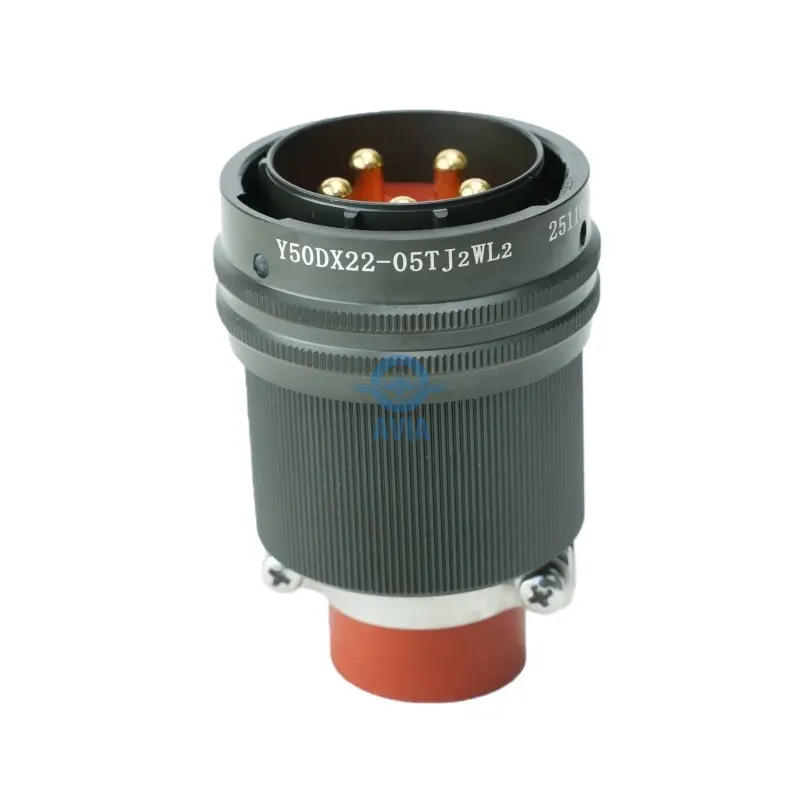

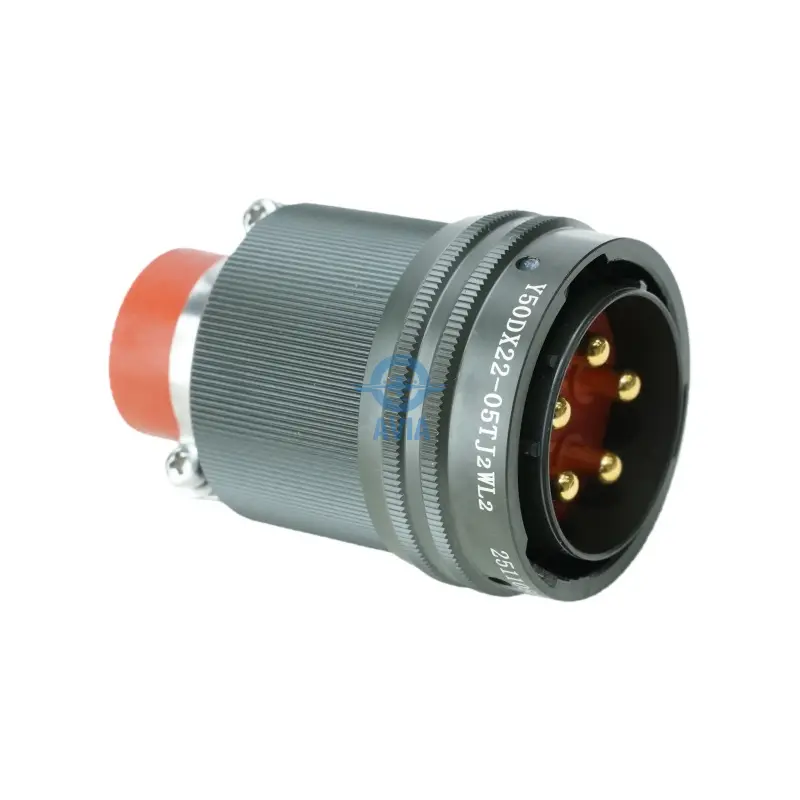

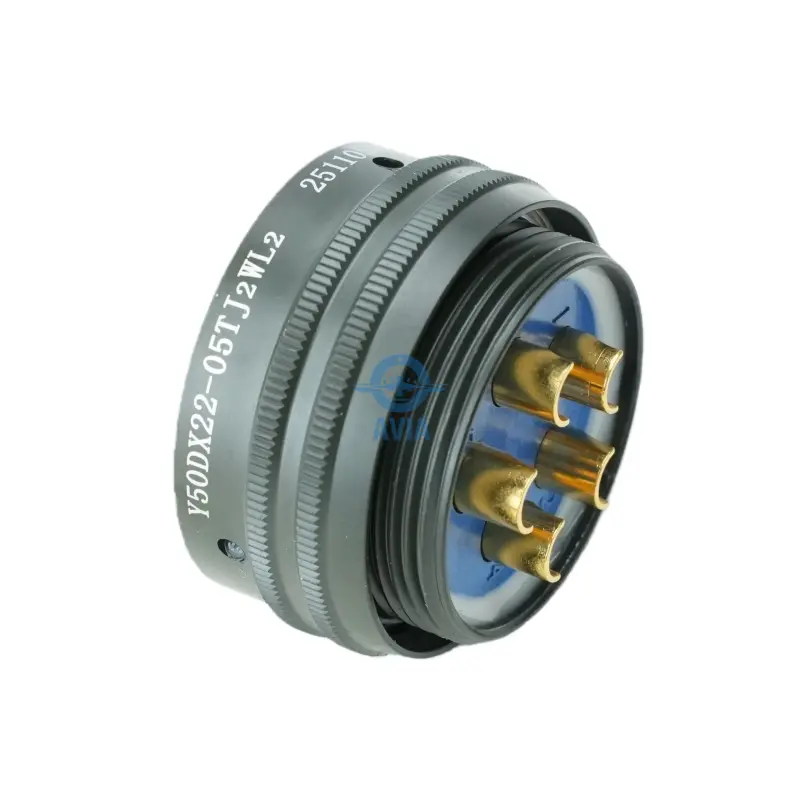

In the demanding landscape of industrial power distribution and heavy machinery, the reliability of a single connection point can determine the uptime of an entire system. The Y50DX22-05TJ2WL2 is a precision-engineered 5-pin circular connector housed in a reinforced size 22 alloy shell. This configuration is specifically designed for high-current applications and multi-circuit control environments where mechanical durability and electrical integrity are non-negotiable. As a core component of the Y50DX series standards, it delivers tactical performance for localized infrastructure projects.
Key Specifications
Shell Material | Voltage Rating | Current Rating | Operating Temp | Ingress Protection | Mating Cycles | Keying & Polarization | Coupling |
|---|---|---|---|---|---|---|---|
Aluminum alloy | ~1000 VAC | ~40 A | -55 °C to +150 °C | IP67 | 500 | N | Quick bayonet coupling |
Technical Excellence: The System Engineer’s Perspective
For designers managing large-scale motor controllers or industrial power cabinets, the Y50DX22-05TJ2WL2 provides a high-density power solution. The size 22 shell architecture offers superior physical protection and enhanced dielectric spacing, effectively preventing electrical arcing and signal interference in high-voltage environments.
Key Technical Highlights:

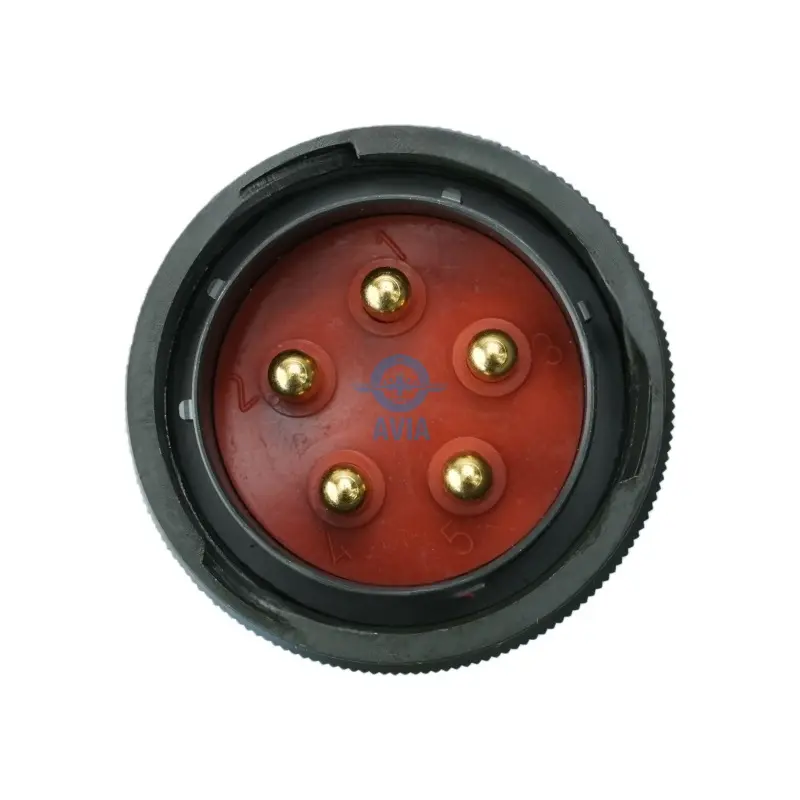

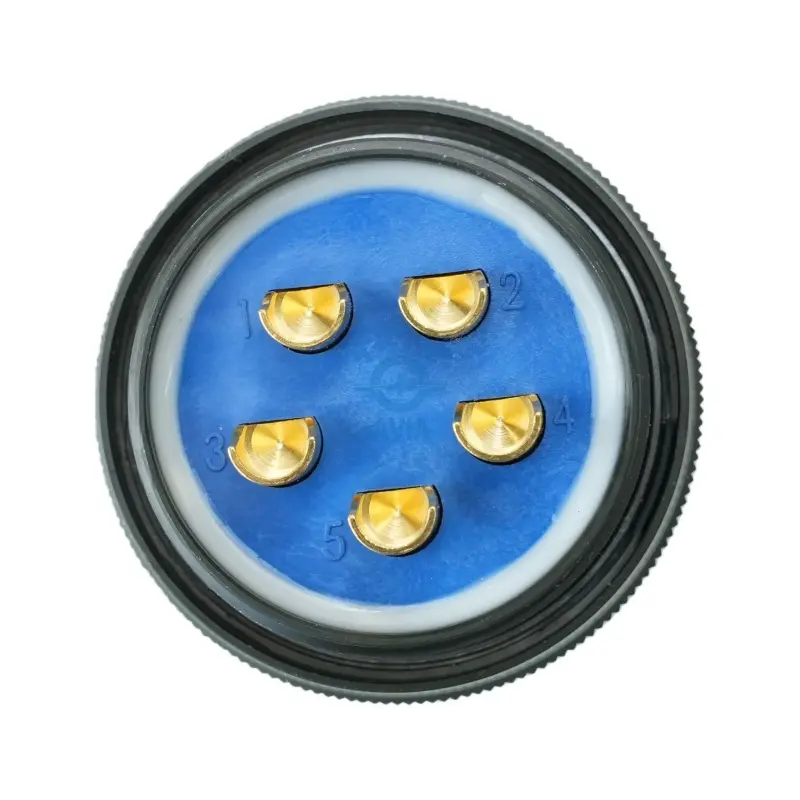

Model Configuration: Y50DX22-05TJ2WL2 (5-Pin arrangement)
Shell Geometry: Size 22 high-strength alloy with tactical anti-corrosion finish
Contact Performance: Optimized for high-current loads with low contact resistance
Coupling Logic: Rapid bayonet system for vibration-proof mating

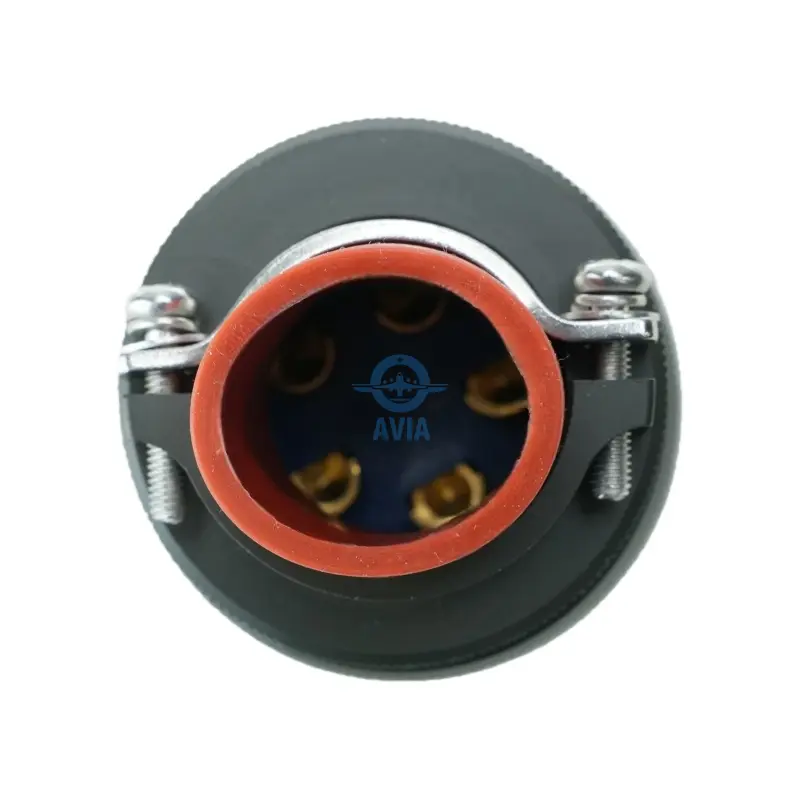

Termination Specification: TJ2WL2 enhanced design for heavy-duty wiring harnesses
The WL2 designation within this series indicates specialized shell enhancements and sealing technology, ensuring that the connector maintains a gas-tight seal even under continuous mechanical harmonic stress and thermal cycling.
Strategic Procurement: The Buyer’s Advantage
Procurement officers and technical buyers looking to optimize their supply chain often face long lead times from traditional military-grade suppliers. The Y50DX22-05TJ2WL2 offers a strategic industrial alternative, adhering to Y50DX series standards to ensure full intermateability with existing international hardware while significantly reducing procurement cycles.
Why Procurement Teams Prioritize This Model:
Supply Chain Stability: Consistent availability for major industrial hubs in Russia and the Middle East
Cost-to-Performance Ratio: Tactical grade reliability without the excessive price premiums of aerospace-only components
Speed of Service: Our 15-minute response protocol ensures your bidding and procurement cycles stay on track
We provide all necessary technical drawings and quality assurance reports required to pass localized industrial inspections and integrate seamlessly into your Bill of Materials (BOM).
Market Value: Insights for Distribution Partners
Traders and regional distributors recognize the Y50DX22-05TJ2WL2 as a high-turnover item for heavy industry. The 5-pin configuration is a universal standard for 3-phase power systems with additional grounding or signaling lines, ensuring a broad and consistent customer base.
Distribution Benefits:
Versatile Application: Essential for power cabinets, mining equipment, and telecommunication racks
Technical Support Package: We provide CAD models and spec sheets to help you support your end-users during the design-in phase
Reliable Logistics: Proven shipping routes to support localized hardware markets without logistical delays
FAQ
What makes the WL2 suffix unique in the Y50DX22-05TJ2WL2?
What makes the WL2 suffix unique in the Y50DX22-05TJ2WL2?
The WL2 suffix denotes a reinforced shell design with enhanced environmental sealing and strain relief, specifically engineered for high-wear outdoor industrial environments where moisture and dust are prevalent.
Can this 5-pin connector handle 3-phase AC power simultaneously?
Can this 5-pin connector handle 3-phase AC power simultaneously?
Yes. The 22-05 arrangement is frequently used for 3-phase power distribution, with the remaining pins utilized for grounding or secondary control signals. Please consult the datasheet for specific current limits per contact.
Is the Y50DX22-05TJ2WL2 compatible with other Y50 series receptacles?
Is the Y50DX22-05TJ2WL2 compatible with other Y50 series receptacles?
Absolutely. It is designed to be fully intermateable with all standard size 22-05 sockets within the Y50DX series standards, ensuring seamless integration into existing systems.
Does the shell material provide EMI/RFI shielding?
Does the shell material provide EMI/RFI shielding?
The high-strength alloy shell provides inherent electromagnetic shielding, protecting internal signal integrity from external interference, which is vital for precise control logic in industrial cabinets.
How can I verify the lead time for an order of 1,000+ units?
How can I verify the lead time for an order of 1,000+ units?
Simply initiate a request through our 15-minute response chat. We can provide real-time stock levels and estimated shipping schedules for large-scale industrial procurement immediately.
