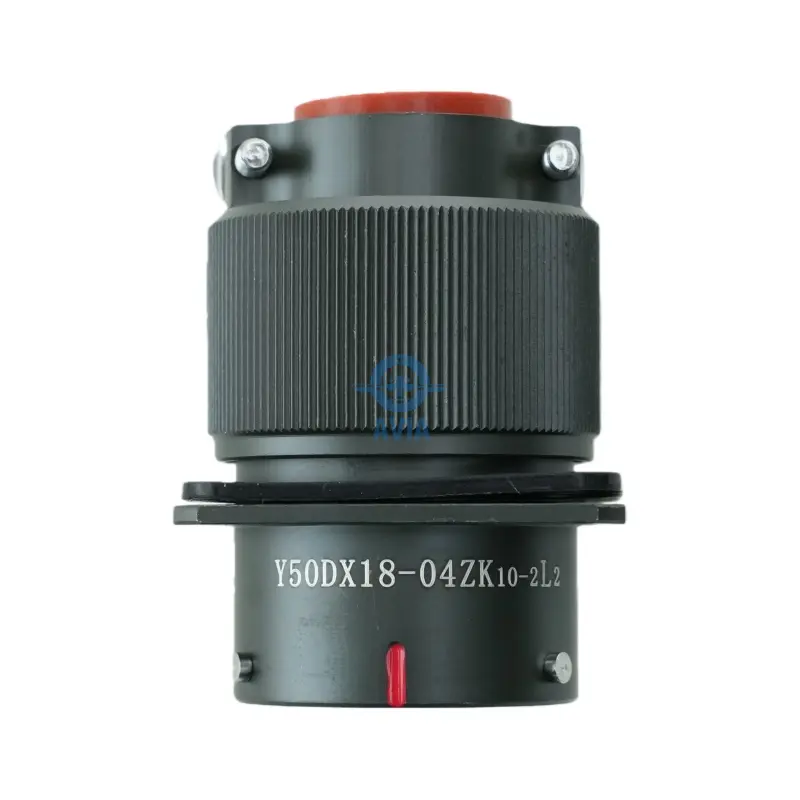

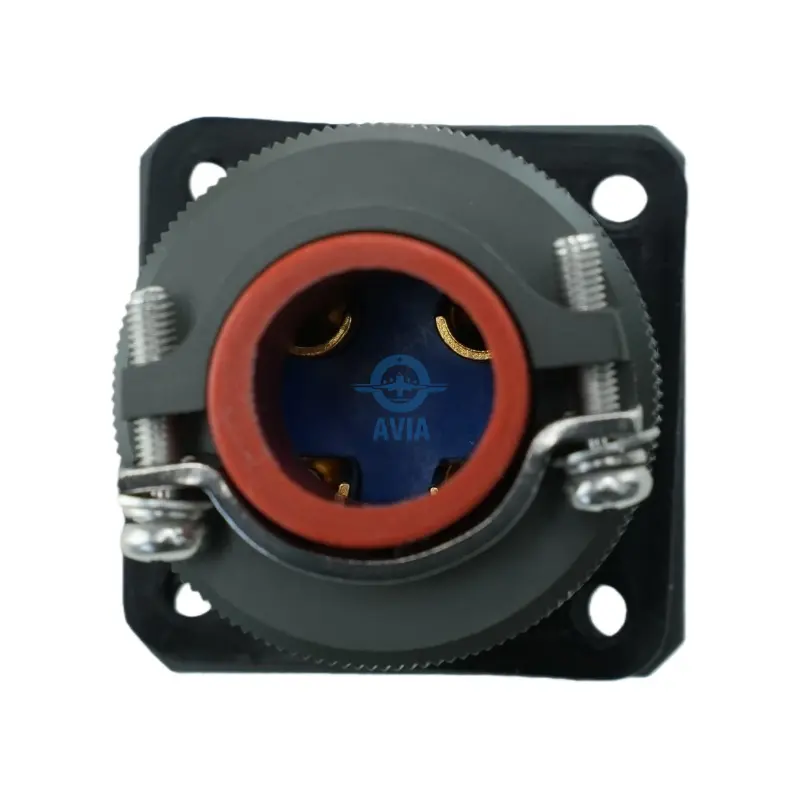

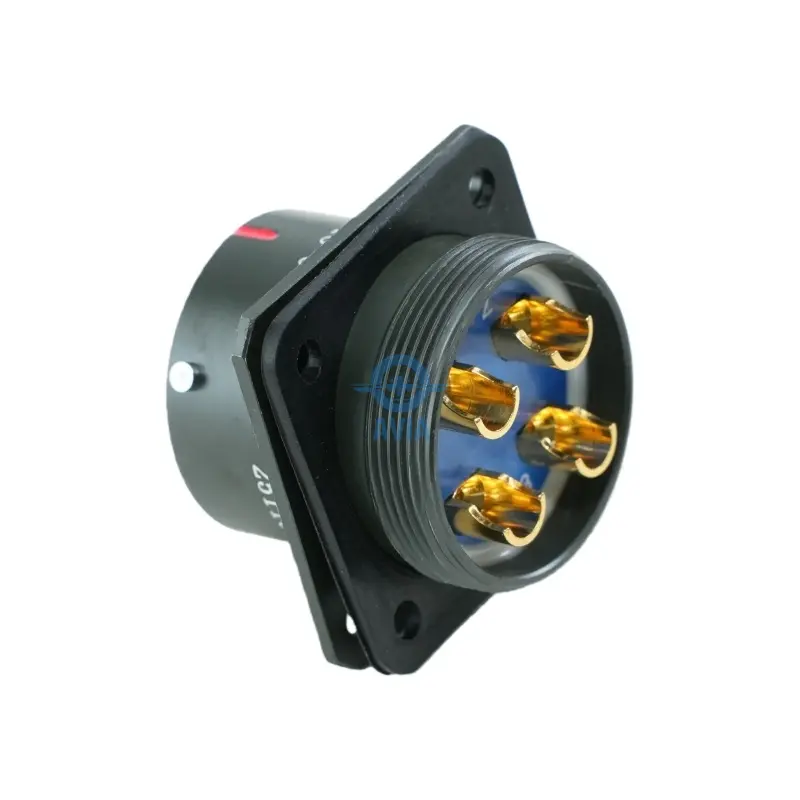

Y50DX18-04ZK10-2L2: Specialized Chassis Receptacle for Industrial Systems
Electrical stability starts at the interface of the enclosure. The Y50DX18-04ZK10-2L2 is a specialized 4-pin circular receptacle designed for fixed-mount applications. As a core component within the Y50DX series standards, this size 18 socket provides a robust gateway for power and signal transmission, ensuring that internal electronics remain shielded while maintaining a secure connection point for external cables.
Основные характеристики
Материал оболочки | Номинальное напряжение | Текущий рейтинг | Рабочая температура | Степень защиты от проникновения влаги и пыли | Циклы спаривания | Ключевая модуляция и поляризация | Соединение |
|---|---|---|---|---|---|---|---|
Алюминиевый сплав | ~1000 В переменного тока | ~40 А | от -55 °C до +150 °C | IP67 | 500 | N | Быстроразъемное штыковое соединение |
Technical Architecture for Hardware Integration
For engineers designing control cabinets or modular power units, the Y50DX18-04ZK10-2L2 provides a standardized footprint for panel integration. This receptacle is engineered to handle mechanical stress at the mounting point, offering superior vibration resistance and electrical insulation.
Core Technical Parameters:
Model: Y50DX18-04ZK10-2L2
Series: Y50DX Series Standards

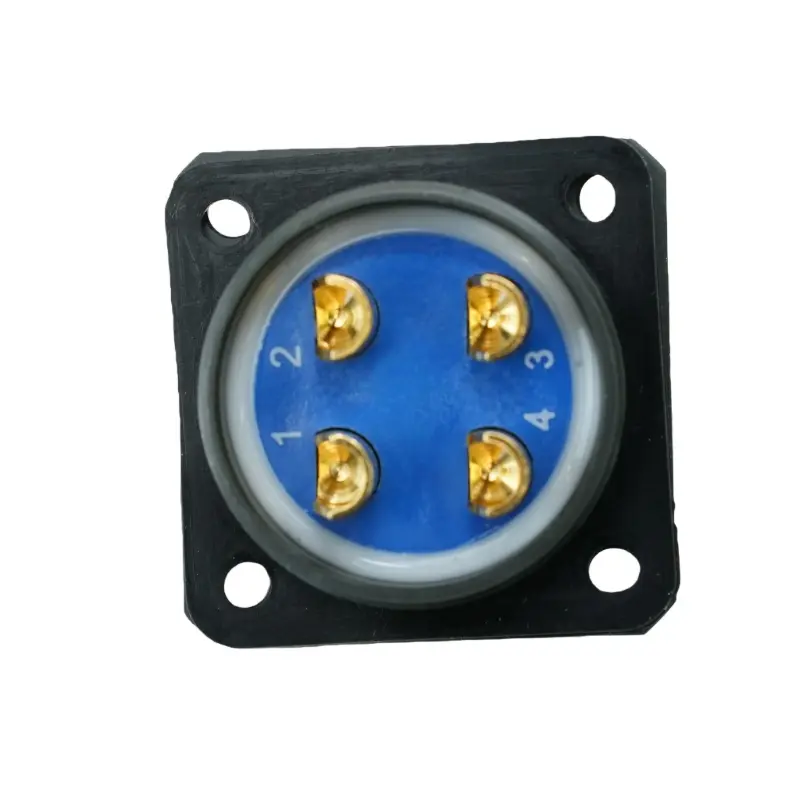

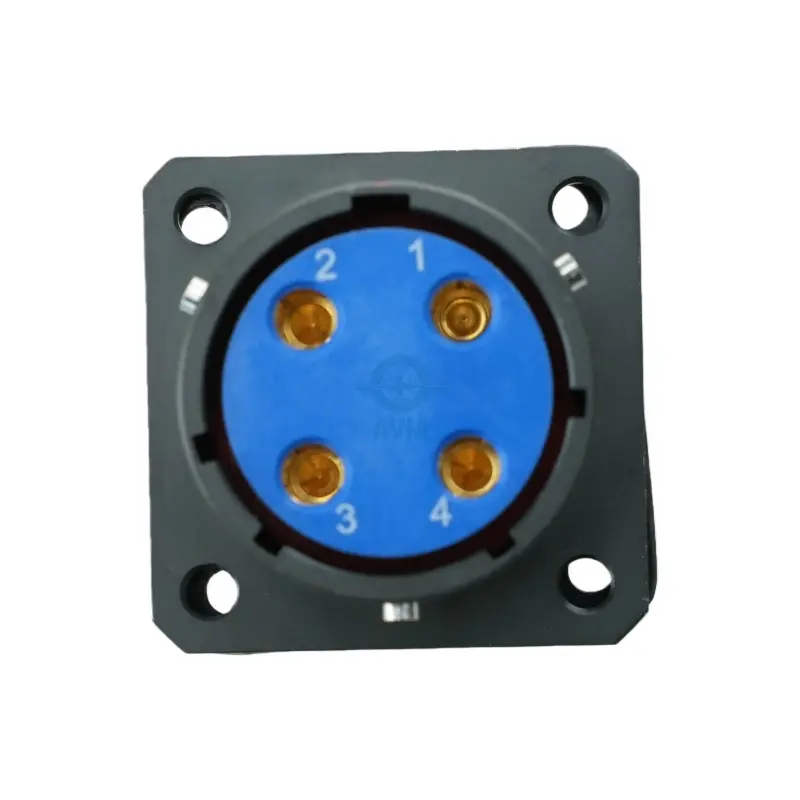

Contact Arrangement: 04 (4 Female socket contacts)
Shell Size: 18 (Precision-machined alloy)

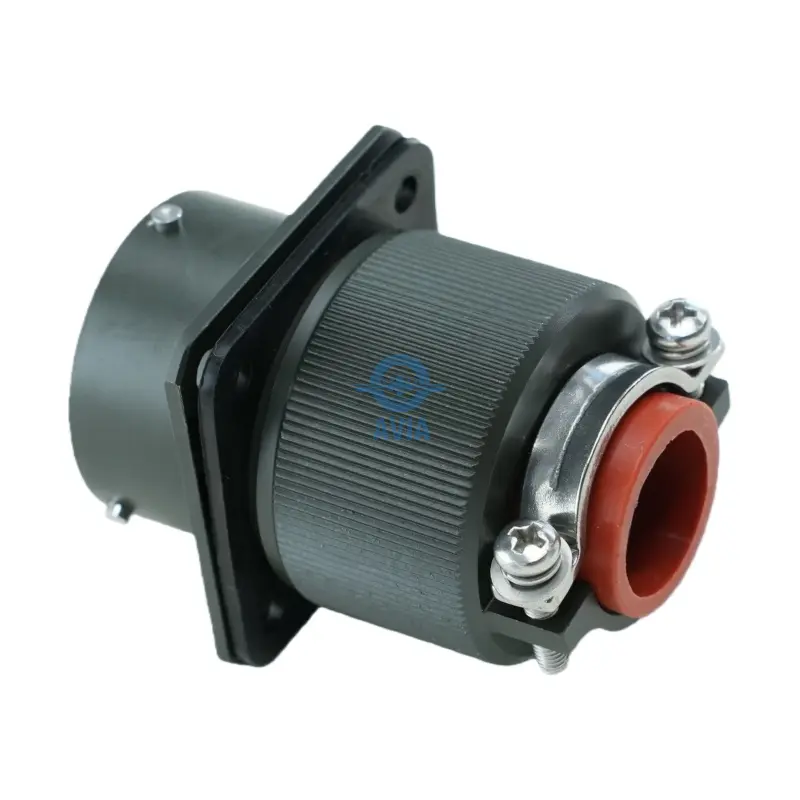

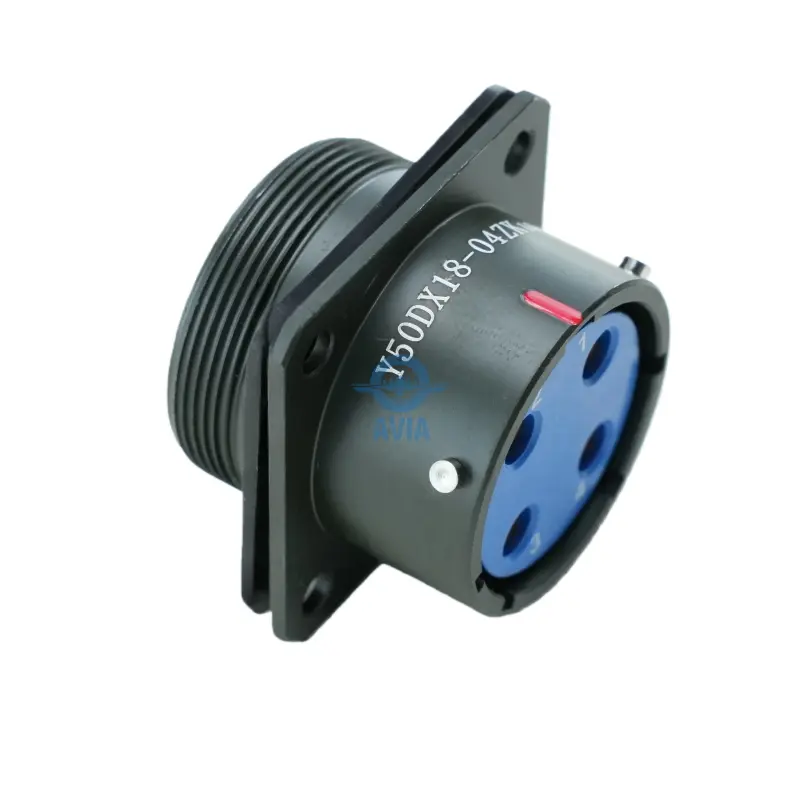

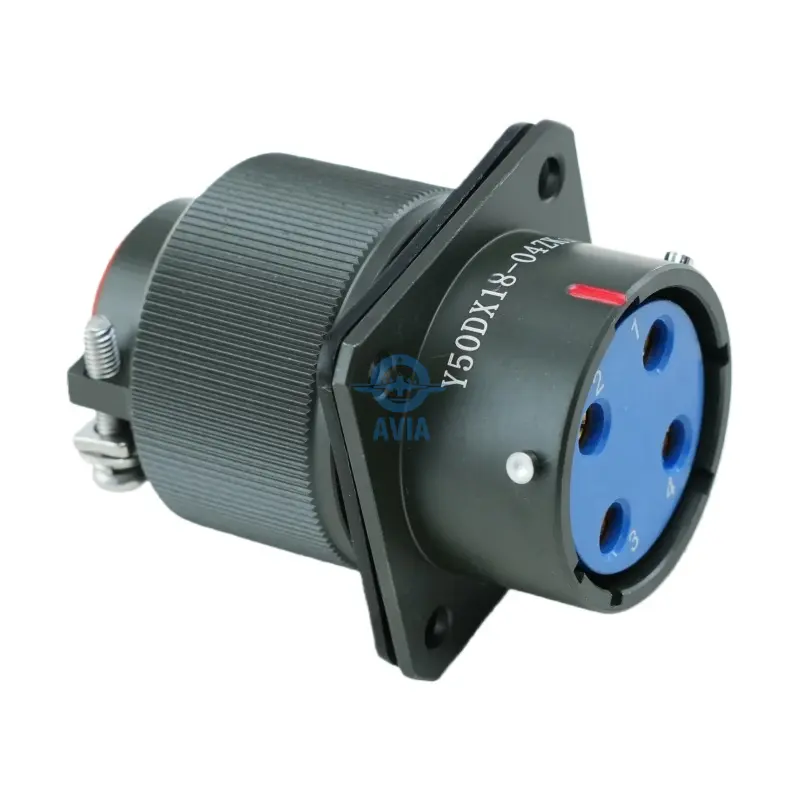

Mounting Type: Square flange for stable chassis fixing
Connection Design: ZK10-2 specialized internal configuration
The use of high-grade dielectric insulators ensures that the 4-pin layout maintains signal integrity even in environments prone to electromagnetic interference. This makes it an ideal selection for industrial sensor arrays and localized telecommunication nodes.
Strategic Procurement and Supply Chain Reliability
For procurement managers, the Y50DX18-04ZK10-2L2 serves as a critical asset for maintaining project timelines. By adhering to Y50DX series standards, this receptacle offers a reliable and intermateable solution that mitigates the risks of global sourcing delays.
Procurement Advantages:
Direct Compatibility: Mates perfectly with Y50DX series 18-04 plugs
Strategic Inventory: Maintained in high volumes for rapid deployment to industrial hubs
Efficiency Protocol: Receive a formal technical quotation within 15 minutes of inquiry
We provide the necessary technical drawings and compliance documentation required to clear quality inspections for localized infrastructure tenders in diverse international markets.
Market Positioning for Trading Partners
Distributors and traders recognize the Y50DX18-04ZK10-2L2 as a high-turnover component. Because receptacles are the foundation of any panel-build project, they are often required in significant quantities during the initial phase of equipment manufacturing.
Key Benefits for Distributors:
Versatile Application: Suitable for motor controls, power distribution, and robotics
Technical Support: We offer the data required to support your end-users during the design-in phase
Logistical Optimization: Specialized shipping routes to support localized hardware markets in Russia and the Middle East
Часто задаваемые вопросы
What are the specific dimensions for the Y50DX18-04ZK10-2L2 mounting flange?
What are the specific dimensions for the Y50DX18-04ZK10-2L2 mounting flange?
This model follows standard size 18 flange patterns. We can provide precise CAD files to assist with your enclosure CNC milling process.
Is the Y50DX18-04ZK10-2L2 compatible with other Y50 series variations?
Is the Y50DX18-04ZK10-2L2 compatible with other Y50 series variations?
While it strictly follows Y50DX series standards, it is designed for maximum intermateability with standard industrial circular plugs. Our team can verify compatibility within minutes.
Does this receptacle support environmental sealing?
Does this receptacle support environmental sealing?
Yes, when used with appropriate gaskets and mated with a sealed plug, it provides significant protection against ingress from dust and moisture.
How does the shell plating handle outdoor industrial exposure?
How does the shell plating handle outdoor industrial exposure?
The high-strength alloy shell features specialized plating designed to resist oxidation and thermal stress in harsh localized climates.
Can I request a bulk price list for the 18-04ZK10-2L2?
Can I request a bulk price list for the 18-04ZK10-2L2?
Absolutely. Our 15-minute response protocol ensures you receive updated pricing and availability reports for large-scale procurement immediately.
