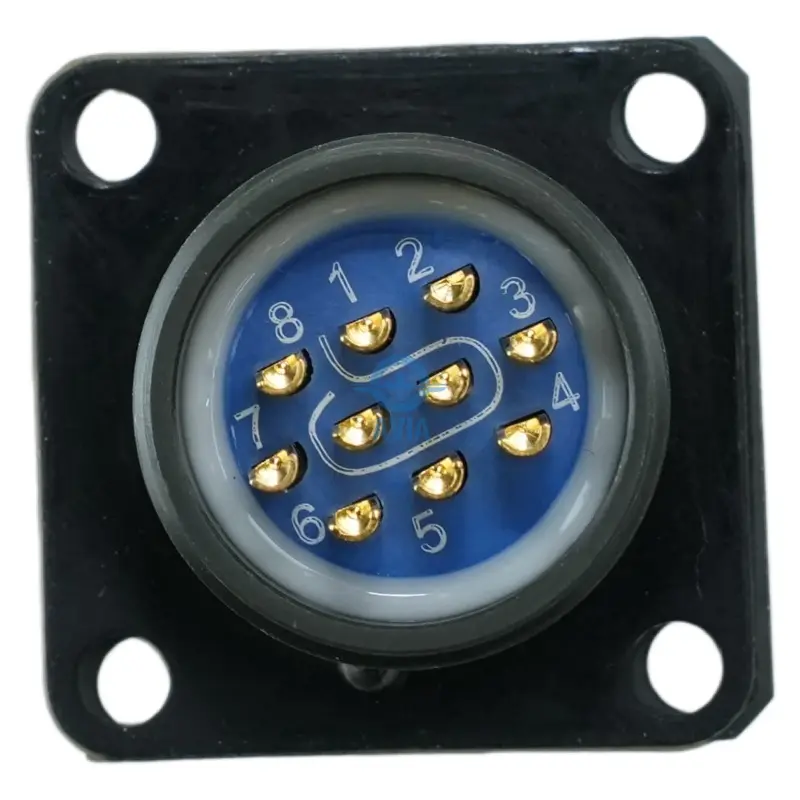

Он Y50X12-10ZK10-2WL2 is a precision-engineered receptacle designed for panel-mount applications where a stable and secure interface is required. The size 12 shell is a mid-range compact housing that efficiently accommodates 10 independent electrical channels. The square flange (ZK10) design provides a large surface area for secure mounting to equipment chassis or control panels, distributing mechanical stress evenly across the mounting hardware. This ensures that the connector remains immobile even when subjected to high-frequency vibrations or the mechanical torque of frequent mating cycles.

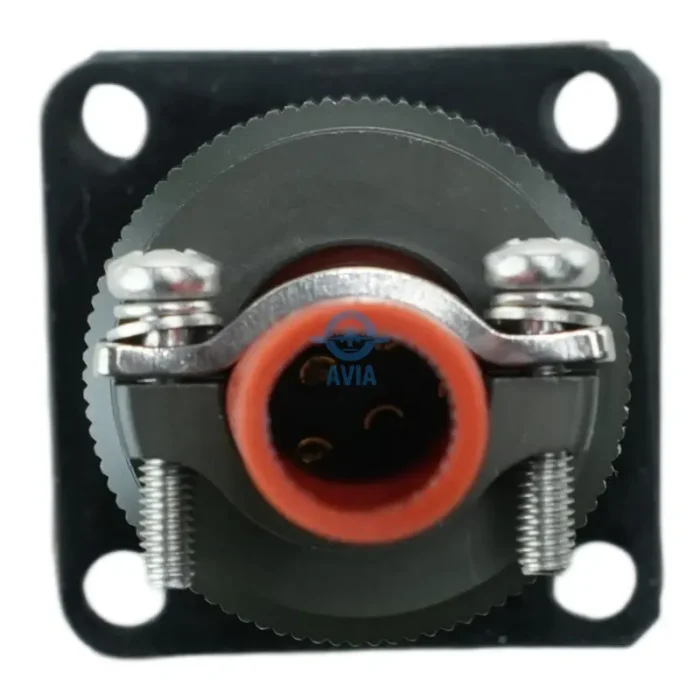

The primary locking interface utilizes the standardized three-point bayonet coupling system. This mechanism allows for rapid connection with a matching plug through a 120-degree rotation, providing tactile and audible feedback when the lock is fully engaged. The inclusion of the 2WL2 backshell adds a critical layer of protection for the rear of the receptacle. This backshell provides a secure cable entry point and integrated strain relief, protecting the internal solder or crimp terminations from being compromised by mechanical pulling or bending within the equipment housing.
