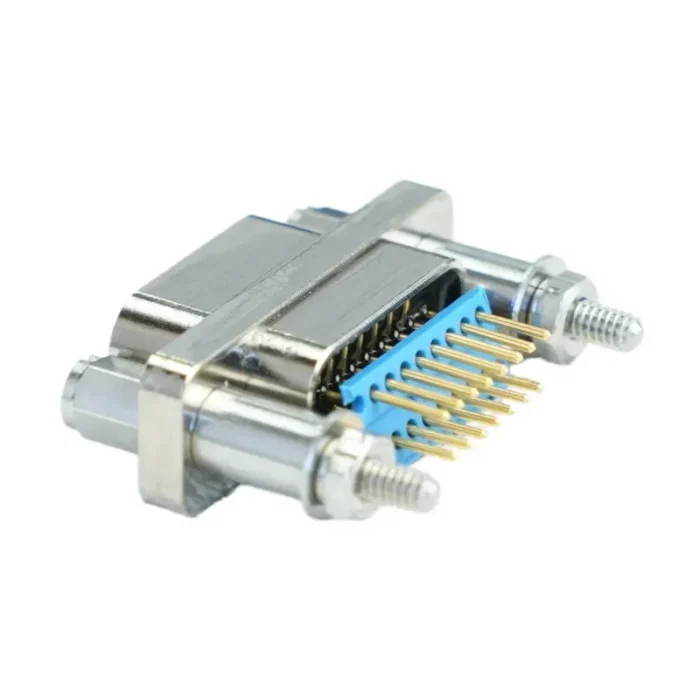

J30J-15ZKNP5-J | 15-Pin Micro-D Straight PCB Receptacle Connector with P5 Grid
The J30J-15ZKNP5-J is a 15-pin Micro-D straight PCB mount receptacle connector featuring a specialized P5 terminal layout and integrated J-type threaded jackposts.
999999 in stock
Share:
Product Categories
Request a Quote
J30J-15ZKNP5-J Optimized 15-Pin Vertical Board Interface
The J30J-15ZKNP5-J is a premium Micro-D receptacle connector engineered for direct vertical integration onto multi-layer printed circuit boards. By utilizing a 15-pin dual-row configuration within a compact housing, this board-mounted receptacle allows system designers to significantly expand localized I/O channels. This vertical architecture minimizes the overall footprint occupied on the board surface, freeing up space for critical passive and active computing assets. It is highly effective for advanced radar processing cards, tactical avionics modules, and payload-sensitive telemetry devices where every square millimeter is vital.
Key Specifications
Shell Material | Voltage Rating | Current Rating | Operating Temp | Mating Cycles |
|---|---|---|---|---|
Aluminum alloy | ~800 VAC | 3 A | -55 °C to +125 °C | >500 |

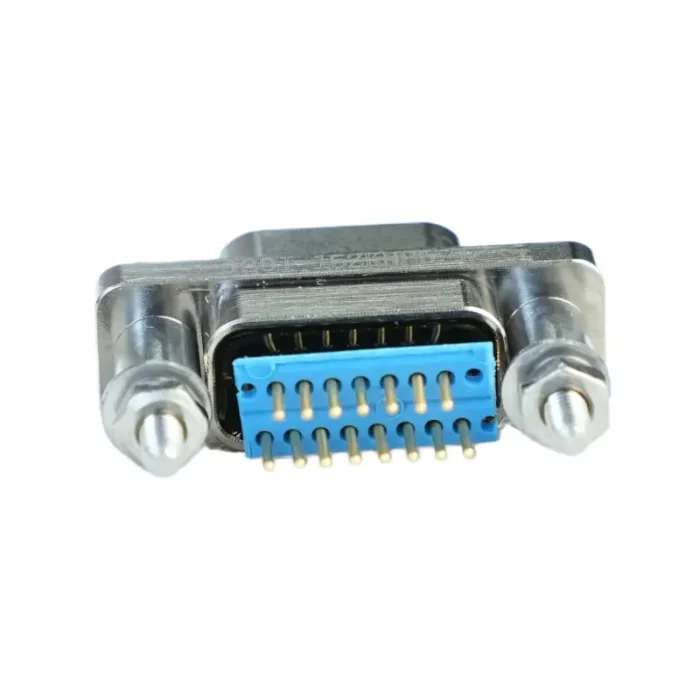

Specialized P5 Grid for Advanced Signal Routing
The P5 designation represents a highly specific terminal length and grid layout variant. The fifteen solid pins exit the rear of the insulator in a precisely engineered grid pattern that balances mechanical support with trace routing efficiency. This layout ensures optimal spatial isolation between neighboring pins, preventing internal circuit crosstalk and localized noise spikes. The exact terminal length ensures complete insertion through standard and heavy multi-layer boards, allowing for uniform solder fillets that withstand continuous thermal fluctuations without experiencing structural degradation or electrical failures.

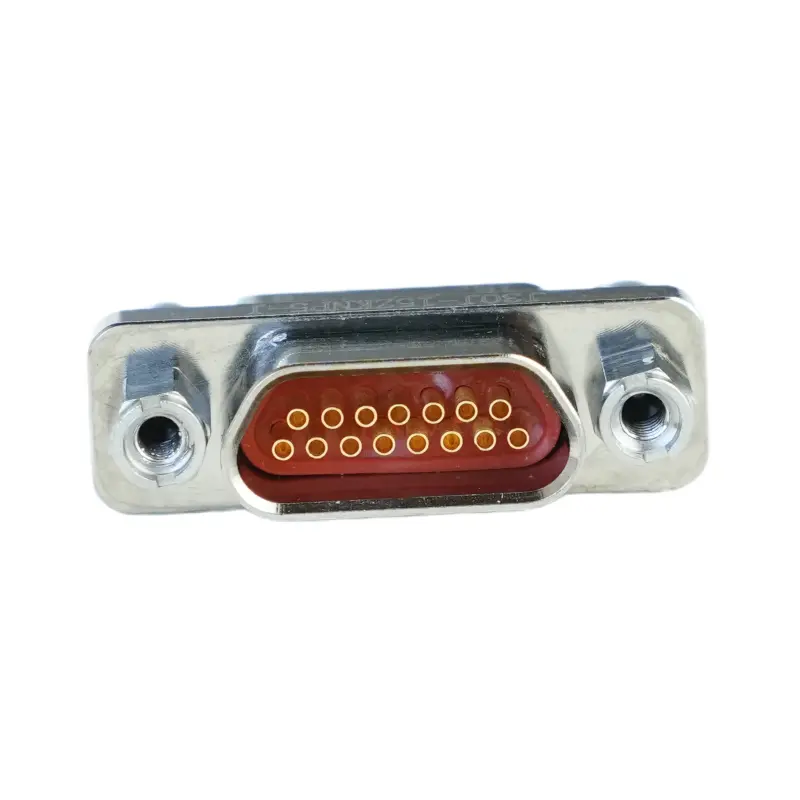

Precision Socket Contact Design and Wiping Action
As a dedicated receptacle, the J30J-15ZKNP5-J houses fifteen high-performance socket contacts designed to receive standard Micro-D twist-pins. These internal female sleeves are manufactured from high-tensile copper alloy and plated with gold over nickel to keep total contact resistance minimal. When the mating plug is connected, the sockets produce a mechanical wiping action that removes environmental dust and localized oxidation. This durable interface delivers stable signal continuity and low contact resistance across high mating cycles, which is critical for maintaining clear communication in harsh operational settings.
Structural Metal Shielding and J-Type Threaded Hardware
Enclosed in a high-grade aluminum alloy shell, the J30J-15ZKNP5-J provides reliable physical durability along with continuous electromagnetic and radio-frequency shielding. The metal housing prevents external high-frequency electrical fields from leaking into the underlying board layers. The ‘J’ hardware configuration includes built-in threaded jackposts on the connector ears. These threaded inserts accept the long jackscrews of matching plugs, creating a rigid mechanical lock that prevents the plug from disconnecting under dynamic vibration profiles, protecting the underlying board-level solder joints.
Standardized Compliance for Seamless Integration
The J30J-15ZKNP5-J is built in strict accordance with Micro-D military and high-reliability industry specifications, ensuring mechanical and electrical intermateability with compatible 15-pin plugs. This adherence to industry standards reduces prototyping risks and simplifies complex supply chains, allowing for immediate integration into existing hardware networks. Its stable performance across extreme temperature shifts makes it a highly dependable board-level interconnect solution for advanced robotics, naval computing hardware, and industrial testing equipment.
FAQ
What does the 'ZK' signify in the J30J-15ZKNP5-J part number?
What does the 'ZK' signify in the J30J-15ZKNP5-J part number?
The letters ‘ZK’ confirm that the connector is a receptacle (socket type) equipped with female internal contacts designed to accept matching male pins.
What is the functional role of the 'N' suffix?
What is the functional role of the 'N' suffix?
The ‘N’ indicates that the connector is designed for straight vertical PCB mounting, with its pins exiting the rear to insert directly into board through-holes.
What does the 'P5' designation represent?
What does the 'P5' designation represent?
The ‘P5’ refers to a specific terminal grid pattern and pin length variation, optimized to balance board space and reduce trace routing complexities on multi-layer PCBs.
How does the 'J' hardware secure the mated connection?
How does the 'J' hardware secure the mated connection?
The ‘J’ indicates the presence of built-in threaded jackposts in the flange, which allow the jackscrews from the mating plug to lock directly into the receptacle.
Is the insulator material safe for standard board soldering?
Is the insulator material safe for standard board soldering?
Yes, the internal insulator is made from a high-temperature thermoplastic polymer that can withstand industrial wave or hand soldering processes without deformation.
